INSTALLATION INSTRUCTIONS
Product

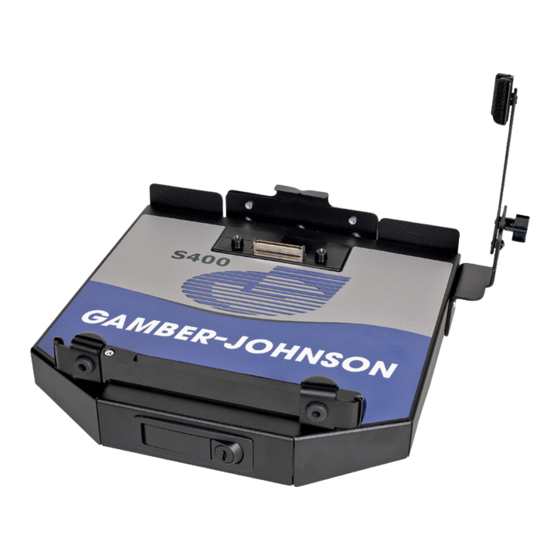

Getac S400 Docking Station
7160-0505-00 & 7160-0505-00-P
7160-0505-02 & 7160-0505-02-P
This instruction sheet is for the following products:
1. 7160-0505-00 & 7160-0505-00-P -- Keyed Alike, No RF.
2. 7160-0505-02 & 7160-0505-02-P -- Keyed Alike, Dual RF.
*These instructions are for the docking station only. For instructions on features, set-up
and operation of the Getac S400 computer, please refer to the manuals provided
with the computer.
**This docking station is designed to be used with a variety of Gamber-Johnson
mounting systems. Installation instructions for Gamber-Johnson products are provided
with each individual product.
Safety is dependent on the proper installation and servicing of this docking station. It
is important to read and follow all instructions before installing the product.
To properly install a Gamber-Johnson docking station you must have a good
understanding of automotive electrical procedures and systems, along with
proficiency in the installation and service of aftermarket vehicle equipment.
There are no adjustments required at anytime of the electrical components within
the docking station. Opening the power/port replication housing will void the
product warranty.
Product Mounting Disclaimer
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© Copyright 2013 Gamber-Johnson, LLC
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
IMPORTANT SAFETY INFORMATION for
INSTALLERS
Revision
Rev. A
Printing Spec:
Figure 1
Form
INST-613
PS-001
Page 1 of 5
