INSTALLATION INSTRUCTIONS
Product
PANASONIC CF19 DOCKING STATIONS,
CRADLE and ACCESSORIES

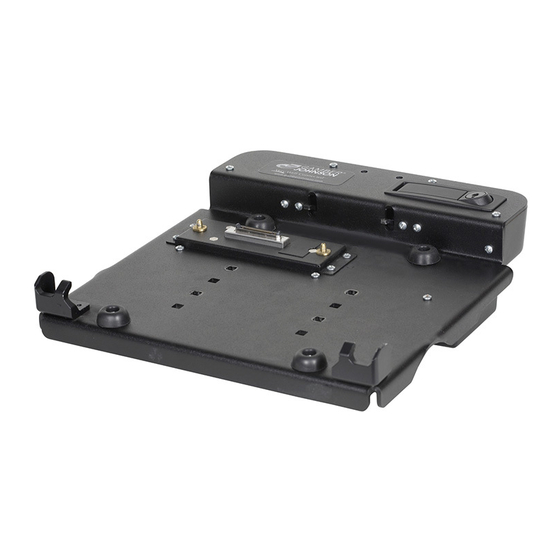

7160-0207: Docking Station (NO/RF)
7160-0207-02: Docking Station (DUAL/RF)
7160-0264-00 (-P): MK4 Docking Station (NO/RF)
7160-0264-02 (-P): MK4 Docking Station (DUAL/RF)
7160-0264-03 (-P): MK4 Docking Station w/Power Adapter (NO/RF)
7160-0264-04 (-P): MK4 Docking Station w/Power Adapter (DUAL/RF)
7160-0264-05: Cradle CF19 MK4
7160-0207 & 7160-0207-02 Docking Stations are compatible with all CF19 & CF18 computers.
7160-0264-00 (-P), 7160-0264-02 (-P), 7160-0264-03 (-P) & 7160-0264-04 (-P) Docking Stations
(Identified byToughbook Certified "Red Check" Label) are compatible only with CF19 MK4
Computers. MK4 Computers are identified by a letter "R" or higher in the computers model
number (i.e. CF-19R...)
7160-0264-05 Cradle CF19 MK4, and all accessories, are compatible with all CF19 Computers.
Panasonic recommends using a Lind Auto Adapter to power the docking station. It can be ordered from
Gamber-Johnson (Item No. 11798).
For instructions on the features, setup and operation of the CF19 computer, refer to the manuals
supplied by Panasonic with the computer.
No adjustments of the electrical components within the electrical enclosure are required. Opening
the enclosure (except to install the Power Cable) will break a seal and void the product warranty.
Conducting a "bench test", (the assembly, interconnection and start-up of all components:
Computer, Docking Station and any customer supplied equipment: printers, modems, scanners, etc.)
is strongly advised to verify all electronic and software issues are resolved.
Suggested flow of work is to:
1. Install and verify the computer is operational.
2. Add customer supplied equipment (printers, modems, scanner etc.)
If installing inside a vehicle, positioning of all mounts and equipment in the vehicle before the actual
install is also recommended to verify that mounting locations are practical.
Drivers: If needed, the software driver for this product can be downloaded from Panasonic's Support
Page: http://panasonic.com/business/toughbook/computer-support-search-downloads.asp
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© copyright 2011 Gamber-Johnson, LLC
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Revision
Rev. H
7160-0215: LED Assembly
7160-0049: CF19 Screen Support
7160-0073: CF19 Wedge
Printing Spec: PS-001
Form
INST-372
1 0F 7
Advertisement
Related Manuals for Gamber Johnson CF19
Summary of Contents for Gamber Johnson CF19
-
Page 1: Installation Instructions
Panasonic recommends using a Lind Auto Adapter to power the docking station. It can be ordered from Gamber-Johnson (Item No. 11798). For instructions on the features, setup and operation of the CF19 computer, refer to the manuals supplied by Panasonic with the computer. - Page 2 External PANASONIC CF19 DOCK Antenna Top View Connectors Toughbook Certified Label Vibration See Sheet 1 for computer Damper compatibilitty statement Alignment Latch Mechanism Multi I/O Latch Connector Front Security Lock Alignment Guide Vibration Damper Vibration USB Port Damper Power ON LED...
- Page 3 3 fig 4 #6-32 x 1/4-in screw & power cable cover Installing CF19 Computer into the Dock Step 1: Make sure the sliding door, located on the bottom surface of the computer, has been opened to expose the computers' docking connector (fig 5).
- Page 4 ReLocating Computer Carrying Strap The CF19 computer is supplied, from Panasonic, with a carrying strap attached to the back edge of the computer case. The computer can be installed into the dock with the strap attached to the back or front edge, but the strap will need to be unhooked when installed on the front of the comptuer, allowing each end of the strap to hang down over the sides of the dock.
- Page 5 NOT LIT: PC not installed or PC is OFF, Standby or Hibernation. Vehicle Mounted Docks CF19 vehicle docks and cradle are designed to be used with Gamber-Johnsons' motion attachments, poles and vehicle bases. See below for mounting dock to DS, MCS or 0-90 Clevis with (4) .25-20 x .75 long carriage bolts.
- Page 6 CF19 Dock as shown. 7160-0073: Work Table Wedge The CF19 work table wedge has rubber pads to provide a mobile slip free mounting surface. Four .281 square holes on the bottom surface allow mounting the work table wedge permanently to a surface if required.
- Page 7 LED Assembly 7160-0215: LED Assembly Activation Button Position the LED assembly over two holes in the back cover, and attach using the #6-32unc x .38 screws that were provided with the LED assembly. The LED is powered using the red and black wires on the back of the light base.
