INSTALLATION INSTRUCTIONS
Product
7160-1418

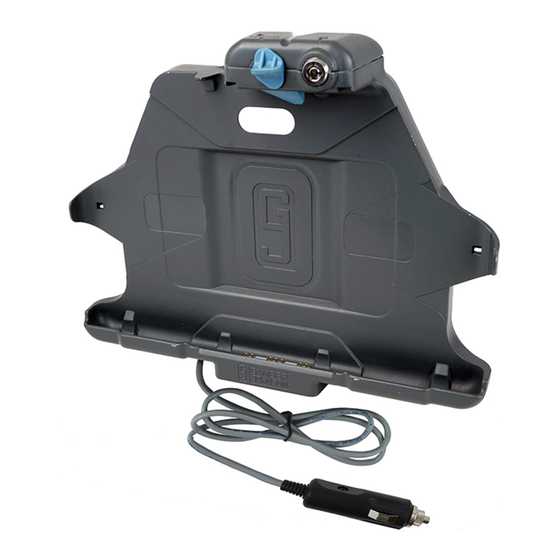

SAMSUNG TAB ACTIVE PRO DOCKING STATION
This instruction sheet is for the Samsung Galaxy Tab Active Pro docking station only. For
instructions on features, set-up, and operation of the computer, please refer to the manual
provided by Samsung with the computer.
This docking station is designed to be used with a variety of Gamber-Johnson mounting
systems. Installation instructions for other Gamber-Johnson products are provided with each
individual product.
This instruction sheet is for the following products:
Item No. 7160-1418-00 Bare Wire (Auto)
Item No. 7160-1418-20 Cigarette Adapter
Item No. 7160-1418-30 MP205 Connector
Item No. 7160-1418-40 Charging Only
Item No. 7160-1418-50 2.5mm Connector
Item No. 7160-1418-90 Non-Powered Cradle
Power Adapters are not needed in most applications as this docking station can handle
10-40V input. Isolated and AC Power Adapters and can be ordered for the MP205/2.5mm
dock from Gamber-Johnson seperately. These are available as a seperate KIT part
number.
7300-0435 - AC
7300-0447 - Isolated (12-32 Vdc input)
7300-0473 - Isolated (20-60 Vdc input)
7300-0448 - Isolated (70-110 Vdc input)
7300-0472 - AC
7300-0466 - Isolated (12-32 Vdc input)
7300-0467 - Isolated (20-60 Vdc input)
7300-0418 - Isolated (70-110 Vdc input)
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
(100-264 Vac input) - KIT # 7170-0697-31
(100-264 Vac input) - KIT # 7170-0697-41
Revision
Rev. F
- KIT # 7170-0697-32
- KIT # 7170-0697-33
- KIT # 7170-0697-34
- KIT # 7170-0697-42
- KIT # 7170-0697-43
- KIT # 7170-0697-44
Form
INST-941
Printing Spec: PS-001
1 / 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7160-1418 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Gamber Johnson 7160-1418 Series

  • Page 1 INSTALLATION INSTRUCTIONS Revision Form Product INST-941 Rev. F 7160-1418 SAMSUNG TAB ACTIVE PRO DOCKING STATION Printing Spec: PS-001 This instruction sheet is for the Samsung Galaxy Tab Active Pro docking station only. For instructions on features, set-up, and operation of the computer, please refer to the manual provided by Samsung with the computer.
  • Page 2: Pre-Installation Recommendations

    PRE-INSTALLATION RECOMMENDATIONS Conduct a "Bench Test" Gamber-Johnson strongly advises a "bench test" be conducted to verify all electronic and software issues are resolved prior to installation: Make sure the computer is operational by itself. Insert computer into the docking station and verify that the computer is operating in the dock.
  • Page 3: Feature Identification

    FEATURE IDENTIFICATION Release Button Slam Latch Barrel Key Lock Upper Walls Provides docking guidance and connector protection, prevents mis-docking Lower Walls Contact Friendly Edges GJ Handstrap compatible Docking Connector Camera Access (on Tablet) VESA 75mm Hole Pattern 1/4-20 x 0.500" hardware provided USB-C Power Port Blocker Part#/Serial# Label...
  • Page 4: Port Identification

    PORT IDENTIFICATION USB2.0 (Fast Charging) 1500 mA NOT INCLUDED WITH -40/90 Power Input: 10-40 Vdc* 7160-1368-40 (30 Watts Minimum) Bare Wire Lead (7160-1418-00) (Red/White = VDD , Black = Ground) Cigarette Adapter (7160-1418-20) MP205 Connector (7160-1418-30) Bare Wire Lead (7160-1418-40) *12-24Vdc USB-C POWER PORT 2.5mm Connector (7160-1418-50)
  • Page 5: Operation - Docking

    DOCKING AND UNDOCKING THE COMPUTER OPERATION - DOCKING Rotate Top 1. Insert the bottom of the tablet into the bottom cavity of the dock. The walls on the dock will guide the tablet into place. 2. Rotate the top of the tablet into the dock, overcoming the resistance until the Release Button returns to the "Latched"...
  • Page 6 Regulatory Certification Information Regulatory Model #: 7160-1418 GJ Model #'s & Description: 7160-1418-00 Dock-Samsung Tab Active Pro-Bare Wire 7160-1418-20 Dock-Samsung Tab Active Pro-Cigarette Adapter 7160-1418-30 Dock-Samsung Tab Active Pro-MP205 7160-1418-40 Dock-Samsung Tab Active Pro-Charging Only 7160-1418-50 Dock-Samsung Tab Active Pro-2.5mm 7160-1418-90 Cradle-Samsung Tab Active Pro Certifications:...
