INSTALLATION INSTRUCTIONS
Product
7160-1882-XX

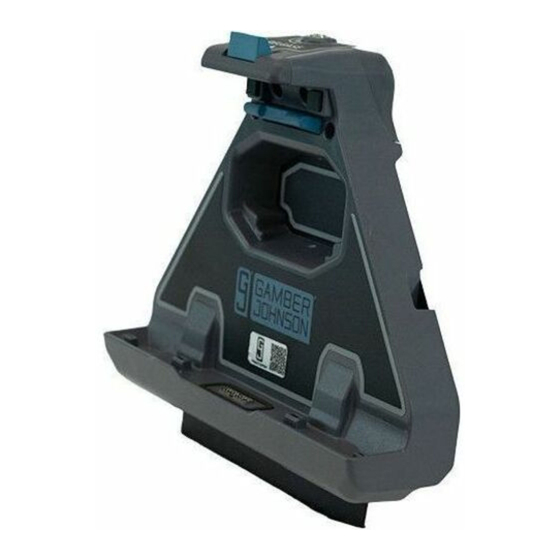

DELL 7030 TABLET DOCKING STATION
This instruction sheet is for the Dell 7030 Tablet Docking Station. For instructions on
features, set-up, and operation of the Dell 7030 Tablet, please refer to the manual provided
by Dell with the Tablet.
This Docking Station is designed to be used with a variety of Gamber-Johnson mounting
systems. Installation instructions for other Gamber-Johnson products are provided with
each individual product.
This instruction sheet is for the following products:
Item No. 7160-1882-00
Item No. 7160-1882-10
A Dell certified power adapter must be used to power the docking station, the below power
adapter are sold separately unless ordered through a KIT.
(See Page 4 For Isolated Power Adapter Options)
7300-0468 - 11-16VDC Input - Available with the Docking Stations as a KIT: 7170-1053-00 (No
HDMI) or 7170-1053-10 (With HDMI)
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brake lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© Copyright 2023 Gamber-Johnson, LLC
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Lite PCB (No HDMI)
Full PCB (With HDMI)
Revision
Rev A
INST-1141
Printing Spec: PS-001
Form
1 / 6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Gamber Johnson 7160-1882 Series
Summary of Contents for Gamber Johnson 7160-1882 Series
- Page 1 INSTALLATION INSTRUCTIONS Product Revision Form Rev A INST-1141 7160-1882-XX DELL 7030 TABLET DOCKING STATION Printing Spec: PS-001 This instruction sheet is for the Dell 7030 Tablet Docking Station. For instructions on features, set-up, and operation of the Dell 7030 Tablet, please refer to the manual provided by Dell with the Tablet.
- Page 2 PRE-INSTALLATION RECOMMENDATOINS Conduct a "Bench Test" Gamber-Johnson strongly advises a "bench test" be conducted to verify all electronic and software issues are resolved prior to installation: Make sure the computer is operational by itself. Insert computer into the docking station and verify that the computer is operating in the dock.
- Page 3 DELL 7030 TABLET DOCKING STATION FEATURE IDENTIFICATON Lock Release Latch Hand Strap & Magnetic Mount Clearance Connector Stylus Holder Connector Gasket Guide Pins Mounting Studs 1/4-20 x 0.90" Serial Label Mounting HW Provided Contains: Product Information, Recommended Torque = 15in/lbs MFG Date, Serial Number, Ect.
-
Page 4: Cable Routing
ISOLATED POWER ADAPTERS Isolated Power Adapters can be purchased directly from Gamber Johnson or as a KIT where they are included with the docking station: 7300-0305 - 12-32v Input KIT = 7170-1054-00 7300-0306 - 20-60v Input KIT = 7170-1054-10 7300-0622 - 72-110v Input... - Page 5 DOCKING AND UNDOCKING THE TABLET TO DOCK THE TABLET Insert the bottom of the tablet into the docking station. Figure 1 Rotate the top of the tablet under the top latch until the tablet is resting inside the main housing. The latch will spring down in front of the tablet to hold it in place.
- Page 6 Regulatory Certification Information Regulatory Model #: 7160-1882 GJ Model #'s AND Description: 7160-1882-00 DOCK - DELL 7030 TABLET LITE PCB (No HDMI) 7160-1882-10 DOCK - DELL 7030 TABLET FULL PCB (With HDMI) Descriptions: Dock - Dell - 7030 Certifications: • EN 55032: 2015/A11:2020 Class B •...
