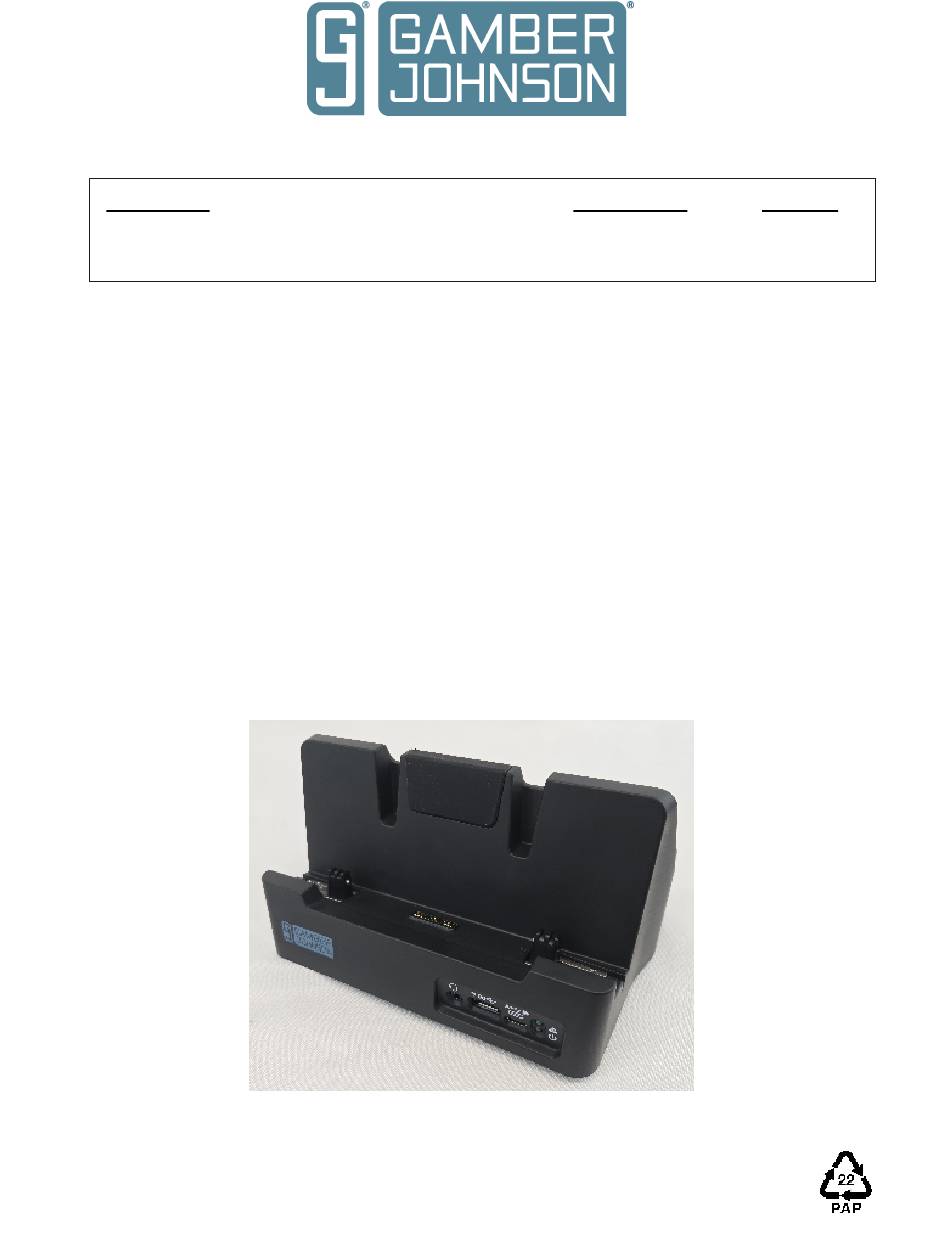

INSTALLATION INSTRUCTIONS
Product
7160-1997
Dell Tablet Desktop Docking Station
This instruction sheet is for the Gamber-Johnson Dell Tablet Docking Station
only. For instructions on features, set-up, and operation of any computer or
connected device, please refer to the manual provided with those products.
This instruction sheet is for the following products:
Item No. 7160-1997-00 Dell Desktop Dock, No Power Adapter
Item No. 7160-1997-10 Dell Desktop Dock, With Power Adapter
The Desktop Dock is designed to handle a 9-36Vdc input and requires a Dell
certified power adapter. The standard use voltage is 19Vdc and a minimum 5A (90
watt). Gamber-Johnson offers the following Power Adapters to power the Desktop
Dock if needed in other enviroments. These Power Adapters can be ordered from
Gamber-Johnson separately.
7300-0752 - AC
Separate AC Power Cords are Available for Purchase: 21963 = UK 21964 = EU
7300-0713 - Auto
7300-0714 - Auto
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brake lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
© Copyright 2024 Gamber-Johnson, LLC
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
(100-240Vac input, 19.5v 6a Output), 130w, US plug
(11-16Vdc input, 20Vdc 6A output) Auto Adapter Input
(11-16Vdc input, 20Vdc 6A output) Bare Wire Input
Revision
Rev B
INST-1217
Printing Spec: PS-001
Form
1 / 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7160-1997-00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gamber Johnson 7160-1997-00

Summary of Contents for Gamber Johnson 7160-1997-00

  • Page 1 This instruction sheet is for the following products: Item No. 7160-1997-00 Dell Desktop Dock, No Power Adapter Item No. 7160-1997-10 Dell Desktop Dock, With Power Adapter The Desktop Dock is designed to handle a 9-36Vdc input and requires a Dell certified power adapter.

  • Page 2: Pre-Installation Recommendations

    Docking Drivers are required for some ports of this docking station to work. NOTE: Most (or all) drivers will automatically be installed if the device being used has the most up-to- date Windows updates. Links to any required drivers are available on the Gamber Johnson website: www.gamberjohnson.com - Support - Docking Drivers •...

  • Page 3: Feature Identification

    FEATURE IDENTIFICATION Rear Support Pad Tablet Stylus Clearence Docking Connector (2x) Tablet Adjustment Tabs Front Ports (See Page 4) Rear Ports (see Page 4) Kensington Lock Location 3 / 8...

  • Page 4: Port Identification

    PORT IDENTIFICATION Headphone/Aux Jack Power and (3.5mm) Docking Indicators USB-A 3.0 USB-C 3.0 (See Page 5) (1.5A) (1.5A) (Data, Charging, or Display) Ethernet (RJ45) 2x USB-A 3.0 2x HDMI 1.4 NOTE: Only ONE Power (1gb) Input Can be Used at a Time (1.5A) (4k Max Output) Serial (RS232)
  • Page 5 USING THE DESKTOP DOCK OPERATION - Power Upon applying power, the Power Indicator Light (lower light) will be green. If there is no light, there is no power to the desktop dock. When the device is docked, the Docked Indicator Light (upper light) will be blue. If there is no light, verify there is no debris or damage around the POGO pins of the docking station or device.
  • Page 6 DOCKING DEVICE INTO DOCKING STATION Docking the Device Set the adjustment tabs to the required position for the 7030 or 7230 tablet (See Page 5) With the tablet screen facing forward, line up the center of the tablet with the center of the docking station.

  • Page 7: Specifications

    DESKTOP DOCK DETIALS SPECIFICATIONS 9-36Vdc Power Input Range 12Vdc Voltage Rating Current Rating 8.26" (209.8mm) W x 4.27" (108.5mm) H x 5.56" (141.2mm) D Dimensions 3.60 lbs (1.63kg) Weight 0 C to 50 C (32 F to 122 F) Operating Temperature -20 C to 70 C (-4 F to 158 F) Storage Temperature 4k Max Display...
  • Page 8 REGULATORY CERTIFICATION INFORMATION Regulatory Model #: 7160-1997 GJ Model #s & Description: 7160-1997-00 Dell Desktop Docking Station - No Power Adapter 7160-1997-10 Dell Desktop Docking Station - With Power Adapter Certifications: • EN 55032: 2015 / AC: 2016, Class B •...
