  • Page 1 SLC310 Installation and Service Manual Version 1.2...

  • Page 2: Table Of Contents

    ISO 9001:2000 quality management system. Sealite lanterns comply with requirements of the US Coast Guard in 33 CFR part 66 for Private Aids To Navigation. By taking a few moments to browse through this booklet, you will become familiar with the versatility of your lantern, and be able to maximise its operating function.

  • Page 3: Operating Principle

    Precision Construction Commitment to investing in the design and construction of injection-moulded parts including optic lenses, light bases and a range of other components ensures that all Sealite products are of a consistent and superior quality. Optical Performance Sealite manufactures a range of marine LED lenses moulded from multi-cavity dies.

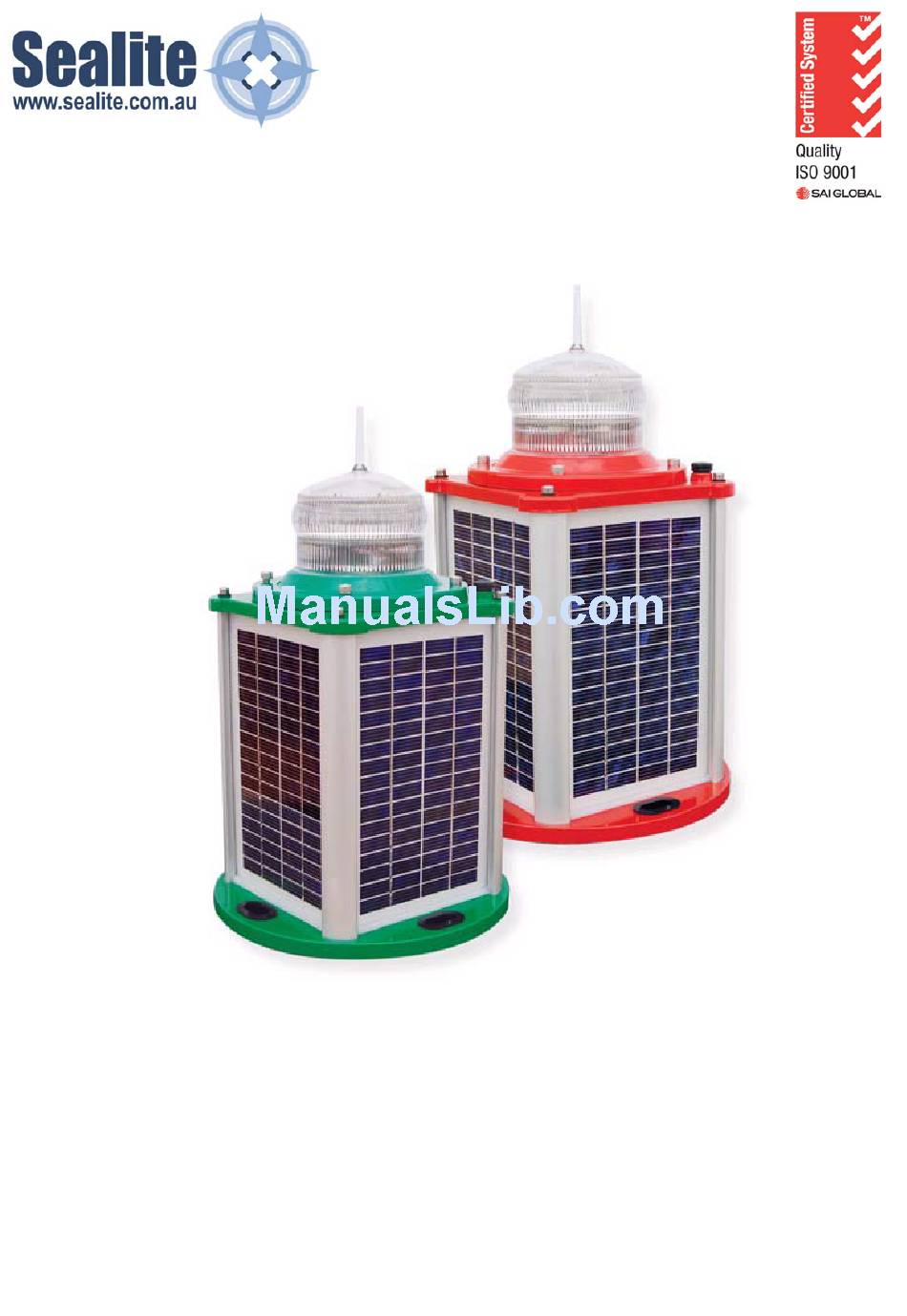

  • Page 4 SLC310 Model The Sealite SLC310 compact 3nm solar marine lantern is completely self-contained, and specifically designed for a range of low maintenance applications. The light boasts a large internal battery compartment, a 20 LED flasher unit, and 4 premium-grade solar modules mounted to collect sunlight at all angles.

  • Page 5: Slc310

    SLC310 Lens Assembly Battery 12v 7.5Ah Battery Clamp Washer M5 Wing Nut M5 O-Ring, ∅130 x 4.0 Socket Head Screw M6 x 16 Protective Sleeve for Base Fig 2. SLC310 Solar Marine Lantern components Latest products and information available at www.sealite.com.au...
  • Page 6 9. Ensure that the unit is bolted to an even, flat surface. Selecting an Intensity Setting Pulse settings on Sealite lanterns operate via DIP switches, located near the rotary switches on the flasher unit. The pulse settings may be used to reduce the power consumption and intensity of the lantern.

  • Page 7: Maintenance And Servicing

    Replacing the battery The SLC310 has an internal battery compartment which provides the user with the ability to change the battery after years of operation (see figure 2 on page 5). 1. Remove the four socket-head screws on the top lens assembly and open.

  • Page 8: Flash Codes

    It is best to operate at the lowest duty cycle appropriate to the actual needs of the application. Please note, Sealite models will retain full autonomy in normal operating conditions with duty-cycles up to approximately 30%. In applications whereby duty cycles exceed this limit, a reduction in lantern intensity is recommended.
  • Page 9 OC 4 S FL 4.3 S FL 5 S FL 5 S FL 5 S FL 5 S FL 5 S FL 5 S ISO 5 S LFL 5 S OC 5 S Latest products and information available at www.sealite.com.au...
  • Page 10 OC 10 S FL 12 S 10.8 FL 12 S LFL 12 S 10.0 FL 15 S 14.0 LFL 15 S 11.0 OC 15 S 10.0 LFL 20 S 18.0 FL 26 S 25.0 Latest products and information available at www.sealite.com.au...
  • Page 11 FL (2) 12 S 10.0 FL (2) 12 S FL (2) 15 S 11.0 FL (2) 15 S 11.0 Q (2) 15 S 13.8 FL (2) 20 S 15.0 FL (2) 25 S 22.0 Latest products and information available at www.sealite.com.au...
  • Page 12 FL (2+1) 15 S 10.1 FL (2+1) 15 S VQ (3) 15 S 13.7 FL (3) 20 S 12.5 FL (3) 20 S 15.5 FL (3) 20 S 15.2 FL (3) 20 S 15.0 Latest products and information available at www.sealite.com.au...
  • Page 13 Q (6) + LFL 15 S VQ (6) + LFL 15 S SWITCH FLASH CODE VQ (9) 10 S VQ (9) 10 S Q (9) 15 S Q (9) 15 S Q (9) 15 S Latest products and information available at www.sealite.com.au...
  • Page 14 MO (A) 10 S MO (D) 10 S MO (A) 15 S 11.0 MO (U) 15 S 11.8 MO (U) 15 S 10.7 MO (U) 15 S 10.1 MO (B) 15 S 10.5 Latest products and information available at www.sealite.com.au...

  • Page 15: Troubleshooting

    • Expose lantern to direct sunlight and monitor operation for Lantern will not operate for the entire night. several days. Sealite products typically require 1.5 hours of direct sunlight per day to retain full autonomy. From a discharged state, the lantern may require several days of operational conditions to 'cycle' up to full autonomy.

  • Page 16: Sealite Lantern Warranty

    8. Solar modules are covered by individual manufacturers’ warranty. Information in this manual is subject to change without notice and does not represent a commitment on the part of the vendor. Sealite products are subject to certain Australian and world-wide patent applications.
