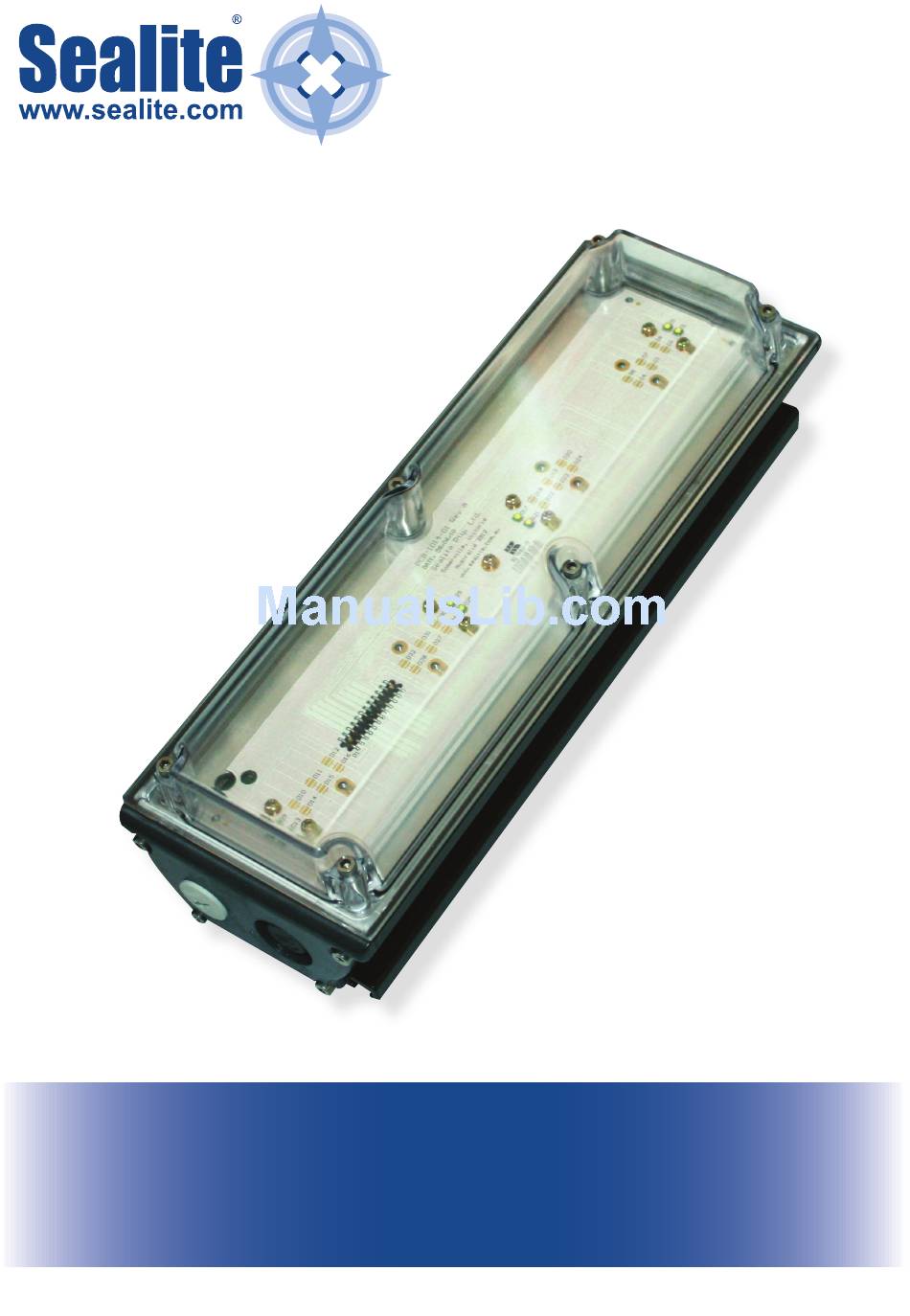

- Page 1 AL-01 Outdoor LED Luminaire Installation & Service Manual Version 2.0...
- Page 2 AL-01 Outdoor LED Luminaire UV-stabilised LEXAN® polycarbonate lens containing 8 ultra-high intensity LEDs for optimal area illumination Positive o-ring (>120 degrees) sealing Adjustable mounting along 78mm parallel channels Membrane vent...
-
Page 3: Table Of Contents
Maintenance & Servicing ..............Page 9 Troubleshooting ..................Page 9 Sealite LED Light Warranty ..............Page 10 Version No. Description Date Approved Manual launch July 2011 C. Sweatman Update: Spec Table & Code Change May 2012 J. Dore Latest products and information available at www.sealite.com... -
Page 4: Introduction
Precision Construction Commitment to investing in the design and construction of injection-moulded parts including optic lenses, light bases and a range of other components ensures that all Sealite products are of a consistent & superior quality. Optical Performance Sealite manufactures a range of marine LED lenses moulded from multi-cavity dies. Complex shapes such as the SL70, BargeSafe™... -
Page 5: Al-01 Model
AL-01 Outdoor LED Luminaire AL-01 Model Sealite’s universal mains powered outdoor LED luminaire provides users with the perfect solution for lighting locations such as boat launching ramps, shelters, car parks and maintenance areas. The assembly uses the latest technologies in Light Emitting Diodes (LEDs) as a light source, and provides excellent illumination over a wide projected area. - Page 6 EN61000-6-3:1997. EN61000-6-1:1997 Quality Assurance ISO9001:2008 Waterproof IP68 Intellectual Property Trademarks SEALITE® is a registered trademark of Sealite Pty Ltd Warranty * 3 year Options Available • Setable Timer Light Control • External ON/OFF Switch • Specifications subject to change or variation without notice...
-
Page 7: Spectral Characteristics
ZONAL LUMENS AND PERCENTAGES Zone Lumens % Lamp % Luminaire 0-30 24.3 0-40 40.9 0-60 1054 77.5 0-90 1352 99.4 40-90 58.5 60-90 21.9 90-180 0-180 1360 100.0 Light Output Ratio = N/A Latest products and information available at www.sealite.com... -
Page 8: Installation & Assembly
Unpack your area light and check the contents of the package. Verify that all components and hardware have been received. Please contact your Sealite office if any components are missing or damaged. Installation Information Only persons authorized by legislation or licensed electricians should install this luminaire. -
Page 9: Maintenance & Servicing
Outdoor LED Luminaire Maintenance & Servicing Designed to be maintenance free, the AL-01 requires minimal attention, however to help ensure the life of your Sealite product and for optimal light output please ensure the light remains clean. Using a cloth and warm soapy water, wipe off any foreign matter before rinsing with fresh water. -
Page 10: Sealite Led Light Warranty
2. Online Registration - please complete the Online Registration Form at; www.sealite.com Sealite Pty Ltd will repair or replace your LED light in the event of electronic failure for a period of up to three years from the date of purchase. - Page 11 AL-01 Outdoor LED Luminaire 3. The customer must give Sealite Pty Ltd notice of any defect with the product within 30 days of the customer becoming aware of the defect. 4. Rechargeable batteries have a limited number of charge cycles and may eventually need to be replaced.
- Page 12 (up to 3mt in diameter) Area Lighting Mooring Systems & Accessories Head Office Sealite Pty Ltd 11 Industrial Drive Somerville, Vic 3912 Australia Tel: +61 3 5977 6128 Fax: +61 3 5977 6124 Email: info@sealite.com Internet: www.sealite.com Latest products and information available at www.sealite.com...
