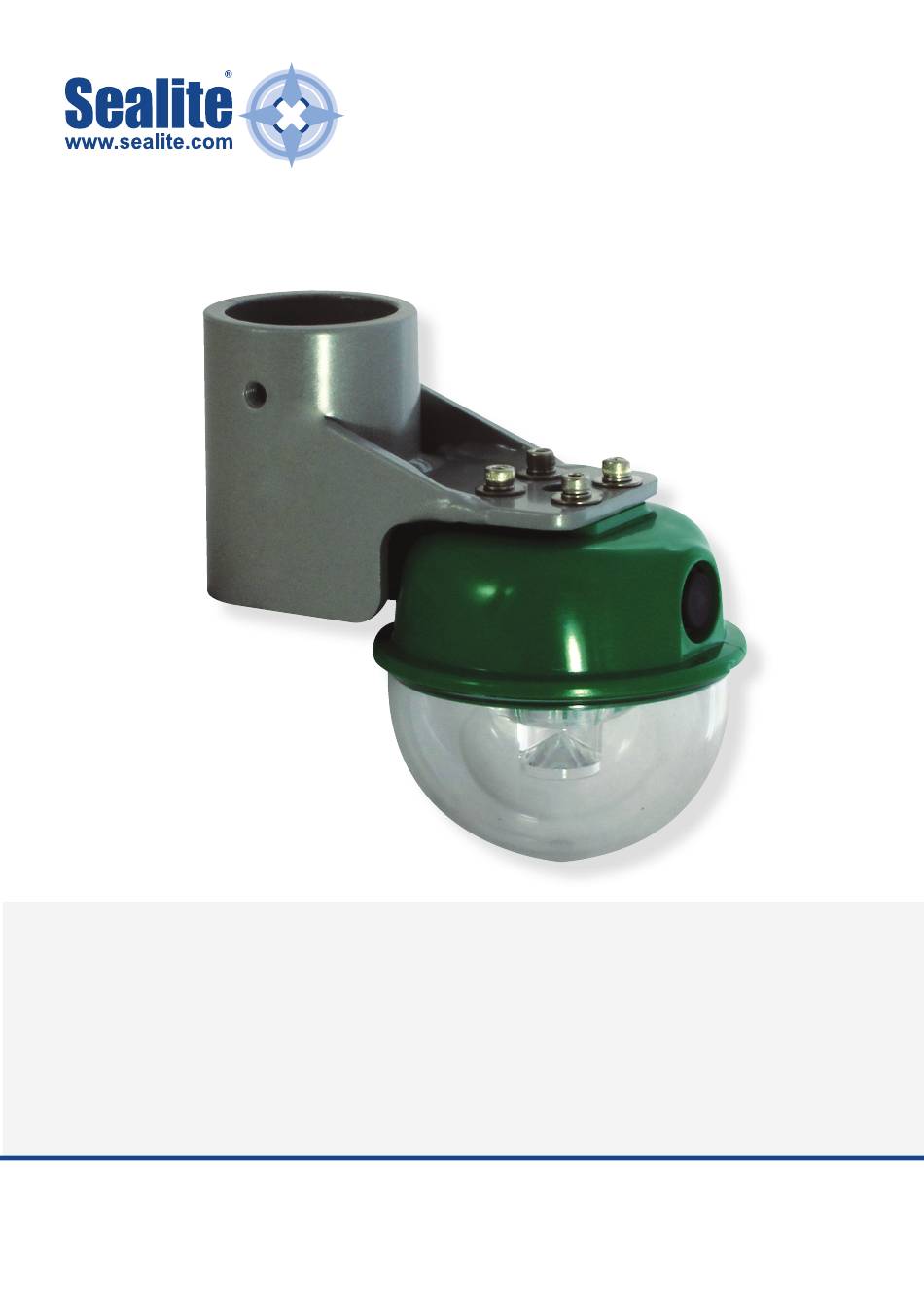

- Page 1 SL-BR DC Model Up to 4NM Bridge Light INSTALLATION & SERVICE MANUAL V1-3...
- Page 2 Version No. Description Date Approved Author Manual Launch September 2015 D. Tomaszewicz Update: Contact details January 2016 J. Dore Footer January 2016 B.Gielen Technical Specification Update March 2020 M.Dutka M.Nicholson...
-
Page 3: Table Of Contents
Charging the Battery ..........................Page 9 Optional GPS Synchronisation .......................Page 10 Optional GSM Monitoring & Control System ................ Page 11 Maintenance & Servicing ........................Page 11 Trouble Shooting ............................Page 11 Sealite LED Light Warranty ....................... Page 11 Latest products and information available at www.sealite.com... -
Page 4: Introduction
ISO9001:2015 quality management system. Sealite lanterns comply with requirements of the US Coast Guard in 33 CFR part 66 for Private Aids To Navigation. By taking a few moments to browse through this booklet, you will become familiar with the versatility of your lantern, and be able to maximise its operating function. -
Page 5: Br Bridge Light: Dc Model
The light is available as a 180o sectored red model or 360o green model and comes fixed-on as standard. The fixtures are also available with a range of factory-set flash characteristics and sectoring requirements to suit local regulations. Latest products and information available at www.sealite.com... - Page 6 SL-BR Post mount Automatic night Lens and enclosure activation moulded from UV-stabilised LEXAN ® LED optic polycarbonate Model Description 12.5 12.5 M5 Brass insert 74.5 Material/Quantity General Tolerances SL Bridge Light Base Linear Angular Radii ±1.2 ±1.0° ±2.0 ±0.3 ±0.5° ±0.5 X.XX ±0.1...
- Page 7 Subject to standard terms and conditions Waterproof IP68 Intellectual Property Patents US Pat. No. 6,667,582. AU Pat. No. 778,918 Trademarks SEALITE is a registered trademark of Sealite Pty Ltd ® Warranty * 3 years Options Available • Mounting assemblies • Solar/battery systems • Light sectoring •...
-
Page 8: Safety Information
Unpacking, Installation, Wiring & Setup Unpacking Unpack all hardware and inspect for damage. If there is any damage, please contact your Sealite Office. Retain original packing material for possible future use in shipping. Installation & Wiring Before proceeding with installation or service, make sure the following conditions are met: •... -
Page 9: Charging The Battery
3. To test, place dark cover (towel or jacket) on top of light to activate sensor, light will come on within one minute. 4. Ensure that the lantern is secured to the mounting unit. Latest products and information available at www.sealite.com... -
Page 10: Optional Gps Synchronisation
Optional GPS Synchronisation The light may be fitted with GPS and provide the user with the ability to install independently operating lanterns that all flash in synchronisation. Note: Flash settings must be specified at the time of order. No additional power supplies, aerials or control systems are required, and with its microprocessor- based system, the GPS option is specifically designed to provide maximum reliability and performance over a wide range of environmental conditions. -
Page 11: Optional Gsm Monitoring & Control System
Maintenance & Servicing Designed to be maintenance free the Bridge Lights require minimal attention, though the following maintenance and servicing information is provided to help ensure the life of your Sealite product. • Occasional cleaning of the dome lens may be required using a cloth and warm soapy water. - Page 12 We believe technology improves navigation sealite.com info@sealite.com Sealite Pty Ltd Sealite Asia Pte Ltd Sealite United Kingdom Ltd Sealite USA LLC Australia Singapore +61 (0)3 5977 6128 +65 6908 2917 +44 (0) 1502 588026 +1 (603) 737 1311...
