The machine will SWITCH OFF at the first time set for stop-
ping the coffee maker (see chapter on PROGRAMMING
and paragraph on PROGRAMMING ON – OFF).

NOTE
the machine can be switched on or off manually as
indicated in the previous paragraph.

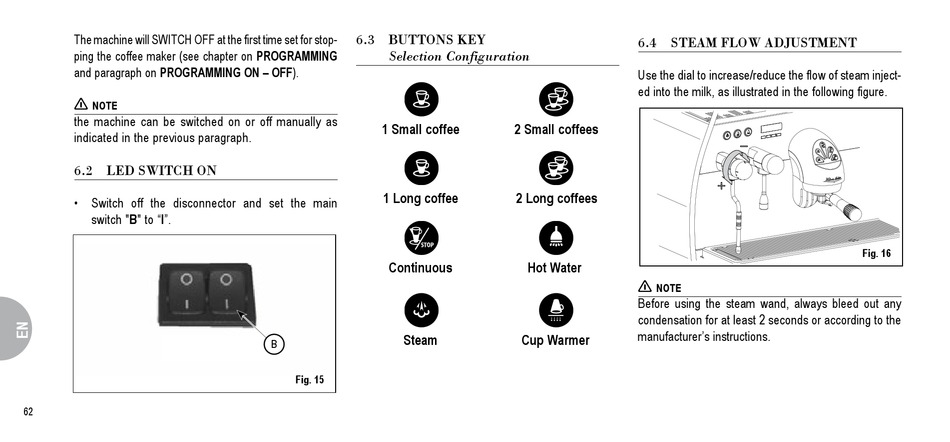

6.2 LED SWITCH ON

• Switch off the disconnector and set the main
switch "B" to "I".
62
6.3 BUTTONS KEY
Selection Configuration
1 Small coffee
1 Long coffee
Continuous
Steam
B
Fig. 15

6.4 STEAM FLOW ADJUSTMENT

Use the dial to increase/reduce the flow of steam inject-
ed into the milk, as illustrated in the following figure.
2 Small coffees
2 Long coffees
Hot water

NOTE
Before using the steam wand, always bleed out any
condensation for at least 2 seconds or according to the
manufacturer's instructions.
Cup warmer
Fig. 16
