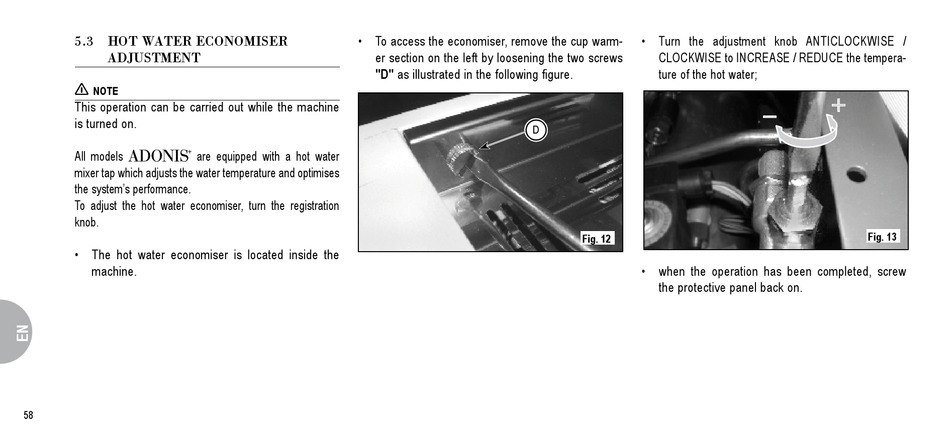

5.3 HOT WATER ECONOMISER
ADJUSTMENT
NOTE
This operation can be carried out while the machine
is turned on.
All models
are equipped with a hot water
mixer tap which adjusts the water temperature and optimises
the system's performance.
To adjust the hot water economiser, turn the registration
knob.
• The hot water economiser is located inside the
machine.
58
• To access the economiser, remove the cup warm-
er section on the left by loosening the two screws
"D" as illustrated in the following figure.
D
• Turn the adjustment knob ANTICLOCKWISE /
CLOCKWISE to INCREASE / REDUCE the tempera-
ture of the hot water;
Fig. 12
• when the operation has been completed, screw
the protective panel back on.
Fig. 13
