Summary of Contents for Eternal Lighting EchoICON

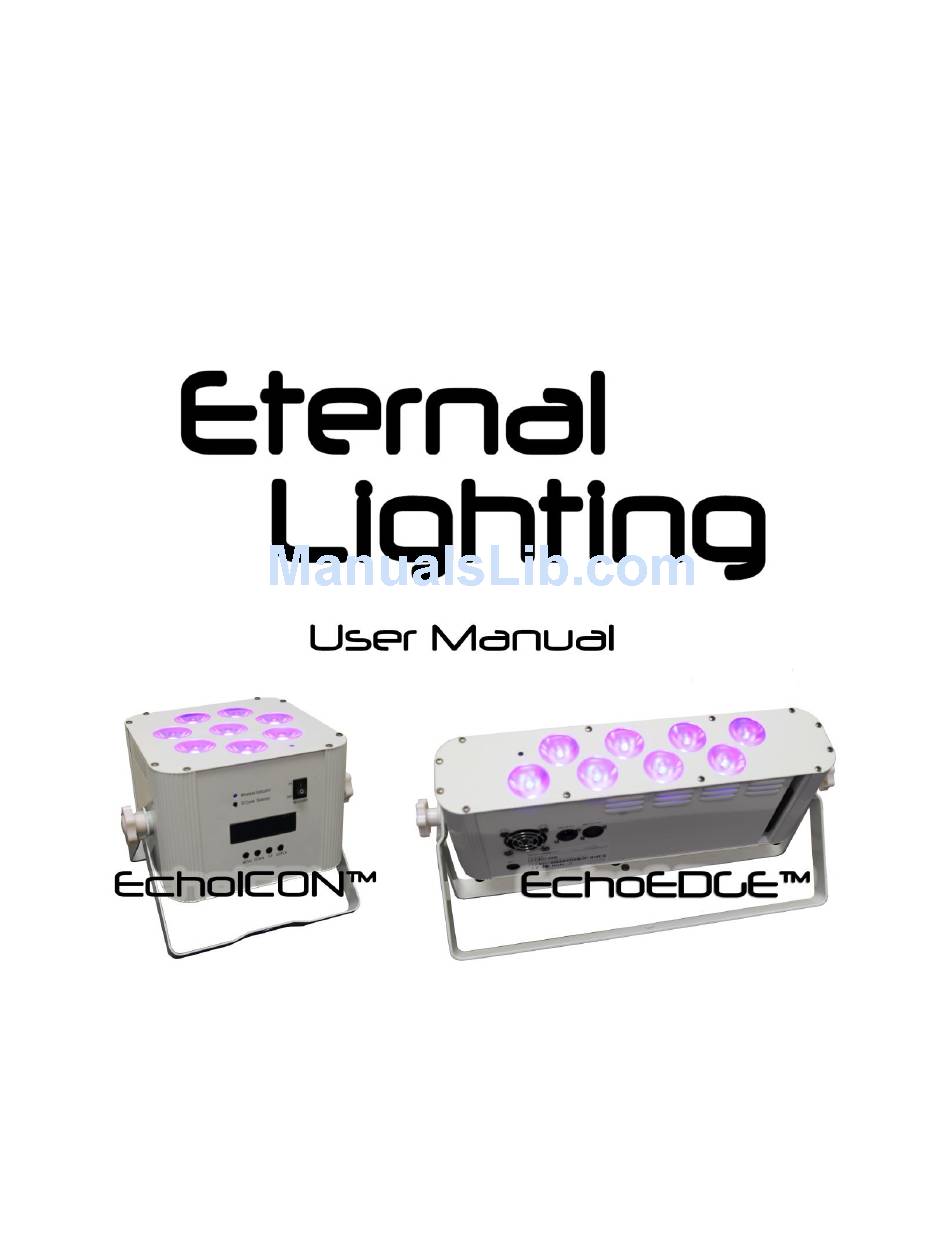

- Page 1 EchoICON and EchoEDGE Manual...
- Page 2 Do not return this unit to your dealer without first contacting them. Contents in each package: (1) EchoICON or EchoEDGE , (1) IEC power cord, (1)Bracket, (2) knobs, (4) washers. Securely, plug the IEC power...
- Page 3 Wireless DMX. (Compatible with CUBE5, ElitePar5, CUBEecho & EchoEDGE) Dual Mount Bracket for hanging or sitting on the floor Rubber feet for non intrusive lay flat design. PHOTOMETRICS: 19,345 LUX @ 1meter (Full Power) EchoICON and EchoEDGE Manual...
- Page 4 Custom Color B Custom Color C SHND Custom Color D Custom Color E Sound Fade 00-10 Boot time Operating Time Work time Total Operating Time Battery Capacity Battery Test Full on LCD Display time 10s/11s/12s…60s IR INFA Enable/Disable EchoICON and EchoEDGE Manual...
- Page 5 ID Code Selector – Red (1), Green (2), Yellow (3), Blue (4), Purple (5), Cyan (6), White (7) To Master/Slave the EchoEDGE or EchoICON, put one fixture in Master Mode and the rest of the fixtures in Slave Mode. Turn on the Receiver button and put all fixtures on same ID Code Color.
- Page 6 Red = red color GREE = green color BLUE = blue color WHIT = white color AMBE = amber color PINK = pink color ORG = orange color GYAN = cyan color PURP = UV color EchoICON and EchoEDGE Manual...
- Page 7 DMX Values and Functions: DMX Cannel Mode 3ch / 4ch / 5ch / 6ch / 8ch / 11ch / 13ch 3CH Mode EchoEDGE & EchoICON Value RGBWA+UV 8pc 18 Watt x 6in1 0-255 RED dimmer (0-255) 0-255 GREEN dimmer (0-255)
- Page 8 6CH Mode EchoEDGE & EchoICON Value RGBWA+UV 8pc 18 Watt x 6in1 0-255 RED dimmer (0-255) 0-255 GREEN dimmer (0-255) 0-255 BLUE dimmer (0-255) 0-255 WHITE dimmer (0-255) 0-255 AMBER dimmer (0-255) 0-255 Ultra Violet/I dimmer(0-255) 8CH Mode EchoEDGE & EchoICON...
- Page 9 11CH Mode EchoEDGE & EchoICON Value RGBWA+UV 8pc 15 Watt x 6in1 0-255 RED dimmer (0-255) 0-255 GREEN dimmer (0-255) 0-255 BLUE dimmer (0-255) 0-255 WHITE dimmer (0-255) 0-255 AMBER dimmer (0-255) 0-255 R, G, B, W dimmer (0-255) 0-255...
- Page 10 R, G, B,W, A STROBE from slow to fast (0-255) CH13 0-255 SOUND 1 (Off 0-15, ON 16-100 Color change, Fade and Strobe, ON 101-255 Color Change & Fade) For more information, please contact Support by email at support@eternallighting.com EchoICON and EchoEDGE Manual...
