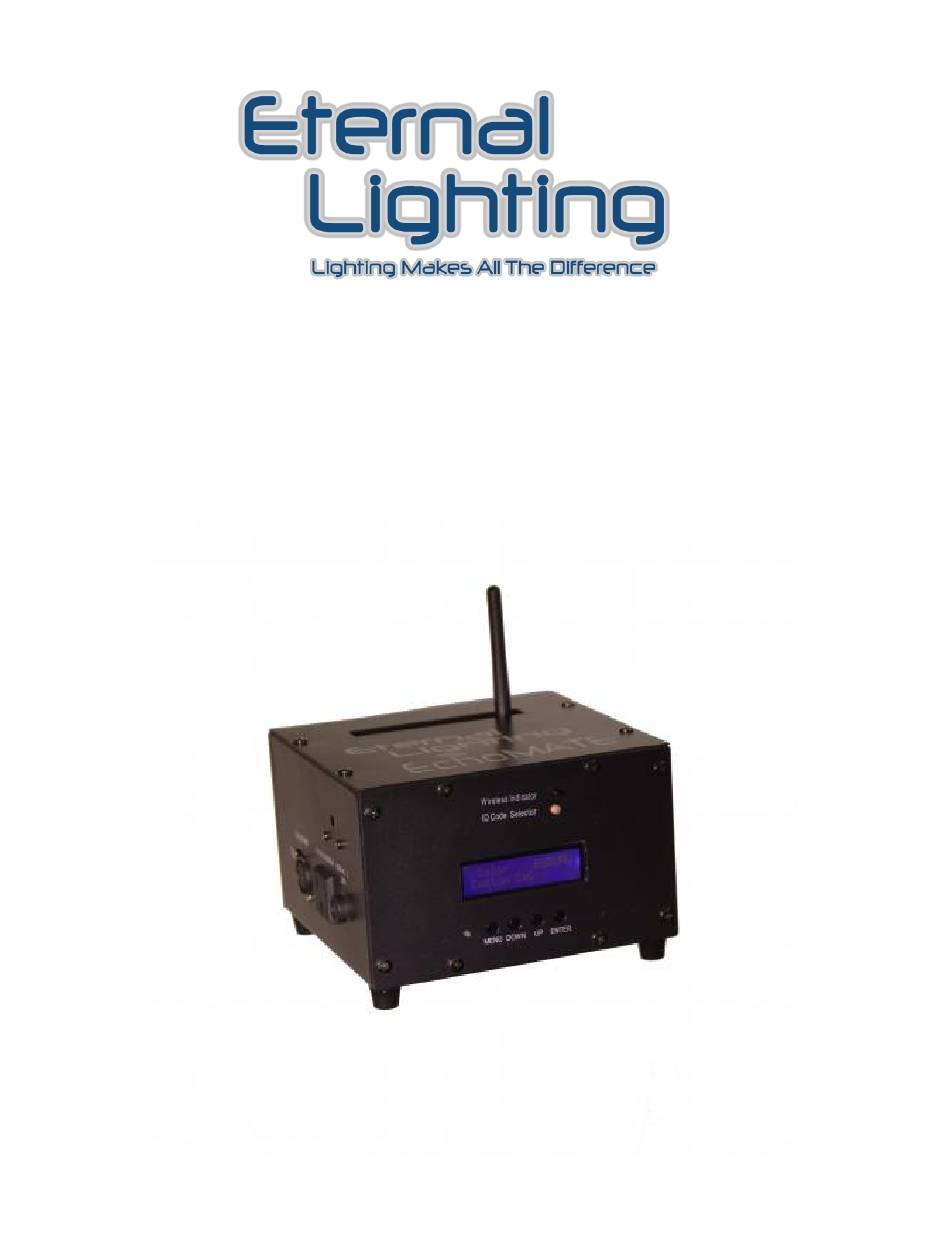

- Page 1 Ech oMATE ™ User Manual EchoMATE Eternal Lighting Updated: 03/31/2016...
- Page 2 How Long Does the Battery Last? The EchoMATE will last up to 20 hours on a single full charge. If you eliminate the display to Full on you may notice slightly shorter run time versus having the display black out after 10-60 seconds.
- Page 3 RGBWA+UV 6Ch mode in them you would use that DMX Transmitter and plug into the DMX out of the EchoMATE to use control those light with the Built in 20+ Programs of the EchoMATE to trigger from the IR Remote Plus.
- Page 4 (10) Programmed Auto Mode with 8 Speed Settings Smooth Color Mixing The EchoMATE has absolute ZERO noise - No Fans to make any Noise (10) Programmed Fade mode with 8 Speed Settings Manual Color Mix Mode on Push Button Display ...
- Page 5 Master/Slave – Press Up or Down to change the command of Master or Slave, Enter to save the command. (NOTE: In order to use the IR Remote Plus, put the EchoMATE in Master Mode. The EchoMATE will not respond to the IR Remote Plus if it is in Slave Mode) ...
- Page 6 Infrared remote control: To use the IR Remote Plus control on the EchoMATE, first be sure it is ENABLE in the IR INFA mode located in the MENU selection. Also, turn the fixture into a MASTER. To control the EchoMATE you must aim the IR Remote Plus at one of the multiple infrared sensors located on the Bottom, the input side, the output side, the display side of the EchoMATE.
- Page 7 EchoMATE Eternal Lighting Updated: 03/31/2016...
- Page 8 DMX Values and Functions: DMX Channel Mode 5ch / 6ch 5CH Mode EchoMATE Value RGBWA 0-255 RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255...
