1

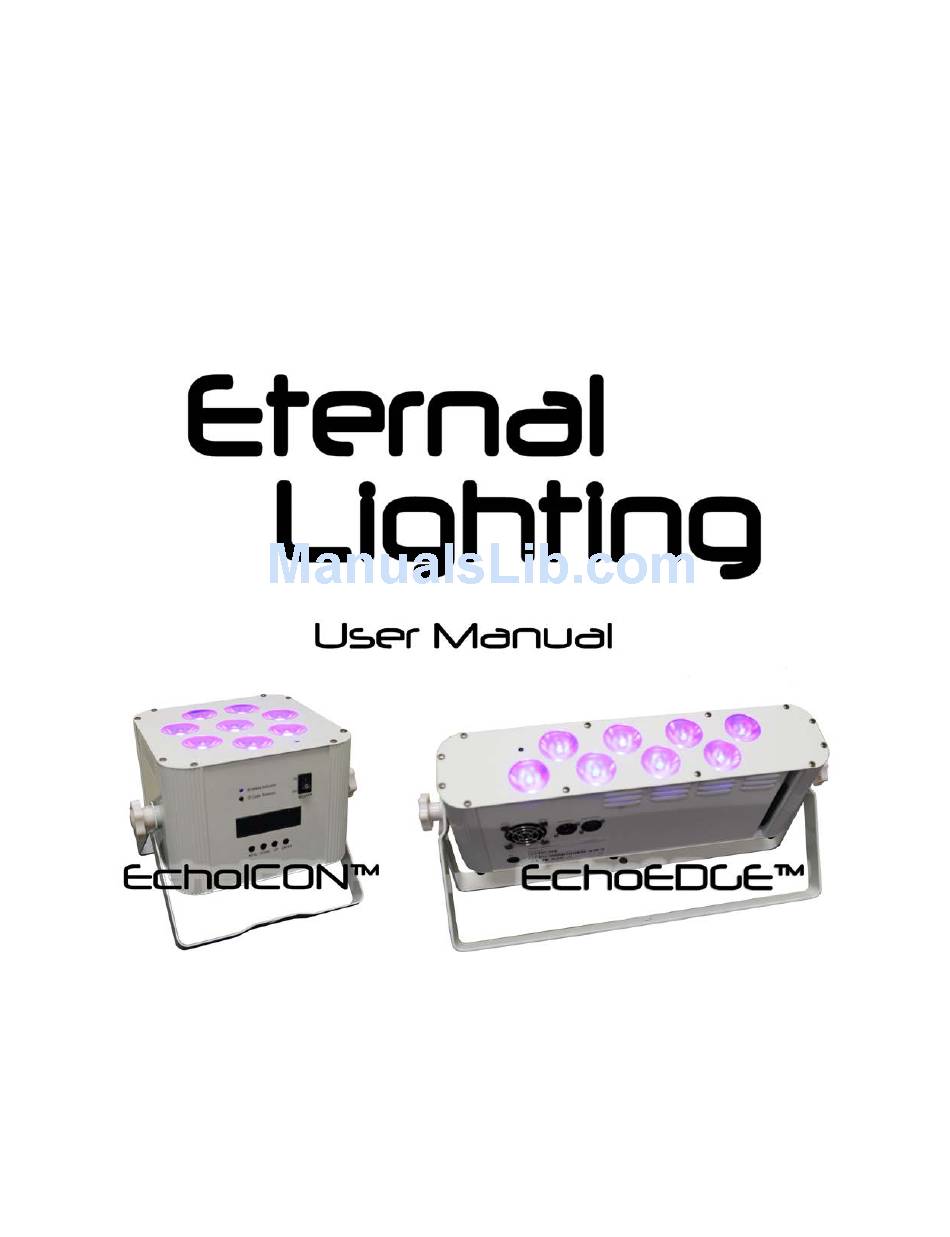

EchoICON and EchoEDGE Manual
Eternal Lighting
Updated 07/19/2014

Advertisement

loading
Need help?

Need help?

Do you have a question about the EchoICON and is the answer not in the manual?

Questions and answers

Related Manuals for Eternal Lighting EchoICON

Summary of Contents for Eternal Lighting EchoICON

  • Page 1 EchoICON and EchoEDGE Manual Eternal Lighting Updated 07/19/2014...
  • Page 2 Do not return this unit to your dealer without first contacting them. Contents in each package: (1) EchoICON or EchoEDGE RBWA+UV, (1) IEC power cord, (1) Bracket, (2) knobs, (4) washers. Securely, plug the IEC power...

  • Page 3: For Example

    IEC power cord plugged into the Power Input, Red Power button flipped to ON and CHARGE the battery at the same time or have the 3-way switch in the OFF position. The EchoICON/EchoEDGE RGBWA+UV will last up to 20 hours on a single full charge. It How Long Does the Battery Last? will depend on which LED colors and how many LED colors are being used at what intensity based on the (0-255) Scale.
  • Page 4 (Compatible with CUBE5, ElitePar5, CUBEecho & EchoEDGE) • Dual Mount Bracket for hanging or sitting on the floor • Rubber feet for non intrusive lay flat design. • PHOTOMETRICS: 19,345 LUX @ 1meter (Full Power) EchoICON and EchoEDGE Manual Eternal Lighting Updated 07/19/2014...

  • Page 5: Operation Guide

    Custom Color B Custom Color C SHND Custom Color D Custom Color E Sound: 1 Sound Sound: 2 Fade 01-10 (Fast to Slow) Operating Time Boot time Work time Total Operating Time EchoICON and EchoEDGE Manual Eternal Lighting Updated 07/19/2014...
  • Page 6 IR INFA Enable/Disable Menu: • Start Up – Welcome to Eternal Lighting Screen • Switch to Display- When blinking, choose Program RGBWA or RGBWA+UV, press UP and Enter • DMX Address and Channel Mode – Press Enter to move up and down between DMX Addr and CH.
  • Page 7 XT-Mitter Pro with a DMX cable to a DMX Controller. To sync the EchoICON/EchoEDGE to the XT-Mitter PRO 3.0 transmitter, select the same ID Code color on all the fixture(s) and select the ID on the XT-Mitter PRO to correspond to the color.

  • Page 8: Infrared Remote Control

    Infrared remote control: To use the IR remote control on the EchoICON/EchoEDGE, first ENABLE the IR INFA located in the MENU selection. Also, turn the fixture into a MASTER. To control the fixture you must aim the remote at the infrared sensor located on the top of the fixture by the LEDs.
  • Page 9 DMX Values and Functions: DMX Channel Mode 3ch / 4ch / 5ch / 6ch / 8ch / 11ch / 13ch 3CH Mode CUBEecho, EliteParHEX, EchoEDGE & EchoICON Value RGBWA+UV 18 Watt x 6in1 0-255 RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
  • Page 10 6CH Mode CUBEecho, EliteParHEX, EchoEDGE & EchoICON Value RGBWA+UV 18 Watt x 6in1 0-255 RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
  • Page 11 11CH Mode CUBEecho, EliteParHEX, EchoEDGE & EchoICON Value RGBWA+UV 18 Watt x 6in1 0-255 RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
  • Page 12 13CH Mode CUBEecho, EliteParHEX, EchoEDGE & EchoICON Value RGBWA+UV 18 Watt x 6in1 0-255 RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
