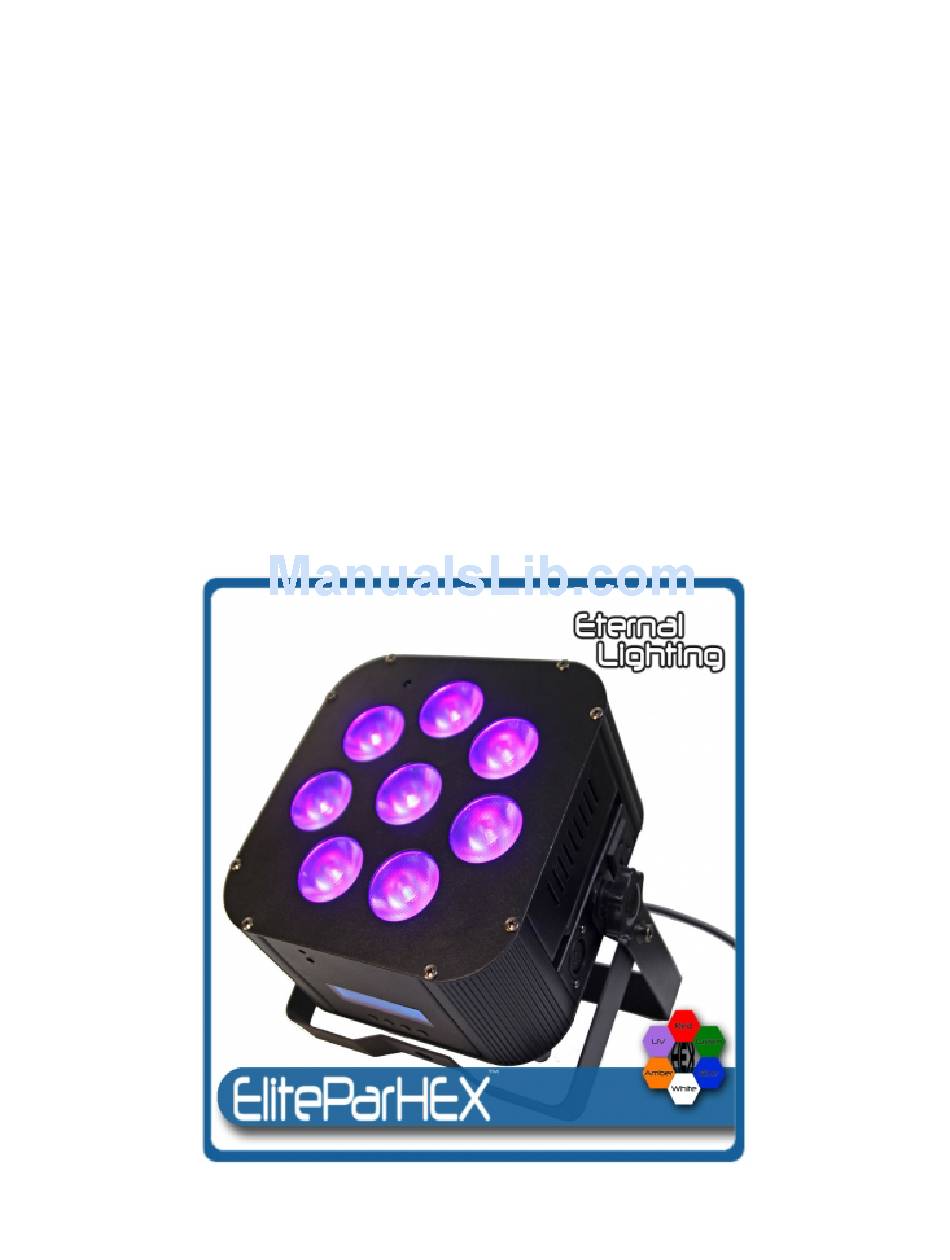

    Eternal Lighting EliteParHEX User Manual EliteParHEX RGBWA+UV Manual Eternal Lighting July 2014...
  • Page 2 Introduction: Thank you for your purchase. The EliteParHEX RGBWA+UV LED is a DMX intelligent LED par light. This LED par light is for the serious production company looking for high powered LED output with (8) 18Watt 6in1 RGBWA+UV LEDs. Unpacking: Thank you for purchasing the EliteParHEX RGBWA+UV light fixture. Every EliteParHEX RGBWA+UV has been thoroughly tested and has been shipped in perfect operating condition.
  • Page 3 (Compatible with CUBE5, ElitePar5, CUBEecho, EchoICON & EchoEDGE) • Dual Mount Bracket for hanging or sitting on the floor • Rubber feet for non intrusive lay flat design. • PHOTOMETRICS: 19,345 LUX @ 1meter (Full Power) EliteParHEX RGBWA+UV Manual Eternal Lighting July 2014...
  • Page 4 EliteParHEX RGBWA+UV Operation Guide: Plug the IEC Power Cord into the Power input and turn the power switch to ON Welcome to Start Up ETERNAL LIGHTING Version Switch to Display RGBWA (CH 3, 4, 5, 8, 11) RGBWA+UV (CH 3, 4, 5, 6, 8, 11, 13)
  • Page 5 • Boot Time and Work Time – Current operating time and total run time • Battery Capacity – (Non Active Feature on EliteParHEX as no battery in this light) • LCD Display Time – Press Up to adjust 10 sec to Full On Display Back Lit Light ...
  • Page 6 XT-Mitter Pro with a DMX cable to a DMX Controller. To sync the EliteParHEX RGBWA+UV to the XT-Mitter PRO 3.0 transmitter, select the same ID Code color on all the fixture(s) and select the ID on the XT-Mitter PRO to correspond to the color.

  • Page 7: Infrared Remote Control

    Infrared remote control: To use the IR remote control on the EliteParHEX, first ENABLE the IR INFA located in the MENU selection. Also, turn the fixture into a MASTER. To control the fixture you must aim the remote at the infrared sensor located on the top of the fixture by the LEDs.
  • Page 8 DMX Values and Functions: DMX Cannel Mode 3ch / 4ch / 5ch / 6ch / 8ch / 11ch / 13ch 3CH Mode CUBEecho, EchoEDGE, EchoICON & EliteParHEX Value RGBWA+UV 18 Watt x 6in1 0-255 RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
  • Page 9 6CH Mode CUBEecho, EchoEDGE, EchoICON & EliteParHEX Value RGBWA+UV 18 Watt x 6in1 0-255 RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
  • Page 10 11CH Mode CUBEecho, EchoEDGE, EchoICON & EliteParHEX Value RGBWA+UV 18 Watt x 6in1 0-255 RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
  • Page 11 13CH Mode CUBEecho, EchoEDGE, EchoICON & EliteParHEX Value RGBWA+UV 18 Watt x 6in1 0-255 RED Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright)
