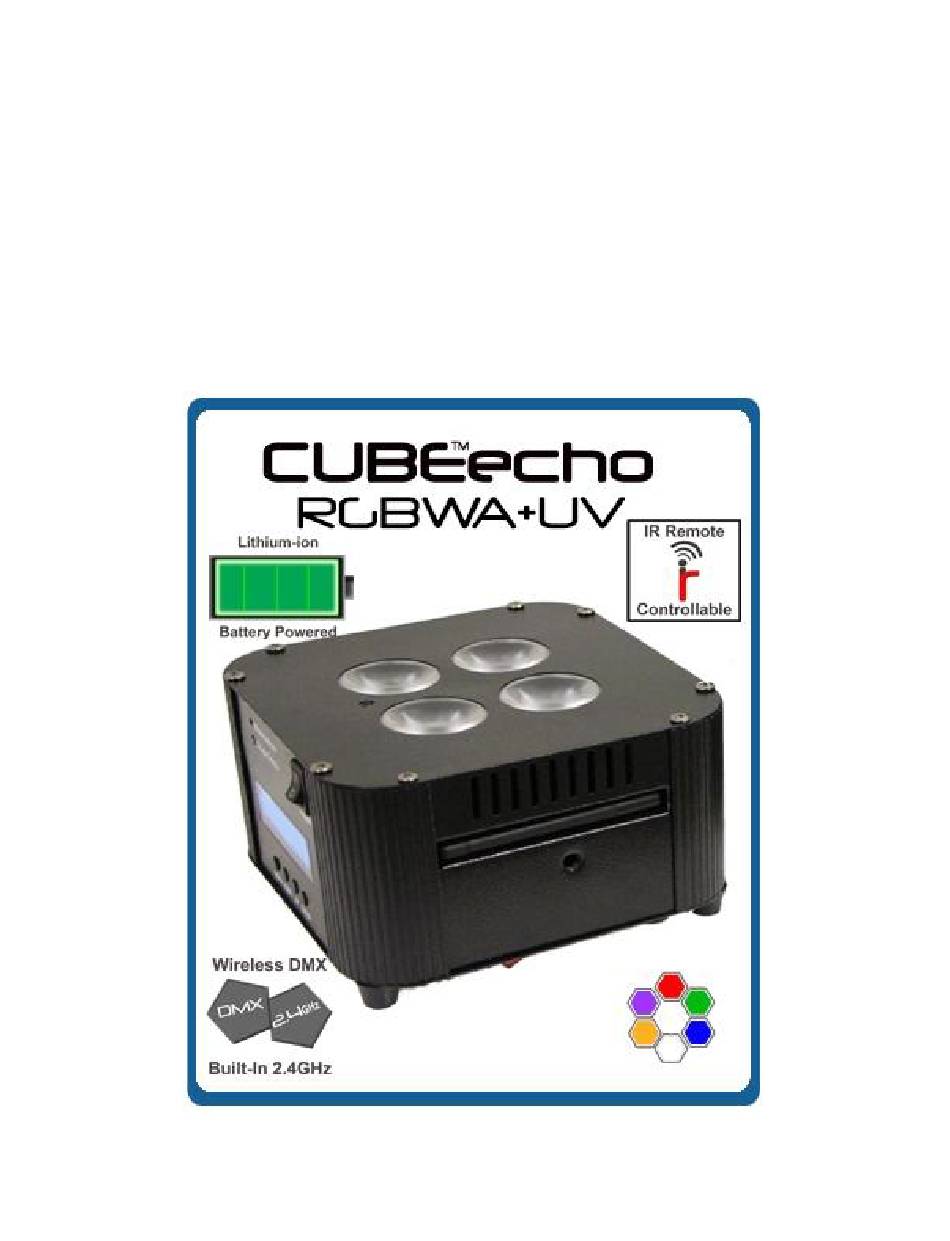

- Page 1 Eternal Lighting CUBEecho RGBWA+UV User Manual CUBEecho RGBWA+UV Eternal Lighting Updated: 7/19/2014...

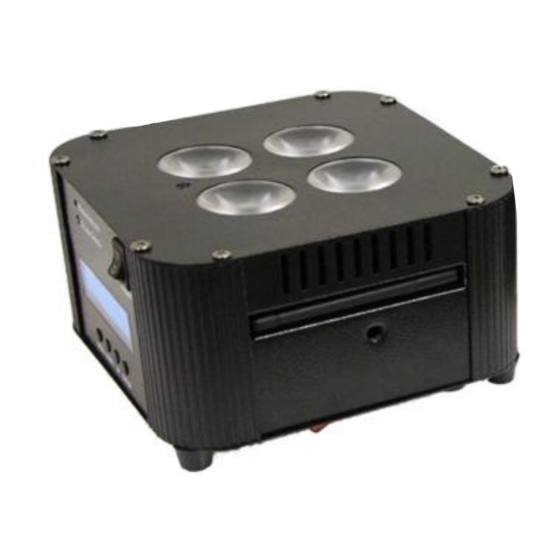

- Page 2 Introduction: Thank you for your purchase. The CUBEecho RGBWA+UV LED is a DMX intelligent LED par light. This LED par light is lightweight and compact which makes is ideal for Mobile Entertainers. Unpacking: Thank you for purchasing the CUBEecho RGBWA+UV light fixture. Every CUBEecho RGBWA+UV has been thoroughly tested and has been shipped in perfect operating condition.
- Page 3 How Long Does the Battery Last? The CUBEecho RGBWA+UV will last up to 20 hours on a single full charge. It will depend on which LED colors and how many LED colors are being used at what intensity based on the (0-255) Scale. The (0-255) Scale you see on the push button display is directly related to the 0-255 scale you are using with a DMX controller or DMX software.
- Page 4 Enable/Disable Menu: Start Up – Welcome to Eternal Lighting Screen Switch to Display- Version - RGBWAU - When RGBWAU is blinking, choose Program RGBWA or DMX Address and Channel Mode – Press Enter to move up and down between DMX Addr and RGBWA+UV, press UP/DOWN and Enter.
- Page 5 ID Code Selector colors, press the small clickable button next to the ID Code Selector. Choose a color, for example Blue (4), and do the same for all your CUBEecho RGBWA+UV. Master/Slave- Have one fixture in Master Mode and the rest of the fixtures in Slave Mode. Turn on the Receiver button and put all fixtures on same ID Code Color.
- Page 6 The XT-Mitter PRO will start blinking RED (meaning transmitting signal) and all the Slave fixture(s) will start blinking GREEN (meaning receiving signal). You will have up to 300 feet, line of sight of communication with your XT-Mitter PRO and the CUBEecho RGBWA+UV. Please reference the DMX chart below for information on the Channel Mode programs.
- Page 7 GREEN Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 BLUE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) 0-255 WHITE Color dimmer (0-1 Off, 2-255 Dimmer from Dim to Bright) CUBEecho RGBWA+UV Eternal Lighting Updated: 7/19/2014...
- Page 8 0-255 R, G, B,W STROBE from slow to fast (0-15 Off, 16-255 Strobe Slow to Fast) 0-255 SOUND (Off 0-15 ON 16-255 Color change through preset colors) 11CH Mode CUBEecho, EliteParHEX, EchoEDGE & EchoICON CUBEecho RGBWA+UV Eternal Lighting Updated: 7/19/2014...
- Page 9 Snap White to Amber, 97-119 UV, 120-141 Color Snap Red to Green to Blue to White, 142- 185 Color Snap UV to Yellow, 186-207 Orange as RED/Amber mixed, 208-250 Color Snap Red to Green to Blue to White to Amber, 251-255 Fade Program) CUBEecho RGBWA+UV Eternal Lighting Updated: 7/19/2014...
- Page 10 0-255 R, G, B,W, A STROBE from slow to fast (0-255) CH13 0-255 SOUND 1 (Off 0-15, ON 16-255 Color change through preset colors) For more information, please contact Support by email at support@eternallighting.com CUBEecho RGBWA+UV Eternal Lighting Updated: 7/19/2014...
