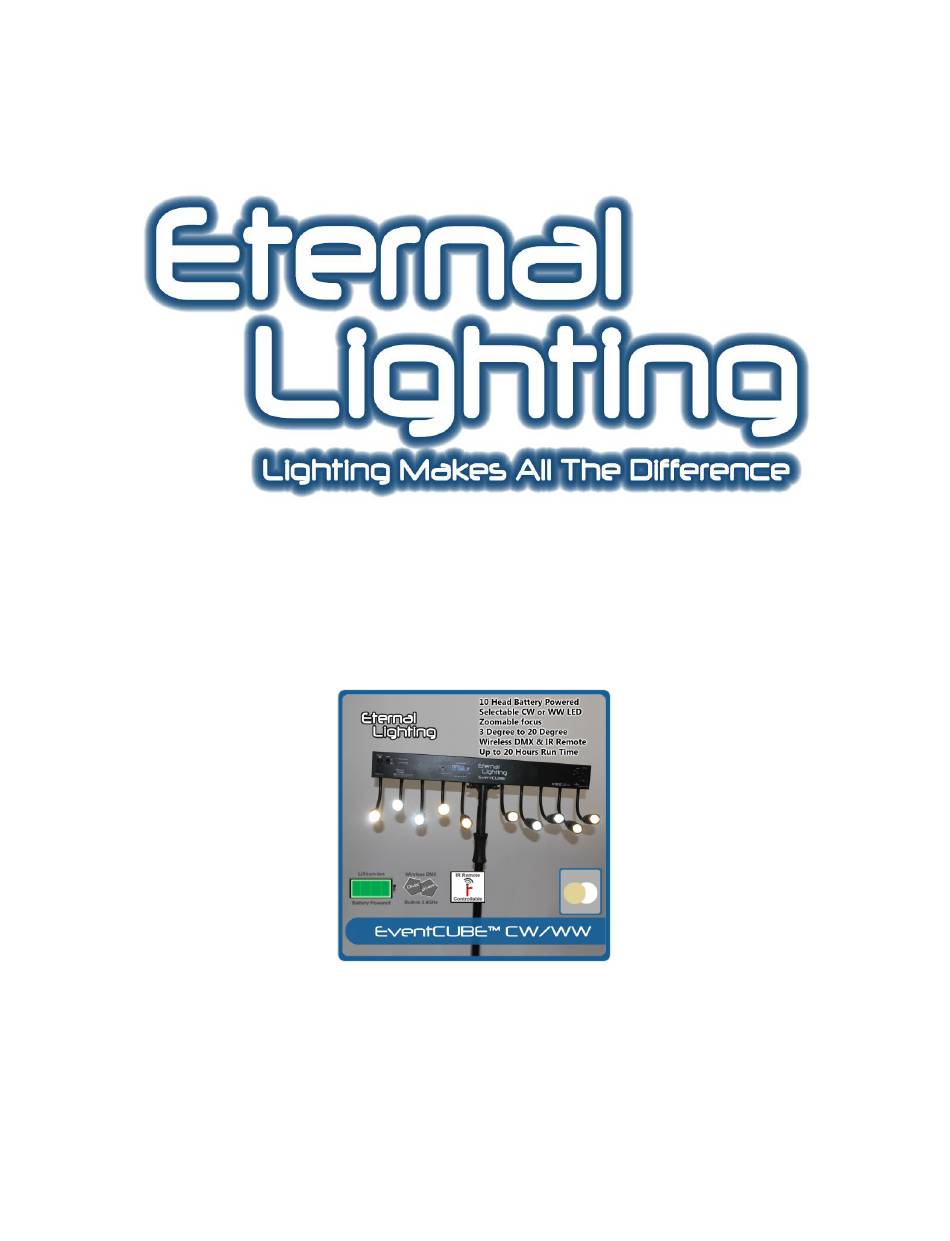

- Page 1 User Manual EventCUBE™ CW/WW EventCUBE™ CW/WW Eternal Lighting Updated 03/2015...
- Page 2 Red while charging or illuminate Green when light fixture reaches 80% or higher battery charge. NOTE: You can be charging the EventCUBE™ and turn on the Power Switch to use the fixture. EventCUBE™ CW/WW Eternal Lighting Updated 03/2015...
- Page 3 Dimensions on EventCUBE™ CW/WW: 35” x 2.5” x 3” (Body) 35” x 2.5” x 10” (Body & • Heads) • Dimensions on Tripod: 7.2” x 6.5” x 60” Beam Angle: 3° to 20° Zoomable Pin Spot Heads • LED Life Rating: 50,000 hours • • EventCUBE™ CW/WW Eternal Lighting Updated 03/2015...
- Page 4 Enable/Disable for IR Sensor Menu: o Start Up – Welcome to Eternal Lighting Screen o DMX Address and Channel Mode – Press Enter to move up and down between DMX Addr and CH. Press Down/Up to scroll through choices. Press Enter to save a command then press Menu to back out.
- Page 5 MENU selection. Also, turn the fixture into a MASTER. To control the fixture you must EventCUBE™ CW/WW aim the remote at the infrared sensor located by the Display (front and back of fixture). EventCUBE™ CW/WW Eternal Lighting Updated 03/2015...
- Page 6 CH4 (Head 4) 0-255 11-123: Warm White Dim to Bright 124-255: Cool White Dim to Bright 0-10: OFF 11-123: Warm White Dim to Bright CH5 (Head 5) 0-255 124-255: Cool White Dim to Bright EventCUBE™ CW/WW Eternal Lighting Updated 03/2015...
- Page 7 124-255: Cool White Dim to Bright 0-10: OFF CH10 (Head 10) 0-255 11-123: Warm White Dim to Bright 124-255: Cool White Dim to Bright For more information, please contact Support by email at support@eternallighting.com EventCUBE™ CW/WW Eternal Lighting Updated 03/2015...
