Ensure that the display device is still powered on, connect the

receiver directly to the DVI input, and tighten the thumbscrews.

Ensure that the PC or source is powered off, connect the

transmitter directly to the source's DVI input, and tighten the

thumbscrews.

10.

If required, apply power to the transmitter. The LEDs illuminate

steadily.

11.

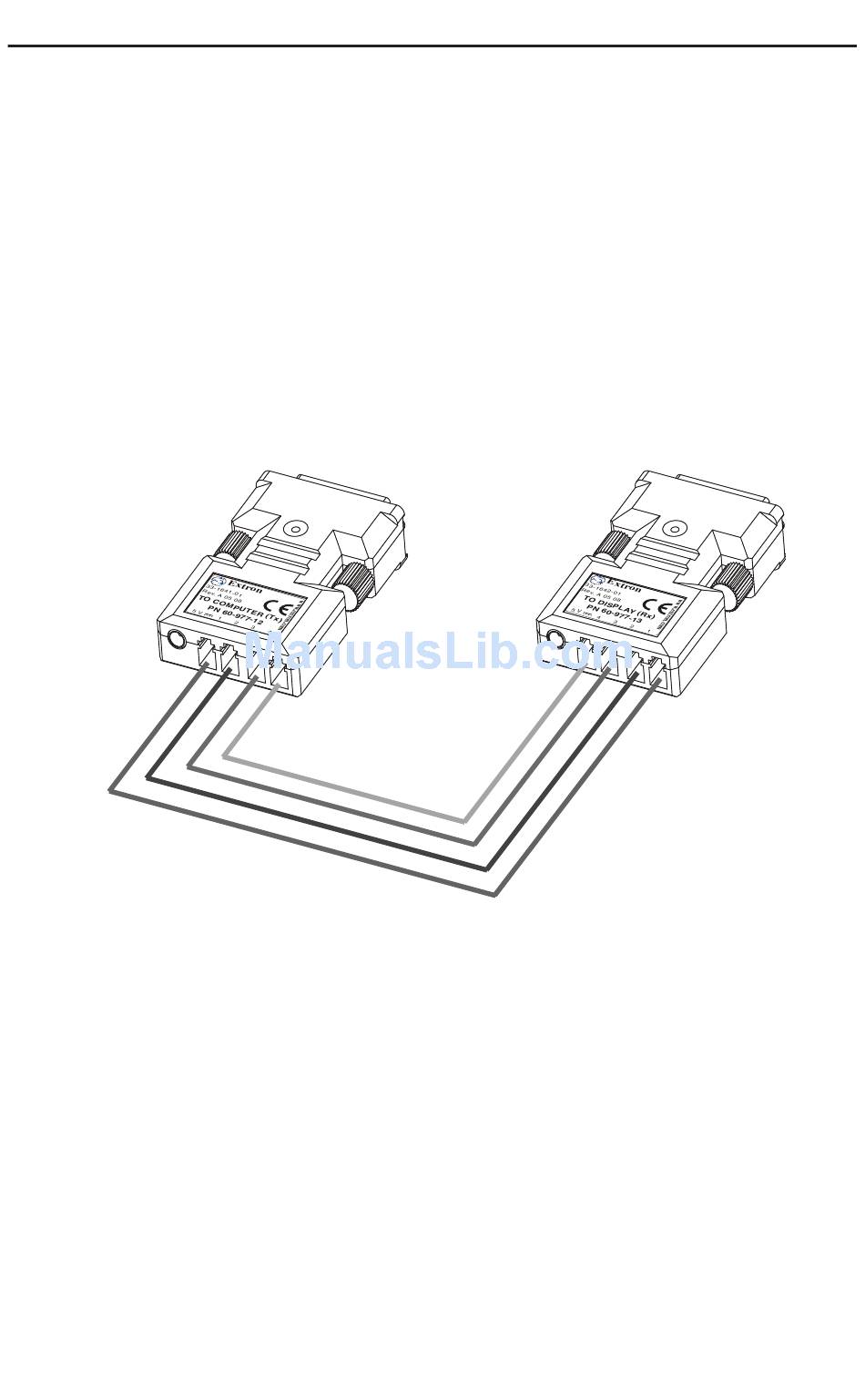

Connect all four fiber optic cables between the transmitter and

receiver. Pay attention to the orientation of the LC connectors

and ensure that each cable joins ports with the same number (port

1 of the transmitter must be connected to port 1 of the receiver,

etcetera.)

12.

Turn on the source device. The source device reads the

information stored in the transmitter and boots up to that

resolution and refresh rate.
