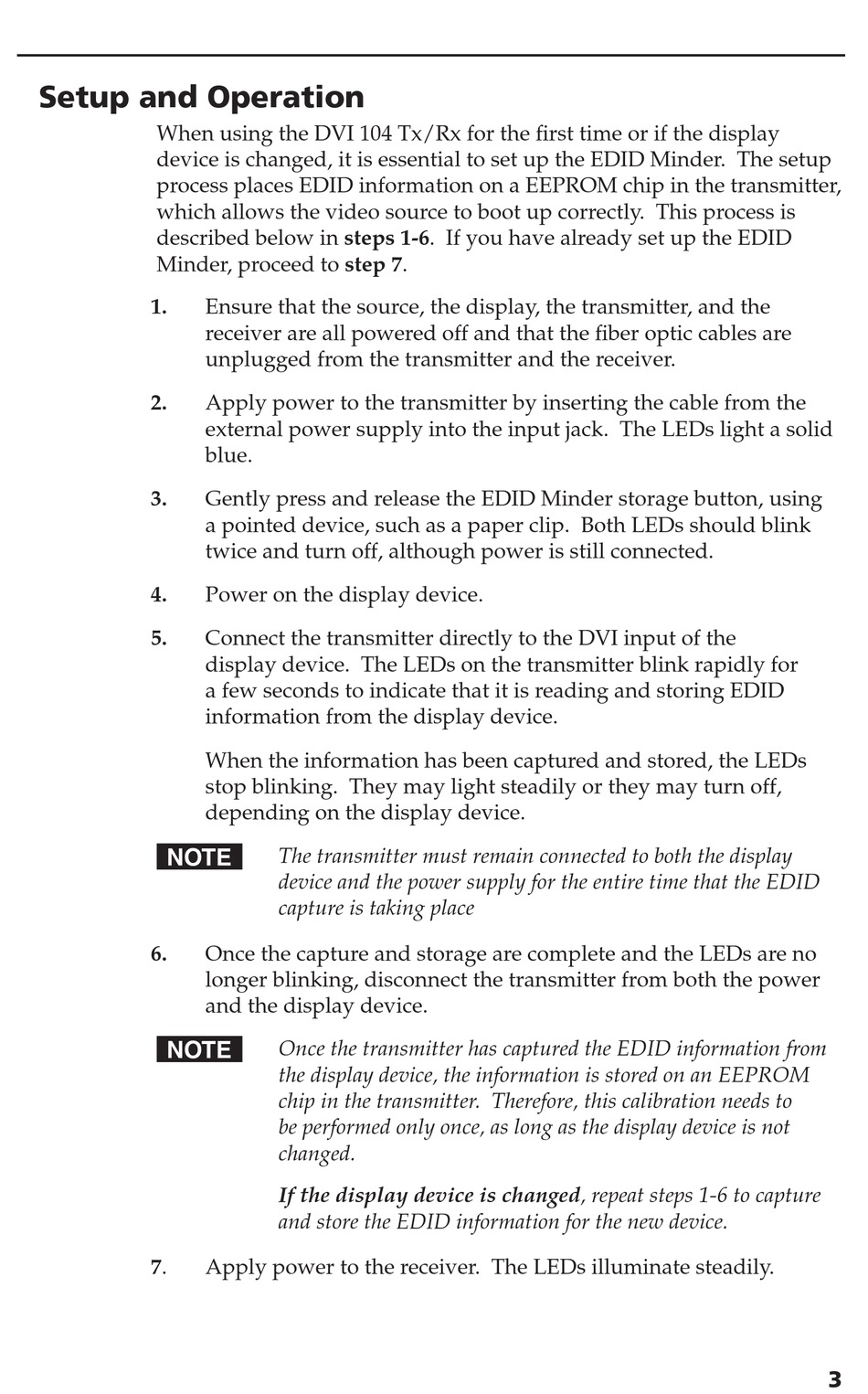

Setup and Operation

When using the DVI 104 Tx/Rx for the first time or if the display
device is changed, it is essential to set up the EDID Minder. The setup
process places EDID information on a EEPROM chip in the transmitter,
which allows the video source to boot up correctly. This process is
described below in steps 1-6. If you have already set up the EDID
Minder, proceed to step 7.
1.
2.
3.
4.
5.
N
6.
N
7.
Ensure that the source, the display, the transmitter, and the
receiver are all powered off and that the fiber optic cables are
unplugged from the transmitter and the receiver.
Apply power to the transmitter by inserting the cable from the
external power supply into the input jack. The LEDs light a solid
blue.
Gently press and release the EDID Minder storage button, using
a pointed device, such as a paper clip. Both LEDs should blink
twice and turn off, although power is still connected.
Power on the display device.
Connect the transmitter directly to the DVI input of the
display device. The LEDs on the transmitter blink rapidly for
a few seconds to indicate that it is reading and storing EDID
information from the display device.
When the information has been captured and stored, the LEDs
stop blinking. They may light steadily or they may turn off,
depending on the display device.
The transmitter must remain connected to both the display
device and the power supply for the entire time that the EDID
capture is taking place
Once the capture and storage are complete and the LEDs are no
longer blinking, disconnect the transmitter from both the power
and the display device.
Once the transmitter has captured the EDID information from
the display device, the information is stored on an EEPROM
chip in the transmitter. Therefore, this calibration needs to
be performed only once, as long as the display device is not
changed.
If the display device is changed, repeat steps 1-6 to capture
and store the EDID information for the new device.
Apply power to the receiver. The LEDs illuminate steadily.
