- Page 1 C o n t r o l ® 4 7 C / T C o n t r o l ® 4 7 L P C o n t r o l ® 4 7 H C User’s Guide ® C o n t r o l 4 5 C / T ®...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product Description .............1 Product Feature Identification ........2 Control 40 Series Preparation ........3 Control 40 Series Installation ........4 Wiring Instructions ...........5-6 Grilles, Maintenance & Contacting JBL ....7 Specifications ............8-10 JBL Professional Control Contractor 40 Series... -
Page 3: Product Description
® ® series includes five models. Built on over 60 years of JBL loudspeaker design experience, the Control Contractor 40 Series delivers outstanding performance and reliability housed in an elegant industrial design. Control 47C/T features extended bass performance with a wide 120° of coverage that allows fewer speakers to cover a large space. -
Page 4: Product Feature Identification

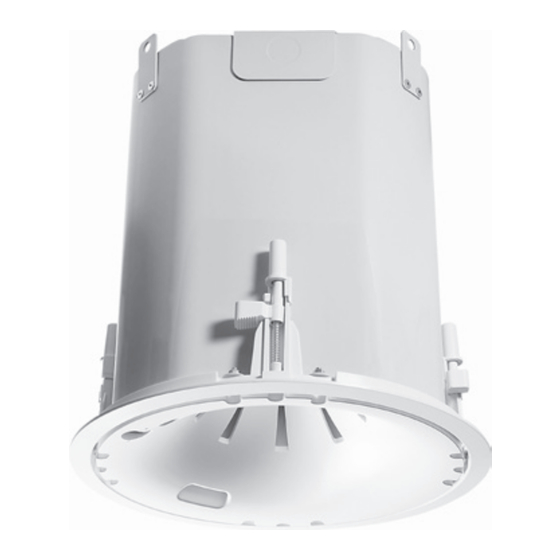

PRODUCT FEATURE IDENTIFICATION Suspension Tabs (Control 47C/T Shown) (Control 47C/T & 47HC models only) Integrated Back Can Input Connectors Two-Landing (located inside terminal well) Dog Ear Transformer Tap / Bypass (located inside waveguide aperture) Conical RBI Waveguide ® Shown with included grille removed. -
Page 5: Control 40 Series Preparation
MTC-26NC for the Control 45C/T suspended ceilings or sheetrock ceilings is included (see below MTC-47NC for the Control 47C/T & Control 47LP for additional details on the Control 42C). The loudspeaker is MTC-19NC for the Control 47HC & Control 40 CS/T held securely in place via mounting ears which lock into place. -
Page 6: Control 40 Series Installation
If the application calls for tile rails, they thick, start with the dog ear are available separately as part number MTC-RAIL. in the second (top) landing to ensure clearance and ease of installation. 4 JBL Professional Control Contractor 40 Series... -
Page 7: Wiring Instructions
(2) removable locking input connectors with two (2) terminals on each for the Control 42C, Control 47C/T, Control Connecting the Input Terminal Block on Control 47LP and Control 47HC and six (6) terminals on the Control Contractor 40 Series Loudspeakers -- The input terminal 40CS/T. - Page 8 Do not use one or three terminate at the Control 40CS/T subwoofer. satellite speakers, or it could result in uneven sound levels and / or damage to your sound system. 6 JBL Professional Control Contractor 40 Series...
-
Page 9: Grilles, Maintenance & Contacting Jbl
Contact the JBL Professional Distributor in your country. shield. A list of JBL Professional Distributors and US Service Centers can Painting the Grille – Painting the grille requires removal of the be obtained from the JBL Professional website at: www.jblpro. -
Page 10: Specifications
Ceiling Thickness Range: Accommodates tiles / drywall up to 70 mm (2.75 inches) thick Net Weight: 4.3 kg (9.5 lbs) Included Accessories: Press-in grille, C-ring support backing plate, 2 tile support rails, knockout strain relief, cutout template, paint shield 8 JBL Professional Control Contractor 40 Series... - Page 11 Ceiling Thickness Range: Accommodates tiles / drywall up to 70 mm (2.75 inches) thick Weight: 3.9 kg (8.5lbs) Included Accessories: Press-in grille, C-ring support backing plate, 2 tile support rails, knockout strain relief, cutout template, paint shield JBL Professional Control Contractor 40 Series...
- Page 12 IEC standard, full bandwidth pink noise with 6 dB crest factor Average 1 kHz to 16 kHz JBL continually engages in research related to product improvement. Changes introduced into existing products without notice are an expression of that philosophy. 8500 Balboa Boulevard...
