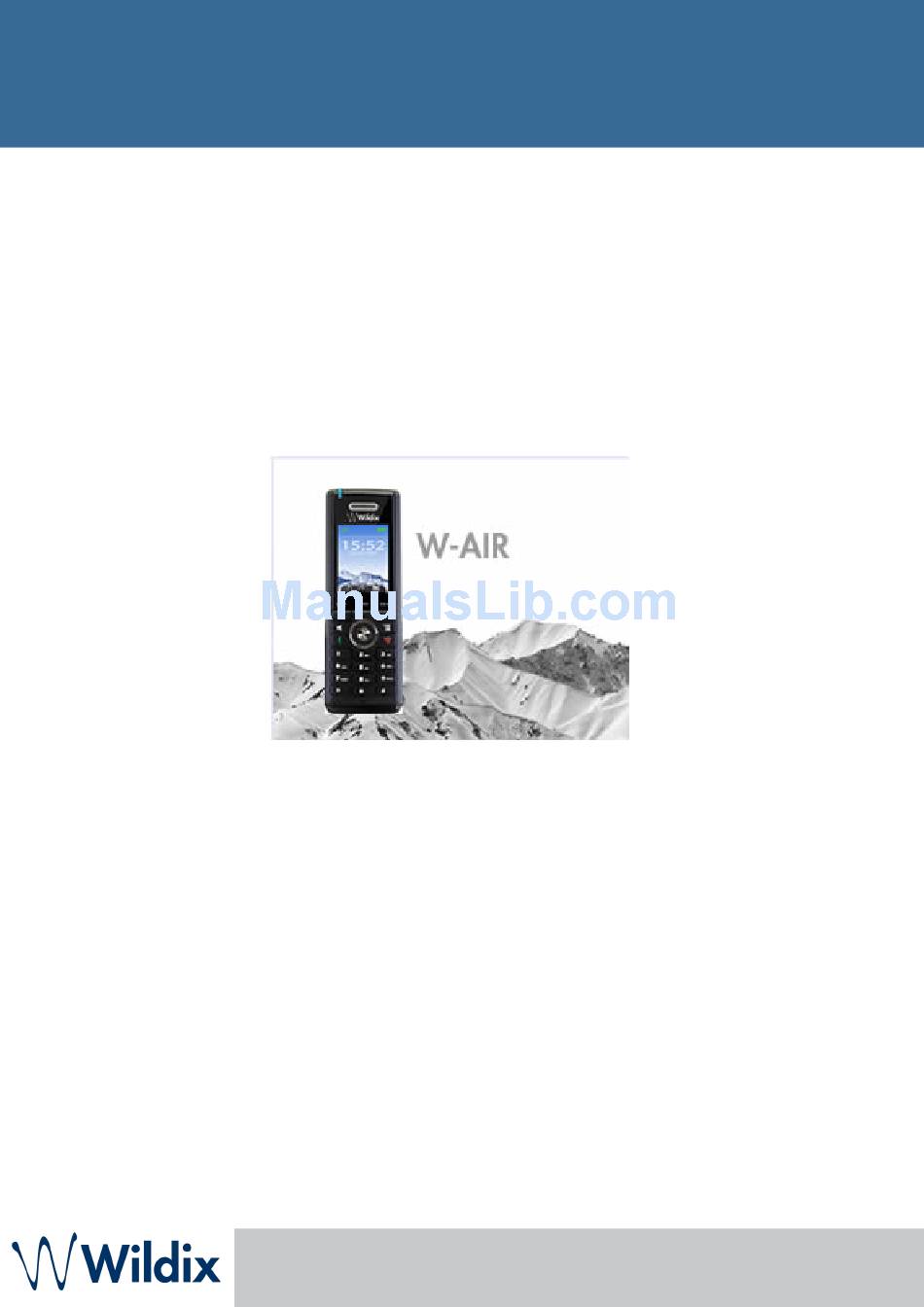

Page 1: Quick Start Guide
W-AIR Quick Start Guide Version updated on: 30.08.2013 WMS version: 2.8.X or later... -
Page 2: Table Of Contents
This guide allows you to set up your W-AIR Network and connect your cordless phones. W-AIR SYSTEM Wildix W-AIR Base station Wildix W-AIR Repeater Wildix W-AIR cordless phone Installation Requirements IMPORTANT: Site Survey Check the Radio Coverage Cordless phone dBm value... -
Page 3: W-Air System
W-AIR SYSTEM W-AIR is a Wildix cordless solution. The system supports auto-provisioning enabling instant connection to the Wildix PBX. Due to high scalability, new components are quickly and easily integrated to guarantee the better performance. Wildix W-AIR system uses new wireless technology CAT-iq (Cordless Advanced Technology –... -
Page 4: Wildix W-Air Repeater
2 omnidirectional inbuilt antennas Indoor range: 50 m; outdoor range: 300m Wildix W-AIR Repeater This component increases the coverage range of the Base station (W-AIR Base station) Up to 3 Repeaters per Base Station Up to 5 concurrent calls Up to 3 Repeaters connected in chain... -
Page 5: Installation
Before getting started make sure the cordless phone is fully charged, then follow the steps below: • place the W-AIR base station exactly at the desired position and power on the base. • use the building plan drawing and check the base station coverage using the phone and Site survey mode of the phone. -
Page 6: Check The Radio Coverage
Go to the device’s web interface of a base station and click on Repeaters to see the status and the coverage values of every connected Repeater, check the column DECT sync source to know the value. W-AIR Quick Start Guide... -
Page 7: Plan An Installation
• Simulate the worst environmental conditions (close the doors, turn on the equipment, etc) to perform a realistic test of configuration • Use 98 code (conference) on your W-AIR Handset to listen to the music on hold, to test an audio reception quality. -
Page 8: W-Air Network Configuration
W-AIR Network configuration Detect a gateway Go to to the WMS → Devices, find the network to which W-AIR is connected and make a Scan to search for devices. An unconfigured device appears in grey → select it and press Configure / Sync device button to associate it with the system. -
Page 9: Create A W-Air Network
Create a W-AIR Network W-AIR Network consists of one or more gateways that should belong to the same LAN. A gateway can be a part of a W-AIR Network only if it can reach other devices. • Go to menu Devices → W-AIR Networks → add Network (+) •... -
Page 10: Set Up Repeaters
• Verify that there is only one active W-AIR Network • Press the Settings key • Select Connectivity • Select Deregister, enter 0000 as PIN then press Yes • Select Register, enter 0000 as Access code then press OK • The cordless phone is ready for a new login procedure Notes: •... -
Page 11: Leds Of The Repeaters
• LED becomes solid red if the Repeater fails to connect to the base station Installation analysis: Look at the DECT Chain Tree to check the solution you have decided to set up. The DECT Chain Tree should correspond to the real Bases deployment (as in the following example) W-AIR Quick Start Guide... -
Page 12: Technical Notes
DND, Call Forward and other settings You can set them by dialing feature codes of WMS, the status is notified in real time on the device. W-AIR Quick Start Guide... -
Page 13: Upgrade Procedure Of W-Air
Upgrade Procedure of W-AIR Requirements WMS version 2.12.20859.1 or higher Upgrade procedure Base stations Upgrade should be done, if the current FW version is less than 2.42 for WMS2.0 or 2.90 for WMS3.0 • Go to WMS → Devices → select all the base stations to be upgraded → press “Configure / Sync device”... -
Page 14: Repeaters
During the reboot you can see the status of the upgrade of the repeaters, the procedure takes about 25 min Do not turn off or reboot repeaters manually during the upgrade: they restart automatically. The upgrade procedure is over only when the base station interface indicates the version “31” Before: During: W-AIR Quick Start Guide... - Page 15 3 hours During: After: • At the end of the upgrade procedure of the whole W-AIR system move to the page “Firmware Update” and insert the value 0 into the fields “8630” and “DECT4024” → press “Save” • Make sure that the DECT Chain scheme remained correct ...
- Page 16 Contacts Italy: France: +39 0461.1715112 +33 176 747 980 support@wildix.com support@wildix.fr W-AIR Quick Start Guide...
