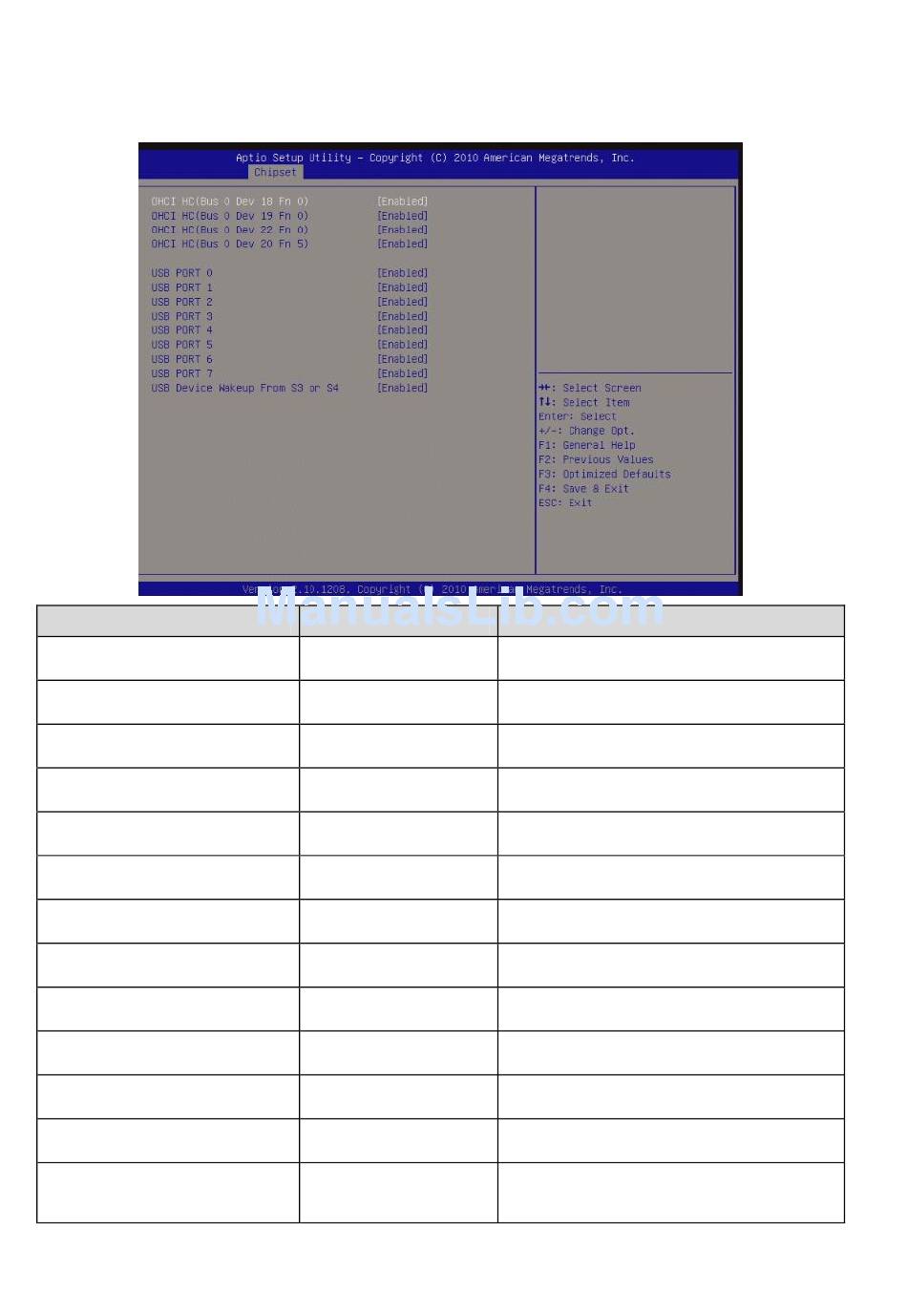

3.2.3.3.2 SB USB Configuration

Item
OHCI HC (Bus 0 DEV 18 Fn 0)
OHCI HC (Bus 0 DEV 19 Fn 0)
OHCI HC (Bus 0 DEV 22 Fn 0)
OHCI HC (Bus 0 DEV 20 Fn 5)
USB Port 0
USB Port 1
USB Port 2
USB Port 3
USB Port 4
USB Port 5
USB Port 6
USB Port 7
USB Device wakeup From S3
or S4
Options
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Enabled
Disabled
Data Modul AG - www.data-modul.com
Description
OHCI HC (Bus 0 DEV 18
Enable or Disable
Fn 0)
OHCI HC (Bus 0 DEV 19
Enable or Disable
Fn 0)
OHCI HC (Bus 0 DEV 22
Enable or Disable
Fn 0)
OHCI HC (Bus 0 DEV 20
Enable or Disable
Fn 5)
USB Port 0
Enable or Disable
USB Port 1
Enable or Disable
Enable or Disable USB Port 2
Enable or Disable USB Port 3
Enable or Disable USB Port 4
USB Port 5
Enable or Disable
USB Port 6
Enable or Disable
USB Port 7
Enable or Disable
Enable or Disable USB Device Wake up from
S3 or S4
