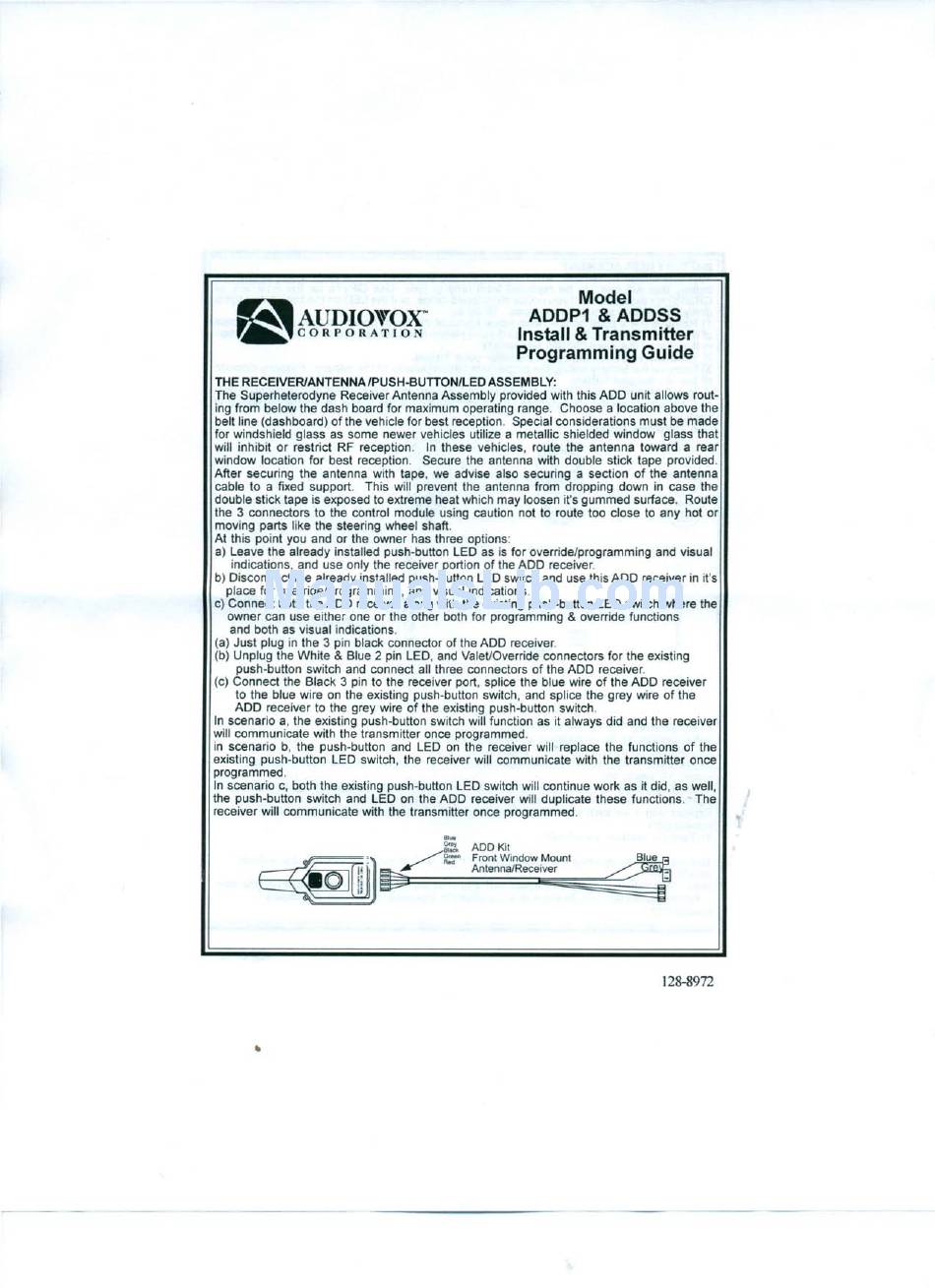

~AUDIOTOX~
~CORPORATION
Model
ADDP1 & ADDSS
Install &
Transmitter
Programming Guide
THE
RECEIVER/ANTENNA
/PUSH-BUTTON/LED
ASSEMBLY:

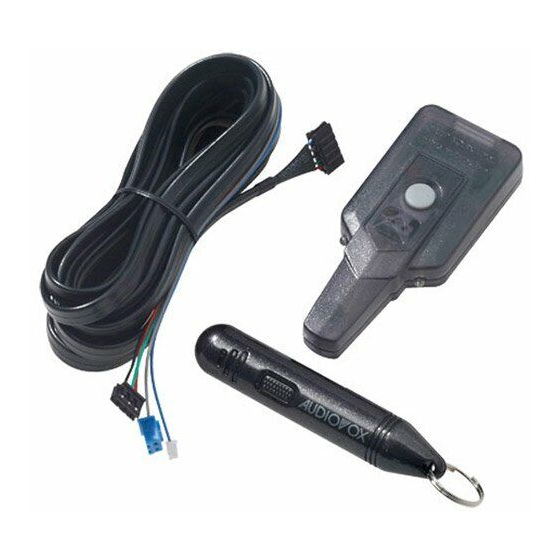

The Superheterodyne
Receiver Antenna Assembly
provided with this
ADD
unit allows
rout-
ing from below the dash board for maximum operating range.
Choose a location above the
belt line
(dashboard)
of the vehicle for best
reception.
Special considerations
must be made
for windshield
glass as some newer vehicles utilize a metallic shielded window
glass that
will inhibit or restrict
RF
reception.
In these
vehicles,
route the antenna
toward a rear
window location for best
reception.
Secure the antenna with double stick tape
provided.
After securing
the antenna with
tape,
we advise also
securing
a section
of the antenna
cable to a fixed support.
This will prevent the antenna from dropping
down in case the
double stick tape is exposed to extreme heat which may loosen it's gummed
surface.
Route
the 3 connectors
to the control module using caution not to route too close to any hot
or
moving parts like the steering wheel
shaft.
At this point you and or the owner has three
options:
a)
Leave the already installed push-button
LED as is
for
override/programming
and visual
indications,
and use only the receiver
portion
of the ADD
receiver.
b) Disconnect
the
already
installed push-button
LED switch and use this ADD receiver
in it's
place
for
override/programming,
and visual
indications.
c)
Connect both the ADD receiver along with the existing push-button
LED switch where the
owner can use either one or the other both for programming
&
override functions
and both as visual
indications.
(a)
Just plug in the 3 pin black connector
of
the ADD
receiver.
(b)
Unplug the White
&
Blue 2 pin
LED,
and ValeVOverride
connectors
for the existing
push-button
switch and connect
all
three connectors
of the ADD
receiver.
(c) Connect the Black 3 pin to the receiver
port,
splice the blue wire of the ADD receiver
to the blue wire on the existing push-button
switch,
and splice the grey wire of the
ADD receiver to the grey wire of the existing push-button
switch.
In scenario
a,
the existing push-button
switch will function as it always did and the receiver
will communicate
with the transmitter
once
programmed.
in scenario
b,
the push-button
and LED on the receiver will replace the functions
of the
existing push-button
LED
switch,
the receiver will communicate
with
the transmitter
once
programmed.
In scenario
c,
both the existing push-button
LED switch will continue work as it
did,
as
well,
the push-button
switch and
LED
on the ADD receiver will duplicate
these
functions.
The
receiver will communicate
with
the
transmitter
once programmed
.
•....
"'!l.
ADD
Kit
--~~~~1i:
~:
Front Window
Mount
f"
7
/,
A
Iiil
~
R,
Antenna/Receiver
'-
~".0
!i~
~
128-8972
•
