AIRTRONICS SD-10G Operating Manual

2.4ghz fhss-3 digital proportional system
Hide thumbs Also See for SD-10G:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual , Setup Manual

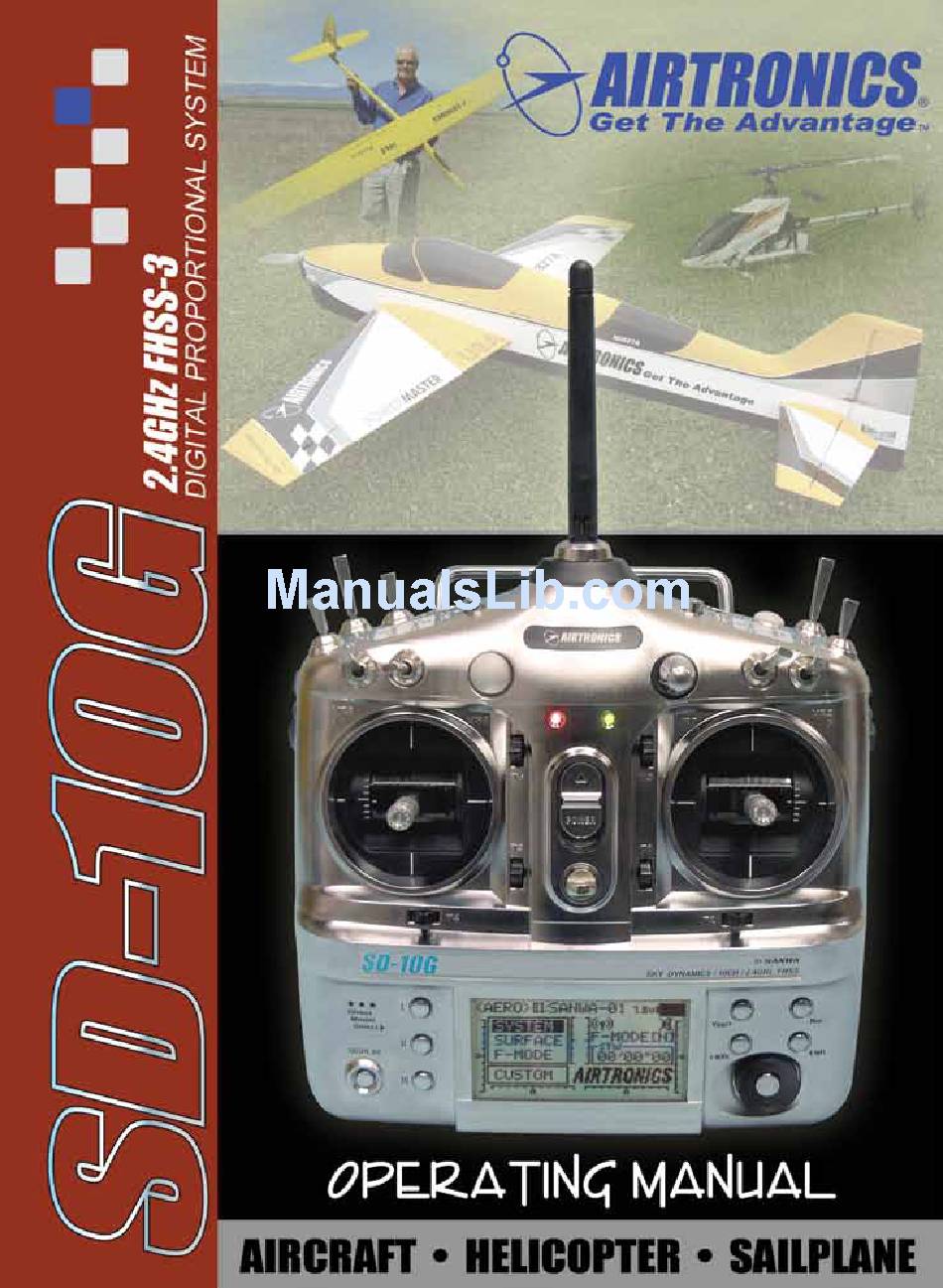

Page 1

Advertisement

Table of Contents
loading

Related Manuals for AIRTRONICS SD-10G

Summary of Contents for AIRTRONICS SD-10G

  • Page 1 Page 1...

  • Page 2: Table Of Contents

    ....................................page 200 packaging The packaging of your Airtronics SD-10G 2.4GHz FHSS-3 radio control system has been specially designed for the safe transportation and storage of the radio control system's components. after unpacking your radio control system, do not discard the packaging materials.

  • Page 3: Introduction

    We appreciate your purchase of the new Airtronics SD-10G 2.4GHz FHSS-3 radio control system. This Operating Manual is intended to acquaint you with the many unique features of your new state of the art SD-10G 2.4GHz FHSS-3 radio control system. In designing the SD-10G 2.4GHz FHSS-3 radio control system, our engineers listened to input from our test-pilots and feedback from our users to design a radio control system that will allow you to extract the maximum performance from your model, while at the same time making the programming process as easy as possible to accomplish.

  • Page 4: Safety And Usage Precautions

    In addition to the FCC Compliance section on the previous page, please observe the following safety and usage precautions when installing and using your new Airtronics SD-10G 2.4GHz FHSS-3 radio control system. SaFETY Be certain to read this Operating Manual in its entirety.

  • Page 5: Receiver Precautions

    Reception can be blocked if the antenna reception wires are shielded inside a carbon fiber fuselage. The manufacturer disclaims all responsibility for damages resulting from use of components other than genuine Airtronics components.

  • Page 6: Features And Specifications

    10-Channel Digital Proportional Computer Radio with Advanced Programming for Competition Aircraft, Helicopters, and Sailplanes New 2.4GHz FHSS-3 Technology Full-Range 92104 10-Channel 2.4GHz FHSS-3 Receiver Battery Monitor Compatible with Airtronics 2.4GHz FHSS-1 Aircraft Receivers User Naming, Model Naming and Model Select 6 Cell 1500mAH Rechargeable Ni-MH Transmitter Battery FHSS-1, FHSS-3, and PPM-8 Modulation Selection...
  • Page 7 Weight: 1.77oz (50gr) Due to the extremely high frame rate that the 92104 10-Channel receiver included with your SD-10G 2.4GHz FHSS-3 radio control system operates at, we strongly recommend the use of digital servos. If you use analog servos and experience problems, you will need to either upgrade to digital servos or use the Airtronics 92824 8-Channel, 92674 7-Channel, or 92664 6-Channel Micro 2.4GHz FHSS-1 receivers.

  • Page 8: Basic Model Setup Order

    The information on this page describes the Basic Model Setup Order that you can use to setup a new model. Regardless of the model you are flying, using the basic functions of the SD-10G transmitter for most applications is easy and will get your model setup quickly.

  • Page 9: Tips And Suggestions

    Low Power Mode. You will be unable to control your model once it is a certain distance away from you. The SD-10G transmitter features a Type function which allows you to quickly set up the transmitter's low-level mixing based on the type of model you're flying. Common templates for AERO, GLIDER, and HELI model types are provided. For example, if your model features two aileron servos, two flap servos, and dual elevator servos, choosing these options will automatically change the transmitter's programming to accommodate this setup.
  • Page 10 Unless otherwise noted, all programming changes take effect immediately. When the Memory Expansion Card is installed and Initialized, it is treated as an extension of the SD-10G transmitter's internal model memory, therefore, model-specific programming data can be created, copied, deleted, etc., directly through the various System menu selections.

  • Page 11: Features Familiarization

    TRanSMiTTER cOnTROL FEaTURES DiagRaMS Use the diagrams below to familiarize yourself with the different control features of your new SD-10G transmitter. Descriptions of these features can be found on pages 12 through 13. The features referenced below are general in nature. Features specific to the Model Type (aircraft, helicopter, or sailplane) can be found in those specific sections of this Operating Manual.
  • Page 12 REcEivER FEaTURES DiagRaMS Use the diagram below to familiarize yourself with the 92104 10-Channel receiver included with your new SD-10G 2.4GHz FHSS-3 radio control system. Descriptions of these features can be found below. Coaxial Cables Bind LED All receiver channel assignments can be programmed to suit the user.

  • Page 13: Servo Connectors

    DIN Connector: The DIN Connector is where the trainer cable (available separately) is plugged into. It is also used to plug the Airtronics USB data cable (available separately) between the transmitter and your computer. An adapter to use the transmitter with a flight simulator can also be plugged into the DIN Connector.

  • Page 14: Transmitter Alarms

    THROTTLE HigH waRning aLaRM The SD-10G transmitter is equipped with a safety feature that will not allow you to use the transmitter if the throttle control stick is not in the lowest position when you turn the transmitter ON. If the throttle control stick is not in the lowest position when you turn the transmitter ON, the Throttle High Warning alarm will sound continuously, the red RF Output Indicator will blink, and the LCD Display will read TH-STICK Hi !! To clear the Throttle High Warning, pull the throttle control stick down to the lowest position.

  • Page 15: Custom Transmitter Adjustments

    ADJUSTMENTS Every effort has been made to engineer the optimum transmitter weight, balance, and feel in the design of your SD-10G 2.4GHz FHSS-3 radio control system. For example, the transmitter control sticks are ball bearing-supported for smooth control and use springs that result in superior feel for most pilots.
  • Page 16 MEMORY ExpanSiOn caRD The Memory Expansion Card allows you to store up to 40 models (20 in the SD-10G transmitter and 20 on the Memory Expansion Card). The Memory Expansion Card can be removed and installed into a different SD-10G transmitter, so that model-specific programming data can be shared with fellow SD-10G transmitter owners in the field.

  • Page 17: Charging The Battery

    The SD-10G 2.4GHz FHSS-3 transmitter features a 6 cell 7.2v 1500mAH Ni-MH battery for lighter weight and longer battery life. The battery is charged directly through the SD-10G transmitter, using the charging jack located in the left side of the SD-10G transmitter.

  • Page 18: Airborne System Connections

    airborne system connections Use the diagram below to familiarize yourself with how to connect the switch harness, servos, and receiver battery to your 92104 10-Channel receiver. A receiver battery is not included. The receiver can be powered by a 4.8v (4 cell Ni-MH or Ni-Cd) or a 6.0v (5 cell Ni-MH or Ni-Cd) battery pack of desired capacity.

  • Page 19: Lcd Display And Programming Keys

    LCD display and programming keys The SD-10G 2.4GHz FHSS-3 transmitter features three Programming Keys, an F-MODE key, and a Navigation Pad and ENTER Key, all used in conjunction to facilitate programming. This section summarizes the functions of these features in addition to detailing the main areas of the LCD Display.
  • Page 20 LCD display and programming keys LcD DiSpLaY OvERviEw Use the diagram below to familiarize yourself with the layout and different indicators that make up the LCD Display. Memory Card RF Output Status Model Number Status Trainer Model Type Model Name Status Voltage Key Mute Status...

  • Page 21: Transmitter And Receiver Binding

    2.4GHz receiver included with the RDS8000 2.4GHz radio control system, the Safety Link feature is not supported. IMPORTANT The information in this section assumes that you're binding a new SD-10G transmitter and receiver in the default configuration. For more information on Modulation and Safety Link settings, and how they're used, see page 32.

  • Page 22: Mounting The Receiver

    mounting the receiver When mounting the receiver in your model, it's important to mount the receiver exactly as described. In addition, the receiver should be wrapped in foam rubber to protect it from vibration. Failure to mount the receiver antenna wires as described can result in poor reception, or in some cases, complete loss of reception.

  • Page 23: Range Checking (Low Power Mode)

    If, after checking all airborne system components and verifying correct antenna wire mounting, your radio control system still fails the Range Check, DO NOT FLY. Please contact Airtronics Customer Service. Page 23...

  • Page 24: Fail Safe

    This section describes the Fail Safe function setup for the 92104 FHSS-3 receiver included with the SD-10G radio control system. For Fail Safe function setup for use with FHSS-1 receivers, such as the Airtronics 92824 8-Channel, 92674 7-Channel, and 92664 6-Channel Micro 2.4GHz FHSS-1 receivers, see page 36.
