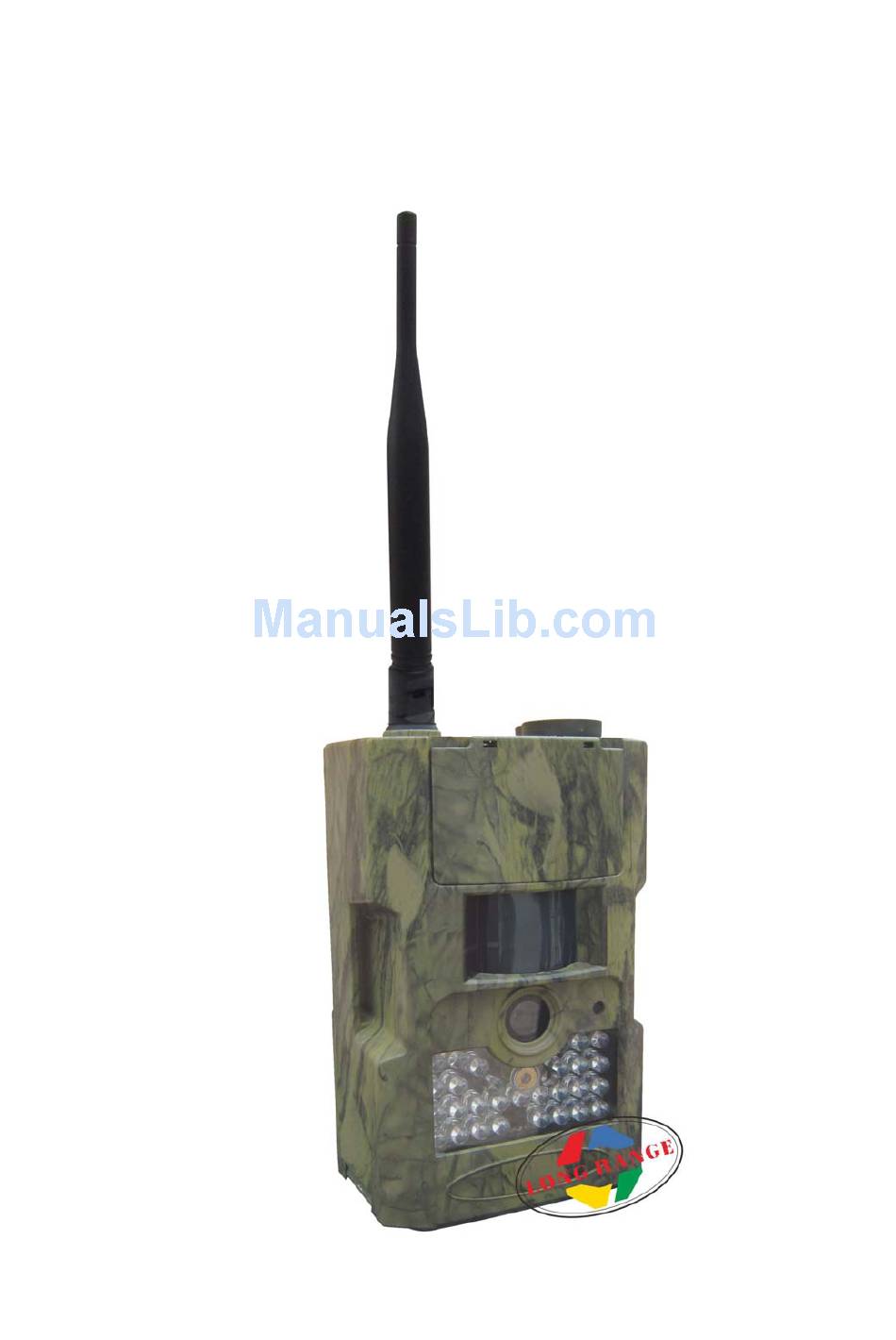

  • Page 1 Infrared Mobile Digital Scouting Camera User’s Manual MG582-8M...

  • Page 2: Table Of Contents

    Content Instruction................... 1 1.1 General Description............... 1 1.2 Camera Body Interfaces ............1 1.3 Remote Control ..............2 1.3.1 Navigating ................ 3 1.3.2 Characters ................ 3 1.4 Shooting Information Display..........3 1.5 MMS/GPRS function............. 4 1.6 Supported Format ..............5 2 Cautions..................
  • Page 3 4.2.2Delete Photo or Video ............. 27 4.2.3Send MMS Manually............28 4.3 Laser Pointer ...............28 4.4 File Numbering..............29 Appendix I: PIR Detection Zone ............30 Appendix : Technical Specifications ..........32 Ⅱ Appendix : Parts List ..............33 Ⅲ...

  • Page 4: Instruction

    MG582-8M 1 Instruction 1 Instruction 1.1 General Description This camera, a digital scouting camera with MMS function, is a digital infrared surveillance camera, triggered by any movement of humans or animals monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 8M pixels) or records video clips (VGA) according to default settings or preset customer settings.

  • Page 5: Remote Control

    MG582-8M 1 Instruction to change the tilt when mounting on an irregular interface e.g. tree. Take a few moments to familiarize yourself with the camera controls and displays. It is helpful to bookmark this section and refer to it when reading through the rest of the manual.

  • Page 6: Navigating

    MG582-8M 1 Instruction The remote control is the input device for the Menu Menu Cancel Cancel camera and is primarily used for customer settings and password input. This is an infrared type wireless remote control. The maximum remote distance is 30 feet.

  • Page 7: Mms/Gprs Function

    MG582-8M 1 Instruction When the camera is turned on (the power switch is slid to ON or TEST position), the current settings will be displayed on screen. 1.5 MMS/GPRS function This camera can send pictures instantly to your mobile device via GSM/GPRS network.

  • Page 8: Supported Format

    MG582-8M 1 Instruction SIM card. (You can disable the PIN of a SIM card via your mobile phone.) There are 4 submenu settings within the MMS/GPRS function. They are Send Mode, MMS Set,GPRS Set and Send to. Send Mode means to choose a way to send MMS (refer to 4.1 table). MMS Set and GPRS Set means to have the right MMS and GPRS setting parameters according to your network.

  • Page 9: Cautions

    MG582-8M 2 Cautions 2 Cautions ★ The working voltage of the camera is 6V. The camera is supplied by four or eight AA batteries. ★ Please install batteries according to shown polarity. ★ Please unlock the write-protect before inserting the SD-card.

  • Page 10: Quick Start Guide

    MG582-8M 3 Quick Introductions 3 Quick Start Guide 3.1 Power Supply To supply power for the camera, four or eight size AA batteries are needed. Open the bottom cover. Confirm that the power switch is in the OFF position and pull out the battery pack by pulling the silver handle. Load the fully charged batteries into the pack according the polarities signs shown below.

  • Page 11: Insert The Sd-Card And The Sim-Card

    MG582-8M 3 Quick Introductions 3.2 Insert the SD-card and the SIM-card Open the bottom cover. Insert an SD-card into the card slot with unmarked side upwards. Please note that the SD-card is on the “write” (not locked) position otherwise the camera will not function correctly.

  • Page 12: Enter Into The Test Mode

    MG582-8M 3 Quick Introductions default settings or previous custom settings. The camera has the sound recording function, so the sound will be embedded in the video clip while capturing a video. 3.4 Enter into the TEST Mode Slide the power switch to the TEST position and enter into the TEST mode.

  • Page 13: 4Send Mms

    MG582-8M 3 Quick Introductions The detailed operations like deleting images or videos will be described in the “Advanced Operations” chapter. 3.4.4 Send MMS When the MMS Mode is set as “Manual”, you can send the selected photo to the preset address in TEST mode. ”Daily Report” and “Instant”...

  • Page 14: Advanced Operations

    MG582-8M 4 Advanced Operations 4 Advanced Operations From the basic operations of the camera previewed in the previous chapter, we know that the camera has three basic operation modes: OFF mode: Power switch is in the OFF position. ON mode: Power switch is in the ON position.
  • Page 15 MG582-8M 4 Advanced Operations pixels. Video Size Choose the video size, e.g. 640×480 (VGA). Set Clock Set camera date and time. Photo Choose the continuous shooting numbers after each Burst triggering. Video Choose duration of recording video. Length Video Choose if the sound recorder will be used.
  • Page 16 MG582-8M 4 Advanced Operations function can be set to Off and will function to the interval settings. The camera sends MMS message through GPRS network, so before using this function, you need to open GPRS service from your service provider. It supports four bands ：850MHz, 900MHz,...
  • Page 17 MG582-8M 4 Advanced Operations information can’t be sent in TEST mode. 2)“Daily Report”: Daily Report works only in the ON mode, which means that the camera will report the summarized information at the preset time (if the preset time is, eg.20:00PM) on how many pictures it had taken per...

  • Page 18: Default Setting

    MG582-8M 4 Advanced Operations on the SD-card. After 24 hours, the camera will send MMS again when it captures photos. If it is on Video mode, the Camera will send only SMS instead of MMS. 4) “OFF”: To disable MMS function.

  • Page 19: Set Camera Mode

    MG582-8M 4 Advanced Operations Format Enter Yes, No Photo Size 8M Pixel 5M Pixel Video Size 640×480 320×240 Set Clock Enter Adjust Clock Photo Burst 1 Photo 2 Photo, 3 Photo Video Length Avi 10 sec Avi 5–60 sec Video Sound 5–60 seconds,...

  • Page 20: Format Sd-Card

    MG582-8M 4 Advanced Operations 1. Shortcut key: Press UP to set the camera mode as Video or press DOWN to set camera mode as Photo in info display of TEST mode. 2. Setting menu: The following shows how to set camera mode to Video, provided that the previous option is Photo: a) Press MENU to display the setting menu.

  • Page 21: Set Video Size

    MG582-8M 4 Advanced Operations ega pixels (8M Pixel or 8MP). The default value is 5 mega pixels. The following shows how to set pixel size as 8M Pixel provided that the previous option is 5M Pixel: a) Press MENU to display the setting menu.

  • Page 22: Set Photo Burst

    MG582-8M 4 Advanced Operations Provided that the date and time are needed to be set to November h, 2010 and 10:30, the steps are as following: a) Press MENU to display the setting menu. b) Press UP or DOWN to select Set Clock.

  • Page 23: Set Video Sound

    MG582-8M 4 Advanced Operations Press LEFT and RIGHT to decreases or increases the value by 1 second. The following shows how to set video length to 5 Seconds provided t the previous value is 10 Seconds: a) Press MENU to display the setting menu.

  • Page 24: 11Set Pir Sensitivity

    MG582-8M 4 Advanced Operations disabled for 1 hour after each triggering. The default value is 1 minute. Press LEFT or RIGHT to decrease or increase the value by 5s or 1 minute. The f ollowing shows how to set triggering interval time to 5 nutes provided that the previous value is 1 Minute.

  • Page 25: 12Set Timer

    MG582-8M 4 Advanced Operations The following shows how to set PIR sensitivity as Low provided that previous option is Normal. a) Press MENU to display the setting menu. b) Press UP or DOWN to select Sense Leve c) Press LEFT or RIGHT to select Low.

  • Page 26: 13Mms Settings

    MG582-8M 4 Advanced Operations MMS Settings 4.1.13 Enter the MMS se tting which provided by the network service vider. There are only four setting to be entered, the steps are as follows: a) Pre ss MENU to display the setting menu.

  • Page 27: 14Gprs Settings

    MG582-8M 4 Advanced Operations Port: (Max. 6 characters) Account and Password :( Some telecom operators need to set account and password to launch MMS.) Number: (Max. 24 characters for each phone numb Email: (Max. 48 characters for each email) Plea...

  • Page 28: 16Set Sending To

    MG582-8M 4 Advanced Operations There are 3 MMS modes: “Manual” works in TEST mode. “Daily ort” and “Instant” work in ON mode. For more information, pleas refer to 4.1 settings menu. The following shows how to set the MMS mode to Instant provided...

  • Page 29: 17Enter Password

    MG582-8M 4 Advanced Operations Press number buttons to key in the digits, letters or punctuations. Press UP to delete. Press OK to save all current setting and return to info display. Press MENU to cancel setting and to return to previous menu.

  • Page 30: Playback

    MG582-8M 4 Advanced Operations c) Press OK to reset to default settings and return to info display. Press MENU to cancel setting and return to info display. Playback In playback m ode, images or videos can be viewed and deleted. An age can also be manually sent by MMS.

  • Page 31: 3Send Mms Manually

    MG582-8M 4 Advanced Operations Press M ENU to display the playback menu. c) Press UP or DOWN to select Delete. One is highlighted. d) To delete the current image, just skip this step. To del ete all images and videos, press LEFT or RIGHT to select All.

  • Page 32: File Numbering

    MG582-8M 4 Advanced Operations ction for pointing to an object or a certain region of interested (ROI). Pres s ﹡ to turn on the laser light in TEST mode and use the tilt uster on the back of camera to adjust the angle of capturing direction.

  • Page 33: Appendix I: Pir Detection Zone

    MG582-8M Appendix I: PIR Detection Zone Appendix I: PIR Detection Zone The figure4 shows the detection range in different detection angle. When the detection angle is 35°, the detection range is 50ft. When the detection angle is 52°, the detection range is 30ft.
  • Page 34 PIR Detection Zone Figure 5 MG582-8M has a new design of PIR and this new PIR is patented. The new patented PIR’s detection range can reach to 22m. The figure 6 shows the compared detection zone between normal PIR and the new patented PIR.

  • Page 35: Appendix : Technical Specifications

    MG582-8M Ⅱ Appendix : Technical Specifications AppendixⅡ: Technical Specifications 5MP Color CMOS, Image Sensor 8MP Interpolation Lens F/NO=3.0 FOV(Field of View)=52° PIR detection range 22M/73F Display Screen 1.5” LCD Memory Card From 8 MB to 32 GB 8MP = 3328 ×2496 Picture Resolution 5MP = 2560×1920...

  • Page 36: Appendix : Parts List

    MG582-8M Appendix Ⅲ: Parts List AppendixⅢ: Parts List Part Name Quantity Digital Camera Wireless Remote Control USB Cable TV cable Belt User Manual Enhanced Antenna Page 33...
