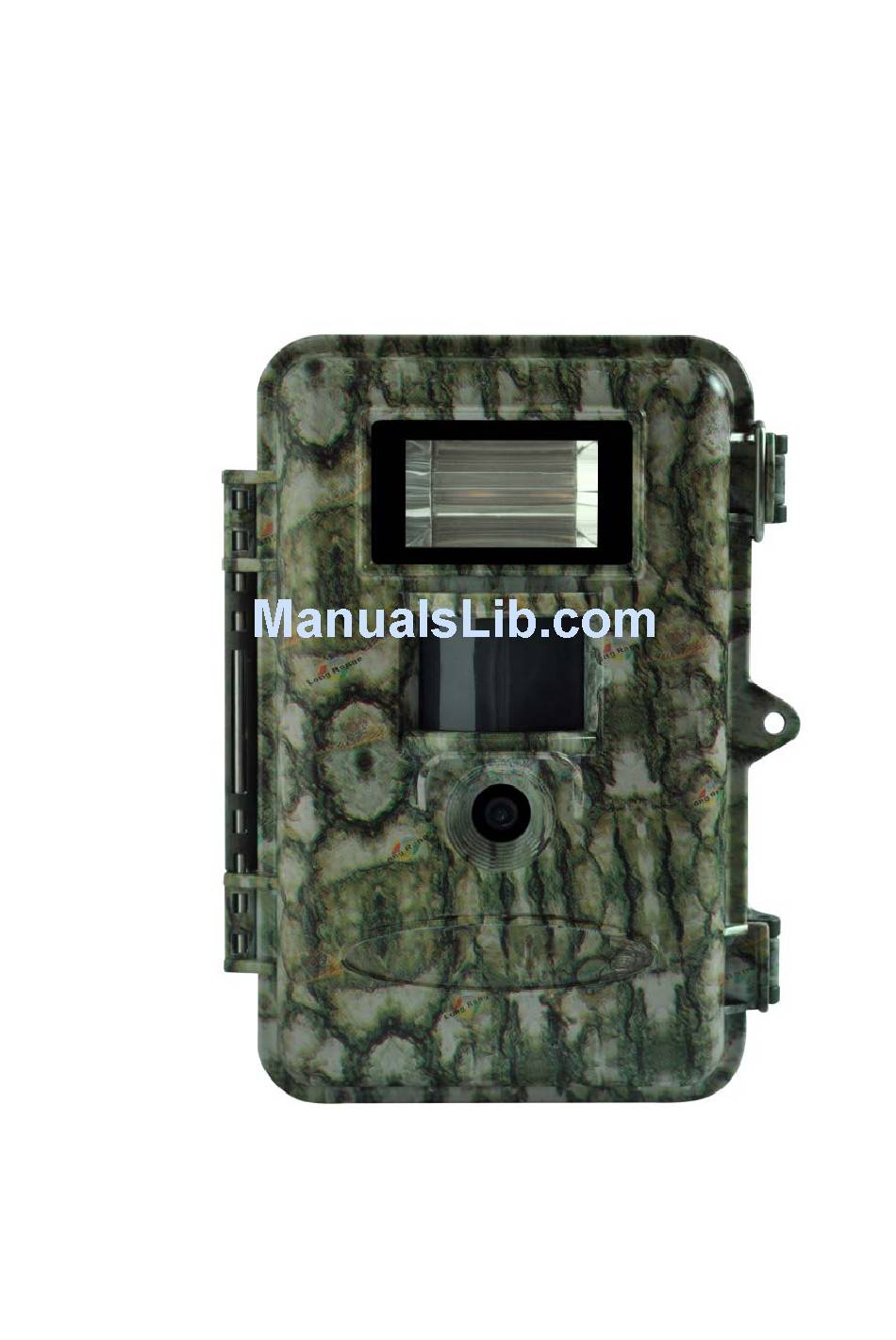

- Page 1 Xenon Flash Digital Scouting Camera User’s Manual Pocket Camera SG565F-8mHD...
-
Page 2: Table Of Contents
Content 1 Instruction.................1 General Description ..........1 Application ...............2 Camera Body Interface..........2 Shooting Information Display .........4 Supported Format ............4 2 Cautions................5 3 Easy Operations ..............7 Power Supply............7 3.2 Insert the SD card.............8 3.3 Power On and Entering into the ON Mode .....8 3.4 Enter into the TEST Mode ........ -
Page 3: Instruction
SG565F-8mHD 1 Instruction 1 Instruction 1.1 General Description This camera is a digital scouting camera with Incandescent Flash. It can be triggered at once by any movement of human (or animal) in a certain region of interested (ROI) monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 8M pixels) or records... -
Page 4: Application
SG565F-8mHD 1 Instruction 1.2 Application This camera can be used as an automatic surveillance device for guarding and recording unexpected intrusion to homes, shops, schools, depots, offices, taxis, work sites, etc. It can also be used as a trail camera for hunting or monitoring animals by recording the traces of wild animals. - Page 5 SG565F-8mHD 1 Instruction Fig. 1 : Interface view Fig. 2 : Inner view Page...
-
Page 6: Shooting Information Display
SG565F-8mHD 1 Instruction 1.4 Shooting Information Display When the camera is turned on (the power switch is slid to ON position), shooting information will be displayed in the monitor. Fig. 3 : Monitor display 1.5 Supported Format Item Format Image Video File format FAT32... -
Page 7: Cautions
SG565F-8mHD 2 Cautions 2 Cautions ★ The working voltage of the camera is 6V. It is supplied by eight or four AA batteries. ★ Please insert the SD card when the power switch is at OFF position before testing the camera. - Page 8 SG565F-8mHD 2 Cautions stop functioning properly. Please don’t disassemble the camera. Fig. 4 : Upgrade caution Page...
-
Page 9: Easy Operations
SG565F-8mHD 3 Easy Operations 3 Easy Operations 3.1 Power Supply To supply power for the camera, eight AA size batteries are needed. Open the camera to confirm that the power switch is at OFF position. Install the fully charged batteries into the depot according to the polarities sign shown below. -
Page 10: Insert The Sd Card
SG565F-8mHD 3 Easy Operations Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to environment human health from uncontrolled waste disposal, recycle responsibly to promote the sustainable reuse of material resources. - Page 11 SG565F-8mHD 3 Easy Operations OFF mode: to turn off the camera. TEST mode: to set operational parameters or to playback the photos via display screen. ON mode: to work at surveillance state. Before switching on, please pay attention to the following: 1.
-
Page 12: Enter Into The Test Mode
SG565F-8mHD 3 Easy Operations mode After switching on the camera, the motion indication LED (red) will blink for about 10 seconds. The 10 seconds is a buffering time before autonomic capturing photos or videos, e.g. for closing and locking the bottom cover, fixing the camera on a tree, and walking away. -
Page 13: Power Off
SG565F-8mHD 3 Easy Operations be shown in the LCD screen on the control. Press UP to view the previous image and press DOWN for the next. Please note that video cannot be played in the LCD screen and only thumbnail of the video is showed. 3.5 Power Off Switch the camera to OFF position to power off the camera. -
Page 14: Advanced Operations
SG565F-8mHD 4 Advanced Operations 4 Advanced Operations From the basic operations of the camera in the previous chapter, we know that the camera has three basic operation modes: OFF mode: power switch is at OFF position. ON mode: power switch is at ON position. TEST mode: power switch is at ON position and the control needs to be connected. - Page 15 SG565F-8mHD 4 Advanced Operations mode. Setting menu: press RIGHT to select Photo or Video mode, then press OK to save your setting. using white flash, camera can take color images day and night, but video can just work under sufficient daylight. If you set video mode, it will turn to camera mode automatically at night.
- Page 16 SG565F-8mHD 4 Advanced Operations Choose sensitivity of PIR. This parameter defines the sensitivity of the PIR. There are three values: High, Normal, and Low. The default value is “Normal.” The higher, the easier the motion sensor would be triggered and taking more pictures or recording more videos.
-
Page 17: Default Settings
SG565F-8mHD 4 Advanced Operations will be deleted. Default Restore all customer settings to default values. Table 2 Setting Items 4.1.1 Default Settings Default settings are listed below: Setting Default Options Submenu Items Camera Photo Video Mode Adjust Set Clock Enter Clock Photo Size 5M Pixel... -
Page 18: View Image Or Video
SG565F-8mHD 4 Advanced Operations Format Enter Yes, No Default Save Table 3 Default Settings 4.1.2 View Image or Video Switch to TEST mode and enter into info display, press OK to view the latest pictures on the wired control screen and then UP or DOWN to see other pictures. -
Page 19: File Numbering
SG565F-8mHD 4 Advanced Operations 4.2 File Numbering Images and videos are saved in the pre-named folder. File numbering continues by adding one to the last number for each new image or video. The saving names are like IMAG0001.JPG or IMAG0001.AVI. Through the suffix you can distinguish whether the file is an image (with suffix .jpg) or a video (with suffix .avi). -
Page 20: Mounting The Camera
SG565F-8mHD 5 Mounting the Camera 5 Mounting the Camera When you want to use the ON mode of the camera in the outdoors, such as hunting and monitoring the living habits of wild animals, you must mount the device on a certain place properly. -
Page 21: Appendix I: Pir Detection Zone
SG565F-8mHD Appendix Ⅰ: PIR Detection Zone Appendix I: PIR Detection Zone Fig. 7 shows Bolymedia’s 4 kinds of detection range at different detection angles. This camera is extra long range with 55 degree. Fig.7 : PIR detection range The PIR detection angle (α) is just smaller than the field of view (FOV) angle (β). - Page 22 SG565F-8mHD Appendix Ⅰ: PIR Detection Zone Fig. 8 Detection angle vs FOV angle This camera has a new design of PIR which is patented. The new patented PIR’s detection range can reach to 85 ft. Fig. 8 shows the compared detection zone between normal PIR and the new patented PIR.
-
Page 23: Appendixⅱ: Technical Specifications
SG565F-8mHD AppendixⅡ: Technical Specifications AppendixⅡ: Technical Specifications 5MP Color CMOS sensor Image Sensor 8MP Interpolation F/NO=2.2 Lens FOV (Field of View)=60° Detection 85ft Range Memory Card 8MB to 32 GB Image 8MP=3264x2448 Resolution 5MP=2560x1920 Video 1280x720 (25fps) Resolution 640X480 (20fps) PIR Sensor Multi Zone Adjustable... - Page 24 SG565F-8mHD AppendixⅡ: Technical Specifications LED indication (Note the low battery alert LED Low Battery flashes quickly (10Hz) and Alert the motion indication LED flashes slowly (2Hz).) Display Screen LCD display on control Mounting Rope/Belt/Python lock Dimensions 130x 80x 50 mm Operation 5% - 90% Humidity...
-
Page 25: Appendix Ⅲ: Parts List
SG565F-8mHD Appendix Ⅲ: Parts List Appendix Ⅲ: Parts List Part Name Quantity Digital Camera Wired control USB Cable Belt User’s Manual Warranty Card （Version 1.4）...
