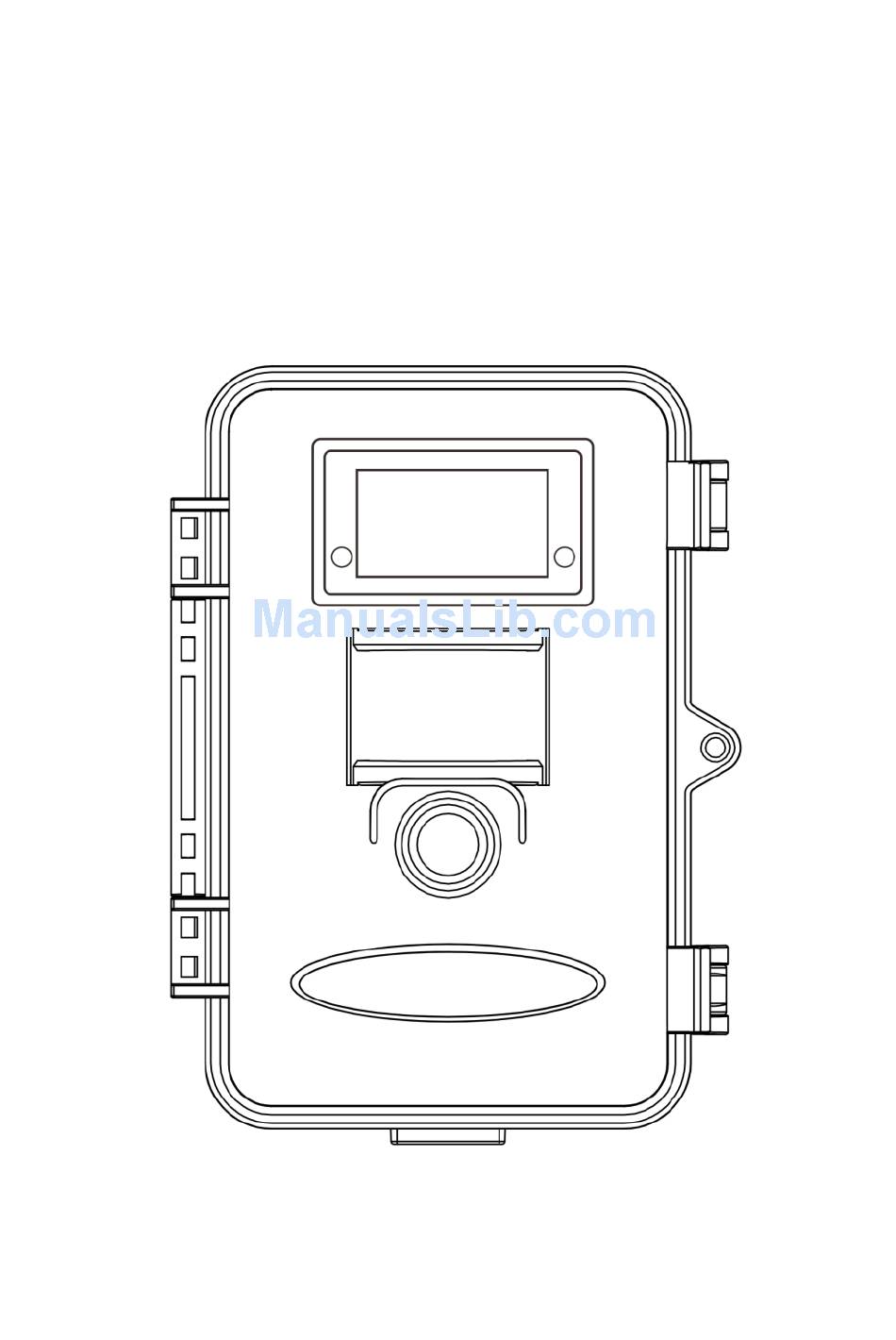

- Page 1 Xenon Flash Digital Scouting Camera User Manual SG565F-14mHD...
-
Page 2: Table Of Contents
Content 1 Instruction .............. 1 1.1 Camera Body Interfaces ........ 1 1.2 General Description ........2 1.3 Application ..........2 1.4 Shooting Information Display ..... 3 1.5 Saving Images or Videos ......4 1.6 Cautions ............4 2 Quick Start Guide ..........5 2.1 Power Supply .......... -
Page 3: Instruction
1 Instruction 1.1 Camera Body Interfaces Page 1... -
Page 4: General Description
1.2 General Description This camera is a digital scouting camera with Incandescent Flash. It can be triggered by any movement of human (or animal) in a certain region of interested (ROI) monitored by a highly sensitive Passive Infra-Red (PIR) motion sensor, and then automatically take high quality pictures or video clips. -
Page 5: Shooting Information Display
1.4 Shooting Information Display There is a wired control primarily used for customer settings. When the camera is turned on (with wired control connected to the USB connector), the current settings will be displayed on the screen. Page 3... -
Page 6: Saving Images Or Videos
1.5 Saving Images or Videos The camera uses a standard SD(Secure Digital) memory card to save images(in .jpg format) and videos(in .avi format). SD and SDHC(High Capacity) cards up to 32GB are supported. Before inserting the SD card be sure that the SD card is unlocked. Note: without SD card inserted, the camera will turn off automatically. -
Page 7: Quick Start Guide
SG565F-14mHD 2 Quick Start Guide 2 Quick Start Guide 2.1 Power Supply Use 8 AA batteries or 6V external power supply to support the camera. Use high-capacity and high-performance alkaline betteries(recommended), rechargeable Lithium batteries or rechargeable Nimh batteries. Caution: Risk of explosion if battery is replaced by an incorrect type. -
Page 8: Power On And Enter Into On Mode
SG565F-14mHD 2 Quick Start Guide no SD card is inserted, the camera will shut down automatically. 2.3 Power on and Enter into ON Mode Before switching on, please pay attention to the follows: 1. Avoid temperature and motion disturbances in... -
Page 9: Customer Settings
SG565F-14mHD 2 Quick Start Guide 2.4 Customer Settings Press MENU on the remote control to manually customize the camera settings which displayed on the screen. The detailed operations will be described in “Advanced Operations” chapter. 2.5 Manual Capturing Press SHOT on the remote control to manually... -
Page 10: Item Settings
SG565F-14mHD 3 Item Settings 3 Item Settings 3.1 Camera Menu To view the camera settings menu, press MENU on the remote control in SETUP mode. Use “▲” or “▼” key to select the sub-menu, use “►” key to select the different options. - Page 11 SG565F-14mHD 3 Item Settings Clock the date and time of the device by setting this parameter when necessary, e.g., after every battery change. The date format is month/day/year, the time format is hour: minute: second. Photo Choose the photo size, e.g. 14MP, 10MP Size or 5MP.
-
Page 12: Default Setting
SG565F-14mHD 3 Item Settings of the PIR is strongly related to the temperature. Higher temperature leads to lower sensitivity. Therefore it is suggested to set a higher sensitivity for high temperature environment. This parameter indicates how long the PIR (Passive Infrared motion sensor) will be disabled after each triggering in ON mode. -
Page 13: Power Off
SG565F-14mHD 3 Item Settings Setting Default Options Submenu Items Camera Photo Video Mode Set Clock Enter Adjust Clock Photo Size 14MP 10MP Video Size 1280x720 640x480 Video 10 sec 5–60 sec Length High, Normal Sensitivity Low ,Off 0–55 Sec, 5 Sec Interval 1–60 Min... -
Page 14: Mounting The Camera
SG565F-14mHD 4 Mounting the Camera 4 Mounting the Camera When use the camera in outdoor environment, such as hunting or monitoring the living habits of wild animals, you need to mount the device on a certain place properly. It is recommended to mount the... -
Page 15: Pir Detection Zone
SG565F-14mHD 5 PIR Detection Zone 5 PIR Detection Zone This camera has a new design of PIR and the new PIR is patented. The new patented PIR’s detection range can reach to 100ft in good environments. Following picture shows the compared detection zone between normal PIR and the new patented PIR. -
Page 16: Technical Specifications
SG565F-14mHD 6 Technical Specifications 6 Technical Specifications 5MP Color CMOS, Image Sensor 10MP and 14MP Interpolation F/NO=3.1 Lens FOV(Field of View)=52° PIR detection range 100ft Display Screen LCD display on control Memory Card From 8 MB to 32 GB 14MP=4320×3240 Picture Resolution 10MP = 3648 ×2736... -
Page 17: Parts List
SG565F-14mHD 7 Parts List 7 Parts List Part Name Quantity Digital Camera USB Cable Wired control Belt User Manual Warranty Card Version 1.6 Page 15...
