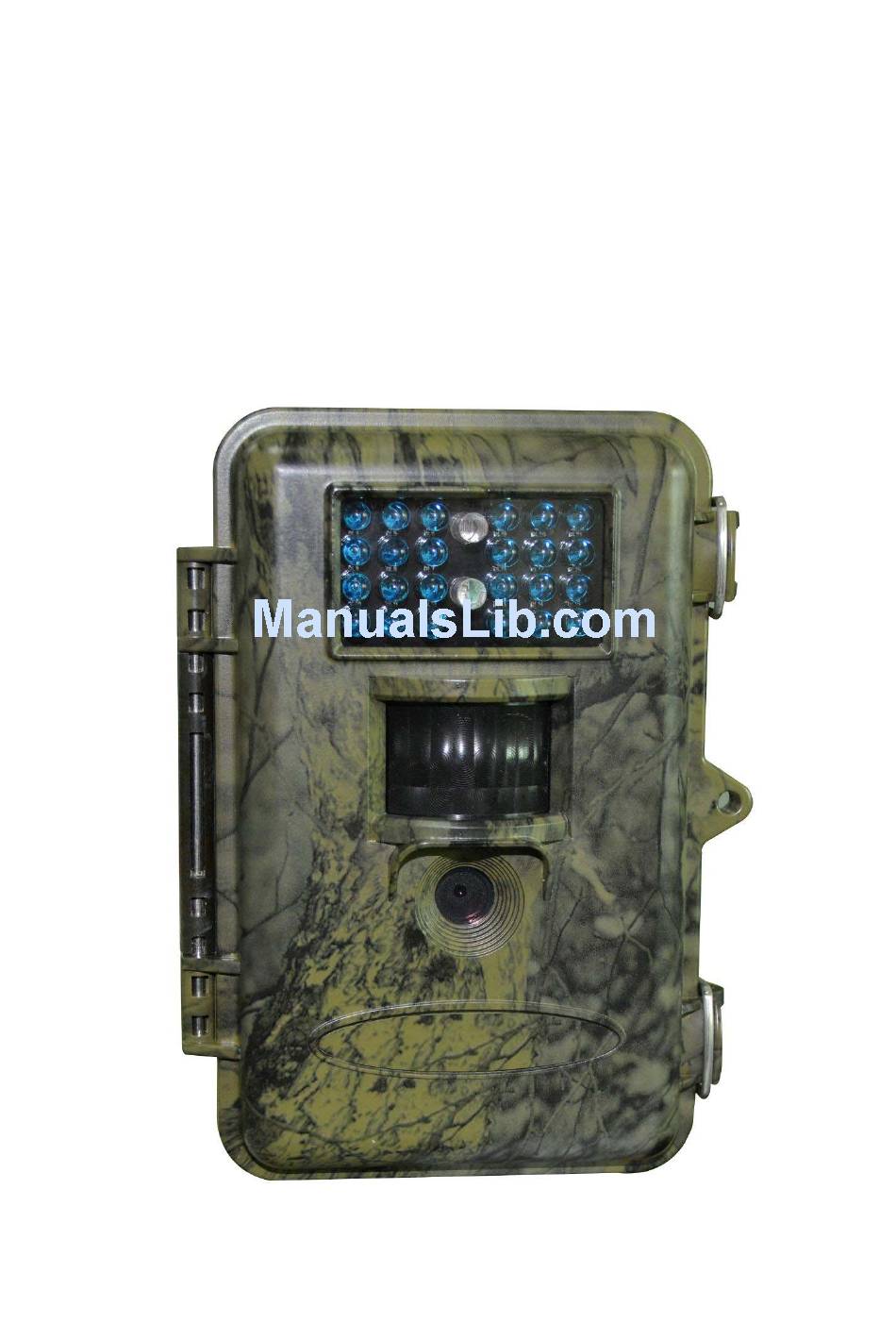

- Page 1 Infrared Digital Scouting Camera User’s Manual SG560-8MHD...
-
Page 2: Table Of Contents
Content 1 Instruction...................1 1.1 General Description............1 1.2 Application................1 1.3 Diagram of Camera functional indicators.....1 1.4 Shooting Information Display.........3 1.5 Saving Images or Videos...........4 2 Cautions ..................5 3 Easy Operations.................6 3.1 Loading batteries ...............6 3.2 Insert the SD-card.............6 3.3 Power on and Entering into the ON Mode ....7 3.4 Enter into the TEST Mode..........7 3.4.1 Customer Settings ............8 3.4.2 Manual Capturing............8... -
Page 3: Instruction
Pocket Camera SG560-8MHD 1 Instruction 1 Instruction 1.1 General Description This camera surveillance device working automatically. It can be triggered by any movement of human (or animals) in a certain region of interest (ROI) monitored by a highly sensitive Passive Infra-Red (PIR) motion sensor，and then take high quality pictures (up to 8... - Page 4 Pocket Camera SG560-8MHD 1 Instruction connector, SD-card slot, TV output and external DC power connector. On the head of camera, there is a lock hole for theft-proof. Take a few moments to familiarize with the camera controls and displays. It is helpful to bookmark this section and refer to it when reading through the rest of the manual.
-
Page 5: Shooting Information Display
Pocket Camera SG560-8MHD 1 Instruction Figure 2: Bottom view 1.4 Shooting Information Display When the camera is turned on (the power switch is slid to ON position), the shooting information will be displayed in the monitor. Figure 3: LCD Display... -
Page 6: Saving Images Or Videos
Pocket Camera SG560-8MHD 1 Instruction 1.5 Saving Images or Videos The camera uses a standard SD (Secure Digital) memory card to save images (in .jpg format) and videos (in .avi format). SD and SDHC (High Capacity) cards up to a maximum 32 GB capacity are supported. Before inserting the SD card be sure that the SD card is unlocked. -
Page 7: Cautions
Pocket Camera SG560-8MHD 2 Cautions 2 Cautions ★ The working voltage of the camera is 6V. The camera is supplied by four AA batteries. ★Must insert the SD card before power on camera. The camera will not work properly unless a working SD card is detected by the camera ★Please unlock the write-protect before inserting the SD... -
Page 8: Easy Operations
Pocket Camera SG560-8MHD 3 Quick Introductions 3 Easy Operations 3.1 Loading batteries Use 8 or 4 AA batteries or 6V external battery for power supply (Fig. 4). Fig. 4: Battery Configurations of 8 or 4 batteries Please use high-capacity and high-performance alkaline batteries (recommended), rechargeable Lithium batteries or rechargeable NiMH batteries. -
Page 9: Power On And Entering Into The On Mode
Pocket Camera SG560-8MHD 3 Quick Introductions 3.3 Power on and Entering into the ON Mode Before switching on, please pay attention to the follows: 1. Avoid temperature and motion disturbances in front of the camera such as big leaf, curtain, air-conditioner, air outlet of the chimney and other heat sources to prevent from false triggering. -
Page 10: Customer Settings
Pocket Camera SG560-8MHD 3 Quick Introductions Fig 5 Connect the control 3.4.1 Customer Settings Press MENU on the control to enter into menu settings. The camera can be taken over control to manually customize the camera settings which display on the LCD screen on the camera. -
Page 11: Power Off
Pocket Camera SG560-8MHD 3 Quick Introductions only thumbnail of the video is showed. The detailed operations like deleting images or videos will be described in “Advanced Operations” chapter. 3.5 Power Off Switch the camera to OFF position to power off the camera. -
Page 12: Advanced Operations
Pocket Camera SG560-8MHD 4 Advanced Operations 4 Advanced Operations From the basic operations of the camera in previous chapter, we know that the camera has three basic operation modes: OFF mode: Power switch is at OFF position. ON mode: Power switch is at ON position. - Page 13 Pocket Camera SG560-8MHD 4 Advanced Operations You can change the date and time when necessary, e.g., after every battery change. The date format is month/day/year, the time format is Set Clock hour: minute: second. Press “►” to select item, press “▲” or “▼” to change the value. The valid value for year is between 2009 and 2050.
-
Page 14: Default Set
Pocket Camera SG560-8MHD 4 Advanced Operations If you choose “Format SD”, the system will delete all images or videos stored in the SD card. Format SD So make sure that you have made a backup of important data. Default Set Restore all customer settings to default values. -
Page 15: Delete Image Or Video
Pocket Camera SG560-8MHD 4 Advanced Operations Note: Only pictures can be playback in the LCD display. When view images, the total number of all images in the SD-card and the index of the displaying image will be shown respectively. 4.1.4 Delete Image or Video View the image (or video) which will be deleted. -
Page 16: Trouble Shooting
Pocket Camera SG560-8MHD 5 Trouble shooting Trouble shooting There is something in front of the camera lens. Is the camera broken? Fig 6 Floating IR-Cut Lens A: The camera is not broken. It’s an IR-Cut filter. When the camera is powered on, the IR-Cut will be reset and cover the lens. - Page 17 Pocket Camera SG560-8MHD Appendix I: PIR Detection Zone Appendix I: PIR Detection Zone The figure 7 shows the detection range in different detection angle. When the detection angle is 35°, the detection range is 50ft (15m). When the detection angle is 52°, the detection range is 30ft (9m).
- Page 18 Pocket Camera SG560-8MHD Appendix I: PIR Detection Zone This camera has a new design of PIR and this new PIR is patented. The new patented PIR’s detection range can reach to 82ft (25m) (in good environments). The figure 9 shows the compared detection zone between normal PIR and the new patented PIR.
-
Page 19: Appendixⅱ: Technical Specifications
Pocket Camera SG560-8MHD AppendixⅡ: Technical Specifications AppendixⅡ: Technical Specifications Image Sensor 8MP interpolation F/NO=3.1mm Lens FOV(Field of View)=52° Detection range Up to 85ft（25m） Display Screen 1.5” LCD Lighting Range 56ft(17M) Memory Card Up to32 GB 8MP = 3328 ×2496 Picture Resolution 5MP = 2560×1920... -
Page 20: Appendixⅲ: Parts List
Pocket Camera SG560-8MHD AppendixⅢ: Parts List AppendixⅢ: Parts List Part Name Quantity Digital Camera Wired control USB Cable Belt User Manual （version 1.3） Page 18...
