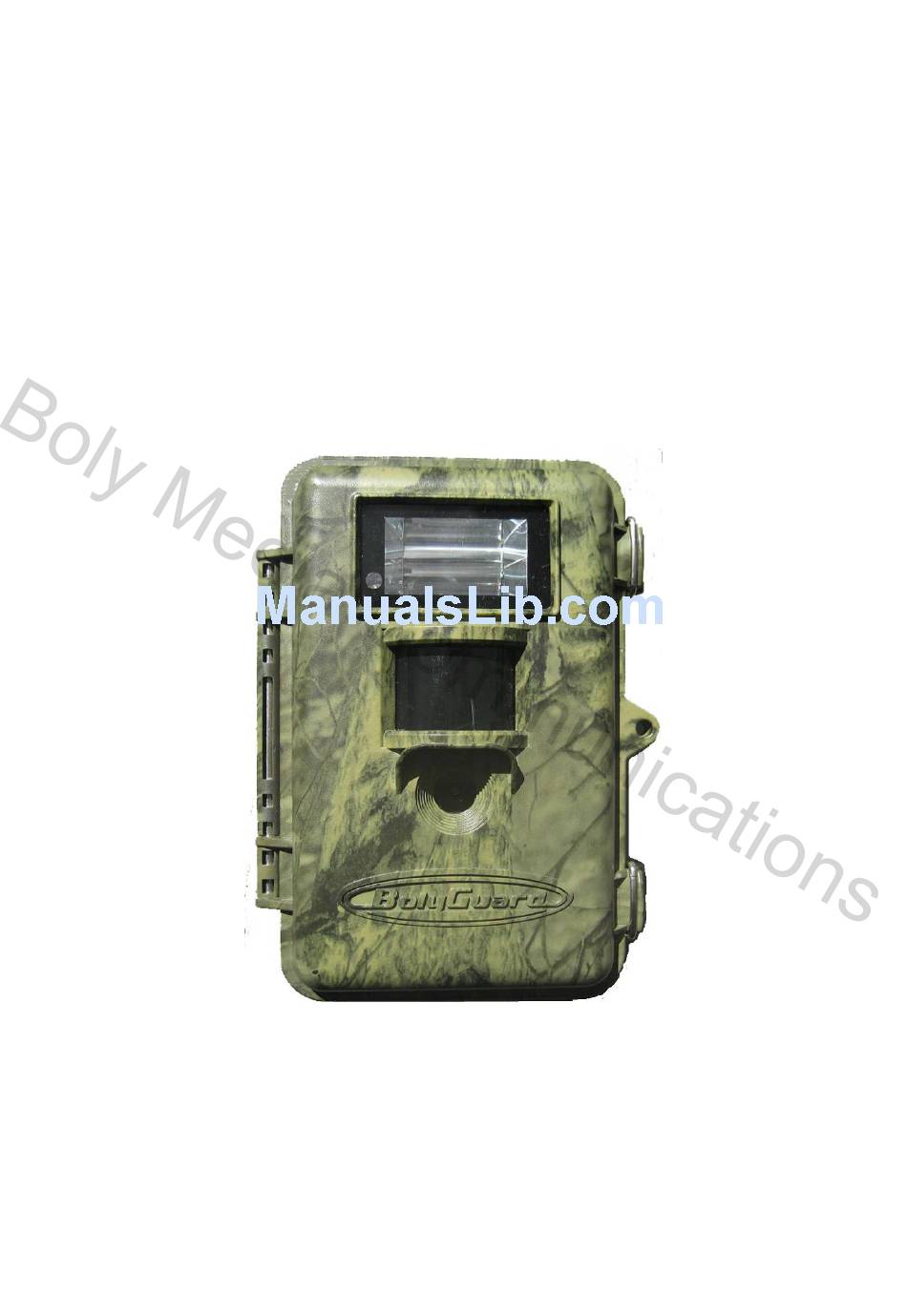

- Page 1 Flash Digital Scouting Camera User’s Manual Pocket Camera SG560F...
-
Page 2: Table Of Contents
Content Instruction ..........................1 General Description ......................1 Camera Body Interfaces....................1 Shooting Information Display..................1 Supported Format......................2 Cautions ...........................3 Easy Operations ........................4 Power Supply........................4 Insert the SD-card......................4 Power on and Entering into the ON Mode ..............4 Enter into the TEST Mode .....................5 Customer Settings ....................5 3.4.1 Manual Capturing ....................5 3.4.2... -
Page 3: Instruction
Pocket Camera SG560F 1 Instruction 1 Instruction 1.1 General Description This camera, a digital scouting camera, is a surveillance camera working automatically. It can be triggered at once by any movement of human (or animals) in a certain region of interested (ROI) monitored by a high sensitive Passive Infrared (PIR) motion sensor, and then automatically captures high quality pictures (up to 5M pixels) or records video clips (VGA) according to default settings or preset customer settings. -
Page 4: Supported Format
Pocket Camera SG560F 1 Instruction 3. Image size 4. SD card 5. Battery level 2. Image mode 6. Video mode 1. Time Stamp 7. Date (M:D:Y) 8. Time (H:M:S) 9. Available space 10. Number of images 1.4 Supported Format Item... -
Page 5: Cautions
Pocket Camera SG560F 2 Cautions 2 Cautions ★ The working voltage of the camera is 6V. The camera is supplied by four AA batteries. ★ Please insert the SD-card when the power switch is at OFF position before testing the camera. The camera has no internal memory for saving images or videos. If no SD-card is inserted, the camera will shut down automatically after a continuous indication sound. -
Page 6: Easy Operations
Pocket Camera SG560F 3 Quick Introductions 3 Easy Operations 3.1 Power Supply To supply power for the camera, four AA size batteries are needed. Open the bottom cover. Confirm that the power switch is at the OFF position. Install the fully charged batteries into the depot according the polarities sign shown below. -
Page 7: Enter Into The Test Mode
Pocket Camera SG560F 3 Quick Introductions In TEST mode, it requires to connect the control then to do further customizing settings, when the user complete the settings, it requires to unplug the control to enter into normal use, that is, if the wired control still be connected with the camera, the camera will not work. -
Page 8: Advanced Operations
Pocket Camera SG560F 4 Advanced Operations 4 Advanced Operations From the basic operations of the camera in previous chapter, we know that the camera has three basic operation modes: de: Power switch is at OFF position. 1. OFF 2. ON mode: Power switch is at ON position. -
Page 9: Default Settings
Pocket Camera SG560F 4 Advanced Operations 4.1.1 Default Settings Default settings are listed below: Setting Items Default Options Submenu Camera Mode Image Video Format Enter Yes, No Image Size 5M Pixel 3M Pixel Video Size × × Set Clock Enter... -
Page 10: Set Image Size
Pocket Camera SG560F 4 Advanced Operations 4.1.4 Set Image Size The following shows how to set pixel size as 3M Pixel provided that the previous option is 5M Pixel: a) Press MENU to display the setting menu. b) Press UP or DOWN to select Image Size. -
Page 11: Set Pir Sensitivity
Pocket Camera SG560F 4 Advanced Operations that the previous value is 1 Minute. a) Press MENU to display the setting menu. b) Press UP or DOWN to select Interval. c) Press RIGHT to decrease or increase to 5 Minutes. d) Press OK to save the current setting and the option will be un-highlighted. -
Page 12: Delete Image Or Video
Pocket Camera SG560F 4 Advanced Operations a) Switch to TEST mode and enter into info display. b) Press OK to view the latest picture (or video) in LCD screen on camera, TV monitor or Image viewer with TV-in connector. c) Press NEXT to start playing the video clip in TV monitor. NOTE: Video clip cannot be played in LCD screen on the control. -
Page 13: Appendixⅰ: Technical Specifications
Pocket Camera SG560F AppendixⅠ: Technical Specifications AppendixⅠ: Technical Specifications 5MP Color CMOS Image Sensor F/NO=3.0mm Lens FOV(Field of View)=52° 2m to 10m Detection sensitivity From 8 MB to 8 GB Memory Card 5MP = 2560 1920 × Picture Resolution 3MP = 2048 1536 ×... -
Page 14: Appendixⅱ: Parts List
Pocket Camera SG560F Appendix Ⅱ: Parts List AppendixⅡ: Parts List Part Name Quantity Digital Camera Wired control USB Cable Belt User Manual Page 12...
