- Page 2 Failure to follow these instructions may void the warranty. THIS UNIT CONTAINS POTENTALLY LETHAL VOLTAGES. TO PREVENT ELECTRIC SHOCK OR HAZED, DO NOT REMOVE THE POWER AMPLIFIER MODULE, INPUT PANEL OR AC INPUT PANEL. NO UER SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED ISP TECHNOLOGIES SERVICE PERSONNELL.

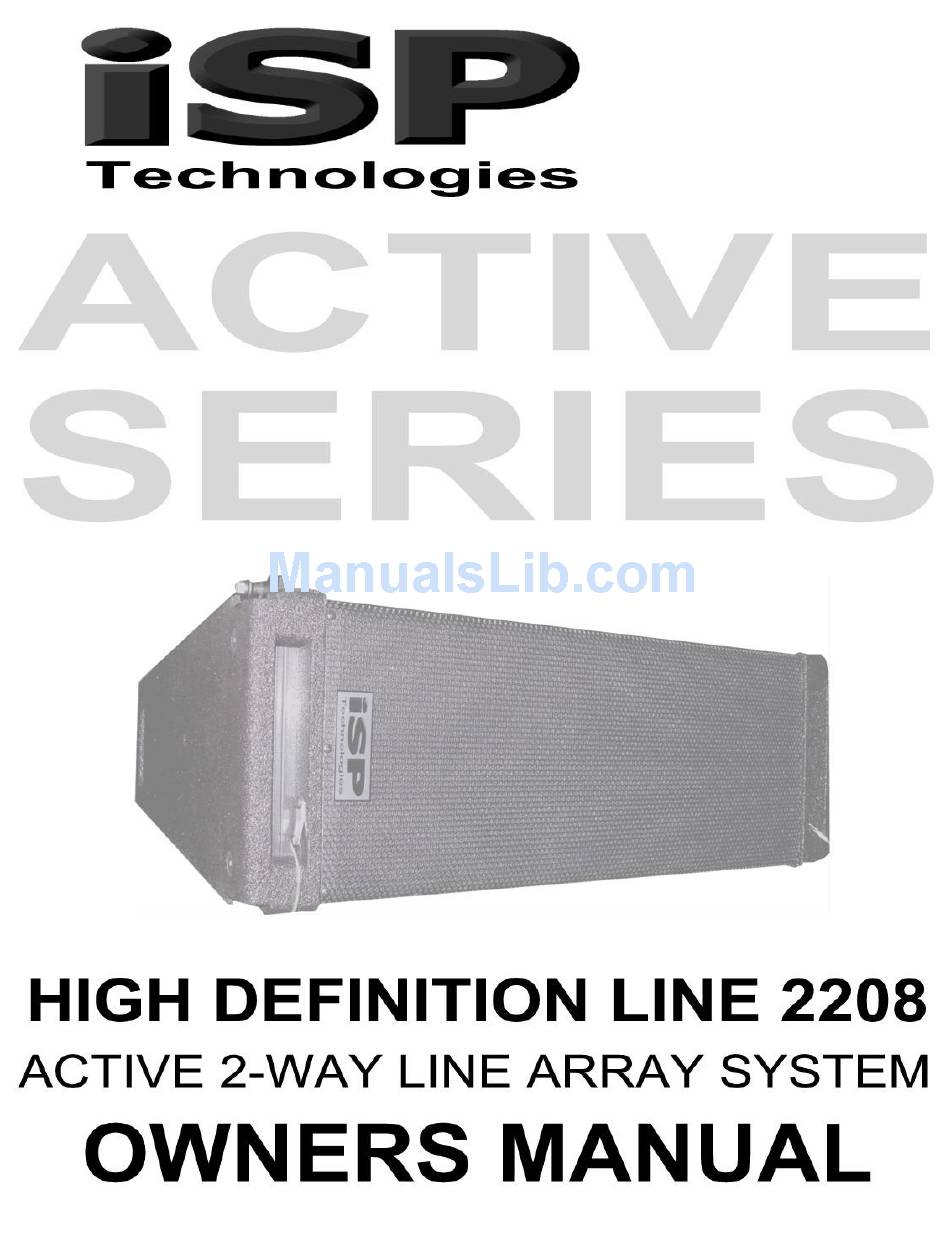

- Page 3 G-16 when measured on the A scale of a standard sound level meter at slow response. INTRODUCTION Thank you for purchasing ISP Technologies HIGH DEFINITION LINE 2208 active speaker system. The HIGH DEFINITION LINE 2208 is a high output two-way active speaker system designed to deliver HI-FI sound quality for high SPL sound reinforcement applications.
- Page 4 ISP Technologies is not responsible for the application of its products for any purpose or the misuse of this information for any purpose. ISP is also not responsible for the abuse of its...
- Page 5 REAR PANEL CONNECTION DIAGRAM...
- Page 6 THERMAL CONDITIONS The ISP HIGH DEFINITION LINE 2208 Series is capable of producing in excess of 850 watts at full power. This generates heat that must be dissipated in order to maintain reliability and insure the amplifier components stay within their operating temperature specs. To accomplish this the amplifier is mounted on a heatsink that is internal to the cabinet.
- Page 7 SPECIFICATIONS (per box) Configuration: 2-way LF Drivers: 2 x 8 inch, high sensitivity, neo magnet, water resistant cones. HF Drivers: 2 x 2.6 inch compression, 1.4 inch throat, neo magnet, polymer diaphragm, on multiple-aperture waveguide. Coverage: 100 H x 10 V Frequency Resp.: 68 Hz to 16 kHz Maximum peak SPL:...
- Page 8 Any damage resulting from the misuse or the failure to follow the precautions and instructions will void the warranty. In the event that the unit needs to be repaired. Please return the unit to ISP Technologies directly. Simply repack the unit, send a copy of the original receipt, a note stating the...
