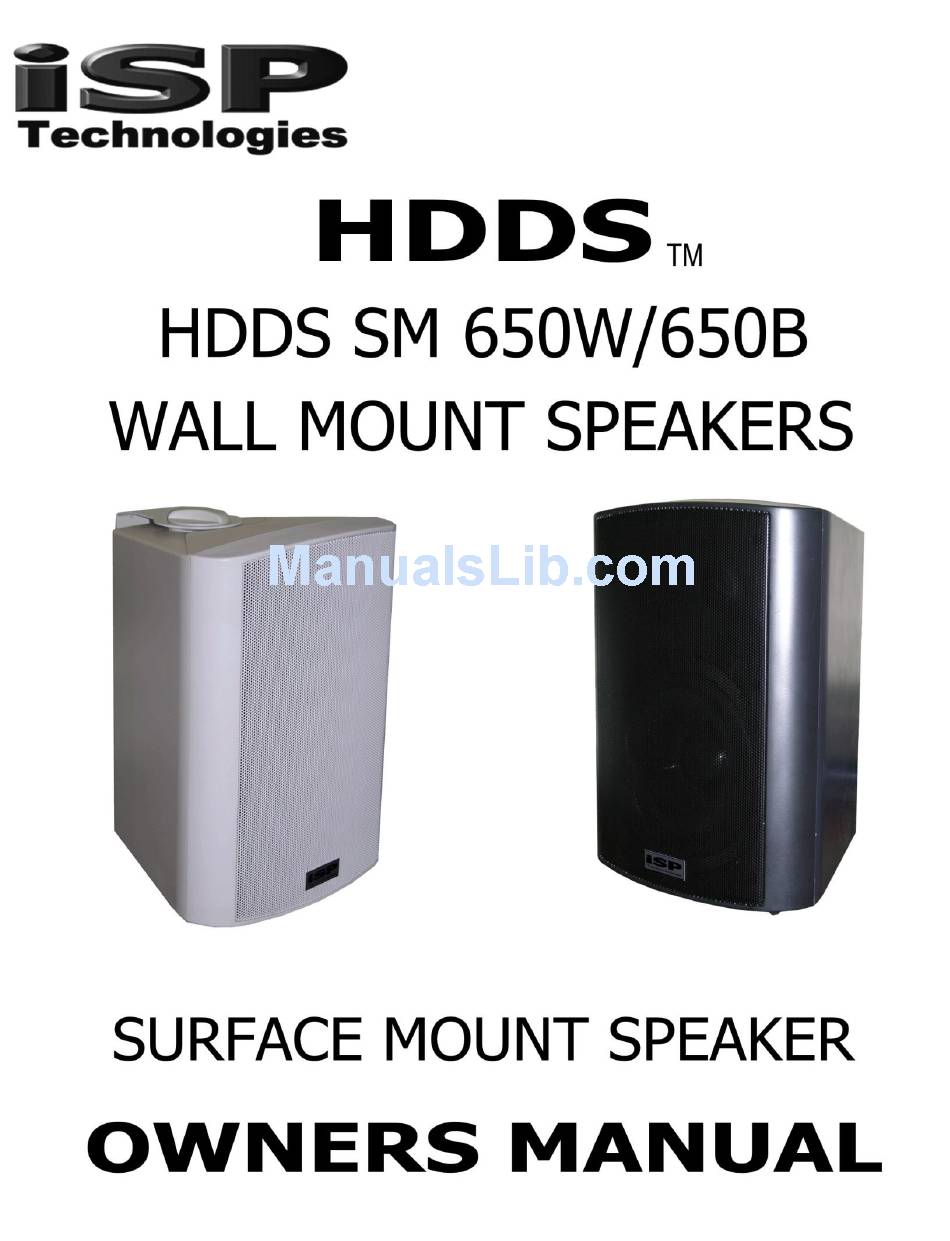

iSP Technologies HDDS SM 650W Owner's Manual

Hdds series wall mount speakers
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the HDDS SM 650W and is the answer not in the manual?

Questions and answers

Related Manuals for iSP Technologies HDDS SM 650W

Summary of Contents for iSP Technologies HDDS SM 650W

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS! Please read this very carefully before operating this unit  Read ALL instructions carefully before using this unit.  Do not operate this unit near water, in the rain, or where there is moisture. If this warning is ignored a serious electrical shock or death may occur.
  • Page 3 INTRODUCTION Thank you for your purchase of the ISP Technologies High Definition Distributed System SM650 Surface Mount Speaker. This product provides a new level of performance in distributed audio systems allowing greater system flexibility and easy installation of distributed sound.

  • Page 4: Operation

    OPERATION The HDDS Master Control Module is the Master control center for distributed sound systems using the HDDS technology. The Master Control Module includes six zones that can be used independently or can be linked to work together allowing the system designer the flexibility to set up any system with the desired configuration.
  • Page 5 SM650 also includes a level control and a power jack that allows connection to an external 18VAC power adaptor available from ISP Technologies. Connect the input to the output connector on a HDDS Master Control Module. A Cat5 cable is used to connect the output connector to another SM650 or to connect to any other ISP Technologies HDDS powered speaker.
  • Page 6 SPEAKER POWER: The HDDS system distributes low voltage Alternating Current over the Cat5 cable plus high level balanced audio and is capable of greater than 30 watts continuous power per speaker SM650. Each of the three outputs A, B and C are capable of delivering up to 7 amps of output current.
  • Page 7 Refer installation to a qualified installer to ensure proper mounting to overhead structures. The SM650 includes a U bracket for easy install. When mounting requires additional swivel mount capabilities use ISP Technologies SM10 swivel mount bracket shown below. The swivel mount bracket threads into one of the threaded inserts on the back of the SM650 and allows wall mount or ceiling mounting of the speaker with full swivel capabilities.
  • Page 9 HDDS SM650 SPECIFICATIONS POWER CONSUMPTION: 400 mA typical 1.8 amps Maximum AUDIO INPUT: Balanced 50k input impedance Maximum – Minimum level 70db LEVEL CONTROL: COVERAGE: 90 Vertical x 90 Horizontal 55Hz – 20Khz FREQUENCY RESPONES: WEIGHT: 8LBS SPEAKERS: 6-1/2 Polypropylene woofer 5/8 Polycarbonate Tweeter w ferro fluid 5/8 Piezoelectric Super Tweeter Includes “U”...

  • Page 10: Warranty And Service

    In the event that the unit needs to be repaired, please return the unit to ISP Technologies directly. Simply repack the unit, send a copy of the original receipt, a note stating the problem, and send it to: ISP Technologies, LLC 5479 Perry Drive Unit B Waterford, MI 48329 Attn: Repair Dept.

This manual is also suitable for:

Hdds sm 650b
