Summary of Contents for iSP Technologies HDDS Series
- Page 2 PRECAUTIONS! Please read this very carefully before operating this unit Read ALL instructions carefully before using this unit. Do not operate this unit near water, in the rain, or where there is moisture. If this warning is ignored a serious electrical shock or death may occur.

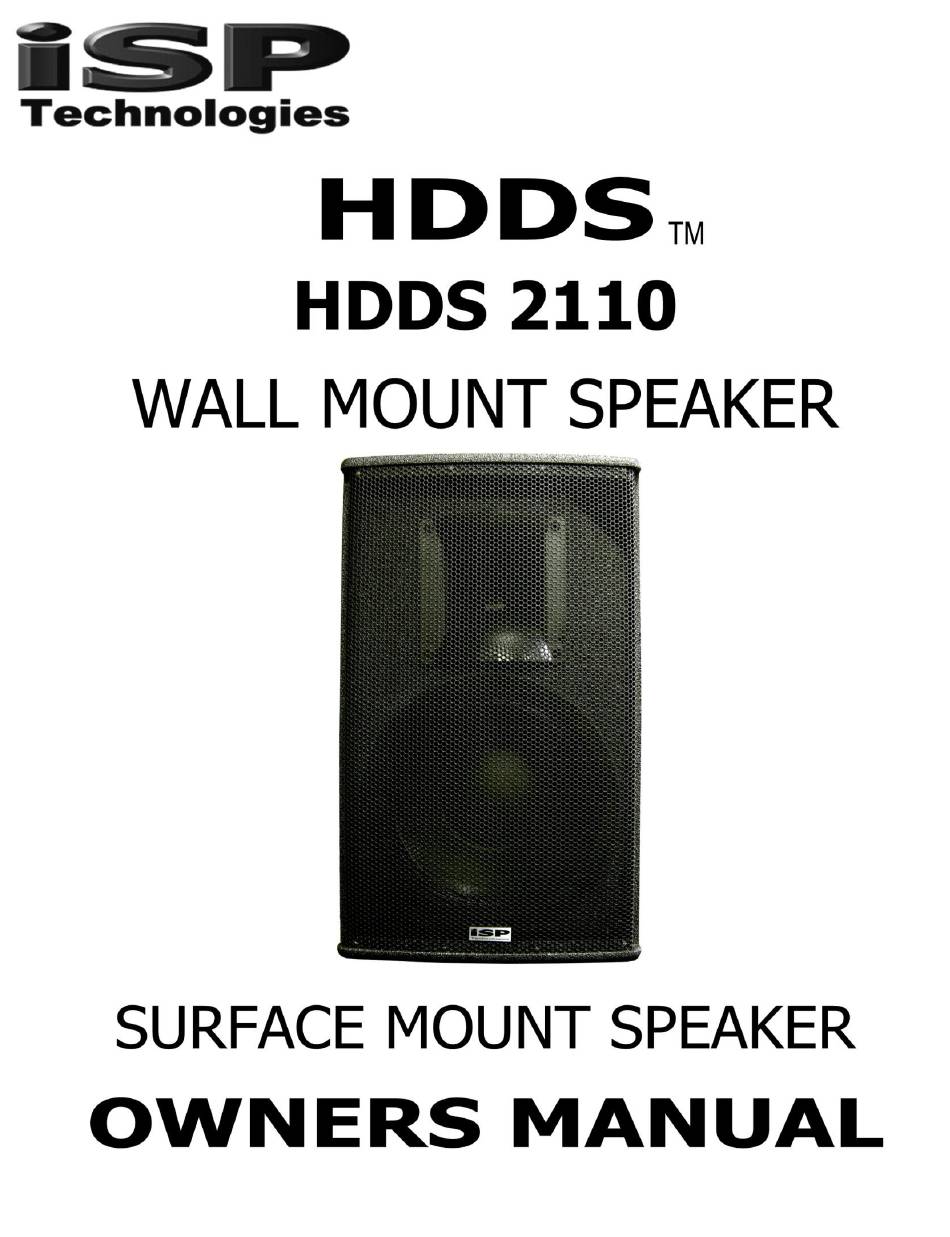

- Page 3 INTRODUCTION Thank you for your purchase of the ISP Technologies High Definition Distributed System HDDS 2110 Surface Mount Speaker. This product provides a new level of performance in distributed audio systems allowing greater system flexibility and easy installation of distributed sound.
-
Page 4: Operation
OPERATION The HDDS Master Control Module is the Master control center for distributed sound systems using the HDDS technology. The Master Control Module includes six zones that can be used independently or can be linked to work together allowing the system designer the flexibility to set up any system with the desired configuration. - Page 5 Rear Panel The rear panel POWER LED will light when power is applied from the Master Control Module. The rear panel of the HDDS 2110 includes two RJ45 input connectors, both for connection to a Master Control Module. A single run of Category 6 cable can be used if the maximum length of CAT6 cable does not exceed 100 feet.
- Page 6 SPEAKER POWER: The HDDS system distributes low voltage Alternating Current over the CAT6 cable plus high level balanced audio and is capable of greater than 220 watts continuous power per HDDS 2210 speaker. Each of the three outputs A, B and C are capable of delivering up to 7 amps of output current.
- Page 7 Mounting the HDDS 2110 Refer installation to a qualified installer to ensure proper mounting to overhead structures. The HDDS 2110 includes a TV mounting bracket for easy install. Follow the mounting instructions included in the separate bracket mounting instructions included with the HDDS 2110.
- Page 8 HDDS 2110 SPECIFICATIONS Speaker Type: 2-way active Low Frequency: 10″ cone High Frequency: 1.3″ titanium diaphragm compression driver Crossover: 4th order LR high pass and low pass High Pass Filter: Switchable 40 Hz or 90 Hz – for use with a subwoofer Maximum SPL: 122 dB peak, 116 dB long-term Nominal Coverage Angle: 80 deg.
-
Page 9: Warranty And Service
In the event that the unit needs to be repaired, please return the unit to ISP Technologies directly. Simply repack the unit, send a copy of the original receipt, a note stating the problem, and send it to: ISP Technologies, LLC 5479 Perry Drive Unit B Waterford, MI 48329 Attn: Repair Dept.
