Summary of Contents for iSP Technologies HDDS SM652-B
- Page 2 PRECAUTIONS! Please read this very carefully before operating this unit Read ALL instructions carefully before using this unit. Do not operate this unit near water, in the rain, or where there is moisture. If this warning is ignored a serious electrical shock or death may occur.

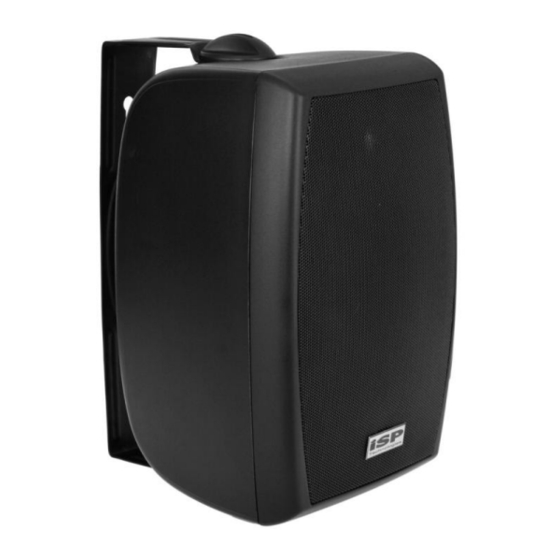

- Page 3 INTRODUCTION Thank you for your purchase of the ISP Technologies High Definition Distributed System SM652 Surface Mount Speaker. This product provides a new level of performance in distributed audio systems allowing greater system flexibility and easy installation of distributed sound.
-
Page 4: Operation
OPERATION The HDDS Master Control Module is the Master control center for distributed sound systems using the HDDS technology. The Master Control Module includes six zones that can be used independently or can be linked to work together allowing the system designer the flexibility to set up any system with the desired configuration. - Page 5 Rear Panel The rear panel includes two RJ45 connectors one for input and one for output. Connect the input to the output connector on a HDDS Master Control Module. A Cat5 cable is used to connect the output connector to another SM652 or to connect to any other ISP Technologies HDDS powered speaker.
- Page 6 SPEAKER POWER: The HDDS system distributes low voltage Alternating Current over the Cat5 cable plus high level balanced audio and is capable of greater than 48 watts continuous output power per SM652 speaker. Each of the Master Control Modules three outputs A, B and C are capable of delivering up to 7 amps of output current.
- Page 8 HDDS SM652 SPECIFICATIONS POWER CONSUMPTION: 400 mA typical 1.8 amps Maximum OUTPUT POWER : 48 Watts RMS Maximum AUDIO INPUT: Balanced 50k input impedance COVERAGE: 90 Vertical x 90 Horizontal 55Hz – 19Khz FREQUENCY RESPONSE: WEIGHT: 8LBS SPEAKERS: 6-1/2 Polypropylene woofer 1 inch Dome Mylar Neodymium Tweeter Includes “U”...
-
Page 9: Warranty And Service
In the event that the unit needs to be repaired, please return the unit to ISP Technologies directly. Simply repack the unit, send a copy of the original receipt, a note stating the problem, and send it to: ISP Technologies, LLC 5479 Perry Drive Unit B Waterford, MI 48329 Attn: Repair Dept.
