Summary of Contents for iSP Technologies VT110
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read the following very carefully before operating this unit Read ALL instructions carefully before using this unit. Keep these instructions for future reference. Heed all warnings and follow all instructions. Do not use this unit near water, in the rain, or where there is moisture. If this warning is ignored a serious electrical shock or death may occur. - Page 3 Caution: Exposure to extremely high noise levels can cause permanent hearing loss. The VT110 speaker system is capable of producing in excess of 127db SPL at 1 meter. Continued exposure to noise levels in excess of 90db may cause permanent hearing loss.
-
Page 4: Thermal Considerations

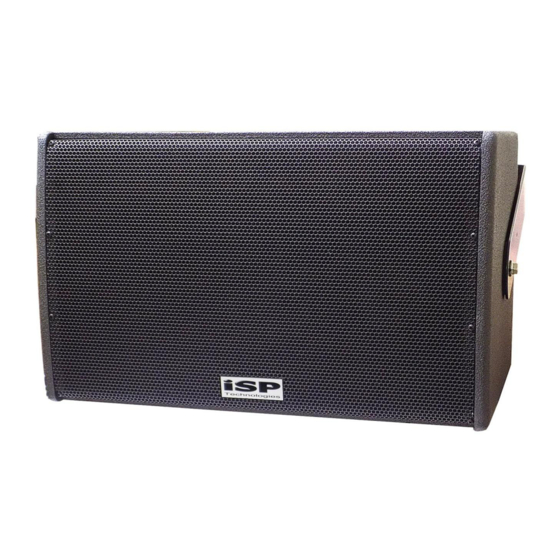

Thank you for your purchase of the VT110 2-way active speaker system. The VT110 2-way design vastly reduces the problems inherent in typical 2-way designs, which cause transient smearing and a lack of clarity. The VT110 is designed with extremely flat response using high quality drivers delivering excellent performance in the critical mid- range. -
Page 5: Attachment To Structures
ISP Technologies is not responsible for the application of its products for any purpose or the misuse of this information for any purpose. ISP is also not responsible for the abuse of its products caused by avoiding compliance with inspection and maintenance procedures. -
Page 6: Rear Panel Description
REAR PANEL DESCRIPTION 1. VOLUME LEVEL Select the level of volume output by starting with the knob turned all the way counter-clockwise and turning it clockwise until desired volume is met. 2. XLR INPUT JACK This female connector provides an input for balanced line level signal source 3. -
Page 7: Specifications
SPECIFICATIONS Configuration: 2-way system LF Driver: 10 inch, neodymium, 600 W rms, vented HF Driver: 1.75 inch v.c. compression, 60 W rms, Polyester diaphragm, on CD horn Coverage: 90 degree horizontal x 80 degree vertical Construction: Baltic Birch Plywood. Powder coated steel grille Finish: Black rubberized polyurethane, custom paint available... -
Page 8: Warranty And Service
Any damage resulting from the misuse or the failure to follow the precautions and instructions will void the warranty. In the event that the unit needs to be repaired. Please return the unit to ISP Technologies directly. Simply repack the unit, send a copy of the original receipt, a note stating the...
