Summary of Contents for iSP Technologies HDDS CS651

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS! Please read this very carefully before operating this unit  Read ALL instructions carefully before using this unit.  Do not operate this unit near water, in the rain, or where there is moisture. If this warning is ignored a serious electrical shock or death may occur.

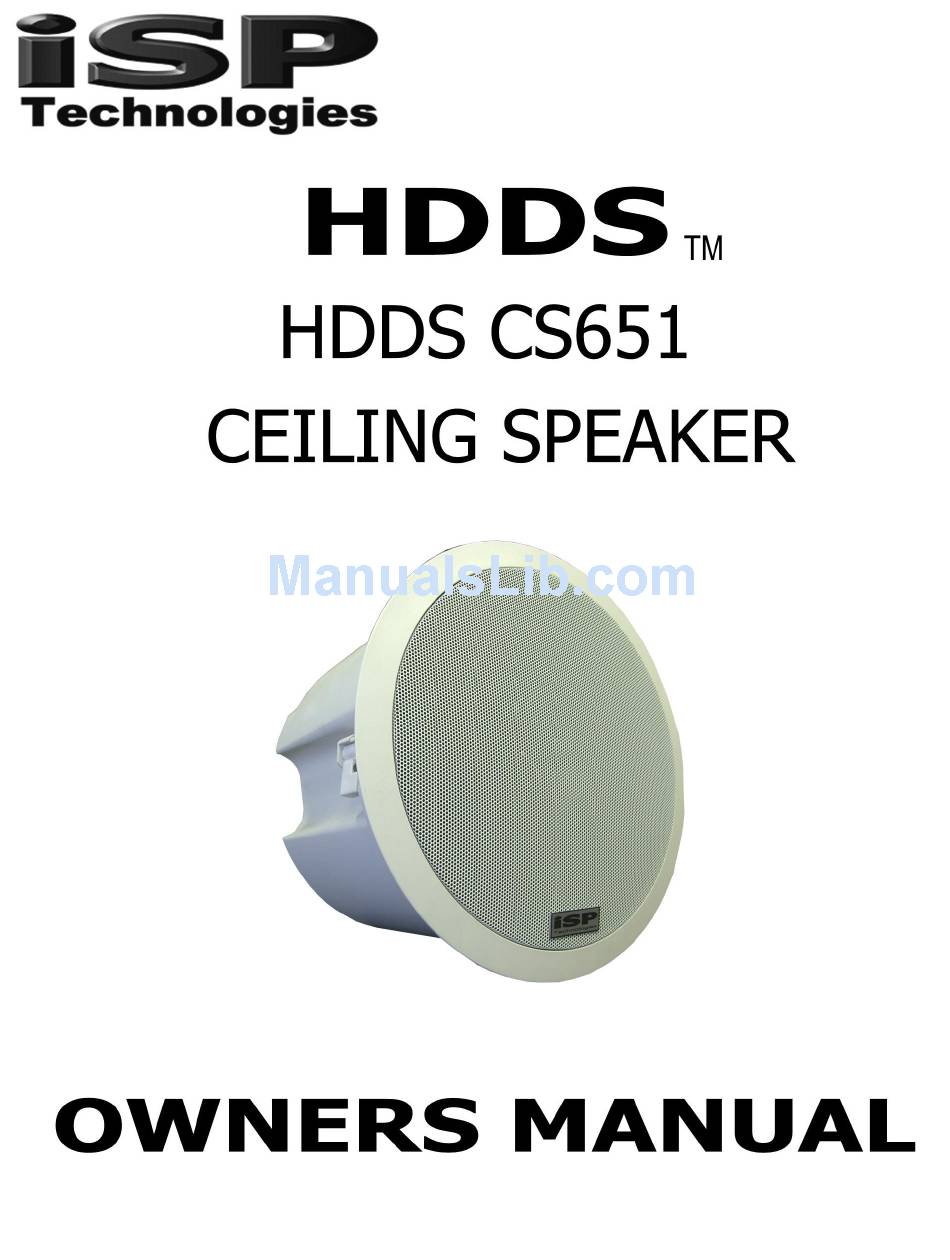

  • Page 3 INTRODUCTION Thank you for your purchase of the ISP Technologies High Definition Distributed System CS651 Ceiling Speaker. This product provides a new level of performance in distributed audio systems allowing greater system flexibility and easy installation of distributed sound. All connections are made via Cat5 RJ45 connections making installation of systems faster and easier using the CS651.
  • Page 4: Operation

    OPERATION The HDDS Master Control Module is the Master control center for distributed sound systems using the HDDS technology. The Master Control Module includes six zones that can be used independently or can be linked to work together allowing the system designer the flexibility to set up any system with the desired configuration.
  • Page 5 A Cat5 cable is used to connect the output connector to another CS651 or to connect to any other ISP Technologies HDDS powered speaker. Note: The CS651 ships with an RJ45 Jumper plug inserted in the Remote Level Port, This jumper is required for audio to pass if no remote level control is used.
  • Page 6 The power connection on the back of the CS651 can be used to power the speaker as a stand-alone speaker or can also be used to add additional power if a long run of Cat5 cable is used. When powered a Blue LED will illuminate behind the front grill of the CS651 indicating the unit is active.
  • Page 7 Cat5 Connections The figure below shows the connections for each output A, B and C of each zone output on the Master Control Module and also connections between each CS651 speaker. Connections are done via standard Cat5 cables where pins 1 through 8 are connected common to the same pins 1 through 8 at each end.
  • Page 8 The CS651 allows the use of 3 options for remote level control. If a single CS651 speaker is to be controlled use ISP Technologies RM10 remote level control. The RM10 is designed to control a single Ceiling speaker and requires one Cat5 cable connection between the CS651 and the RM10.
  • Page 10: Cutout Size

    HDDS CS651 SPECIFICATIONS POWER CONSUMPTION: 400 mA typical 1.8 amps Max POWER WATTS: 30 Watts Maximum AUDIO INPUT: Balanced 50k input impedance LEVEL CONTROL PORT: Cat5 RJ45 Connection / Unbalanced WOOFER: 6.5 inch paper cone TWEETER: 1 inch Mylar COVERAGE: 90 Vertical x 90 Horizontal 60Hz –...
  • Page 11: Warranty And Service

    In the event that the unit needs to be repaired, please return the unit to ISP Technologies directly. Simply repack the unit, send a copy of the original receipt, a note stating the problem, and send it to: ISP Technologies, LLC 5479 Perry Drive Unit B Waterford, MI 48329 Attn: Repair Dept.
