Specifications (Cont.)
Operating temperature
Operating humidity
Enclosure
Accessories:
VPA-BP
Power supply
Optional Accessories:
VPA-BP
AXR-RF
AXR-NWS

Recharging the Battery

The battery (VPA-BP) can be recharged by connecting the 13.5 VDC power supply to the power
jack on the side of the ViewPoint (FIG. 1). The battery can also be charged on the ViewPort
docking station. The docking station is a more effective method of charging the batteries. Refer to
the VPA-DS ViewPort Docking Station section on page 49 for more information about charging
batteries on the ViewPort docking station.

Using Connector Ports

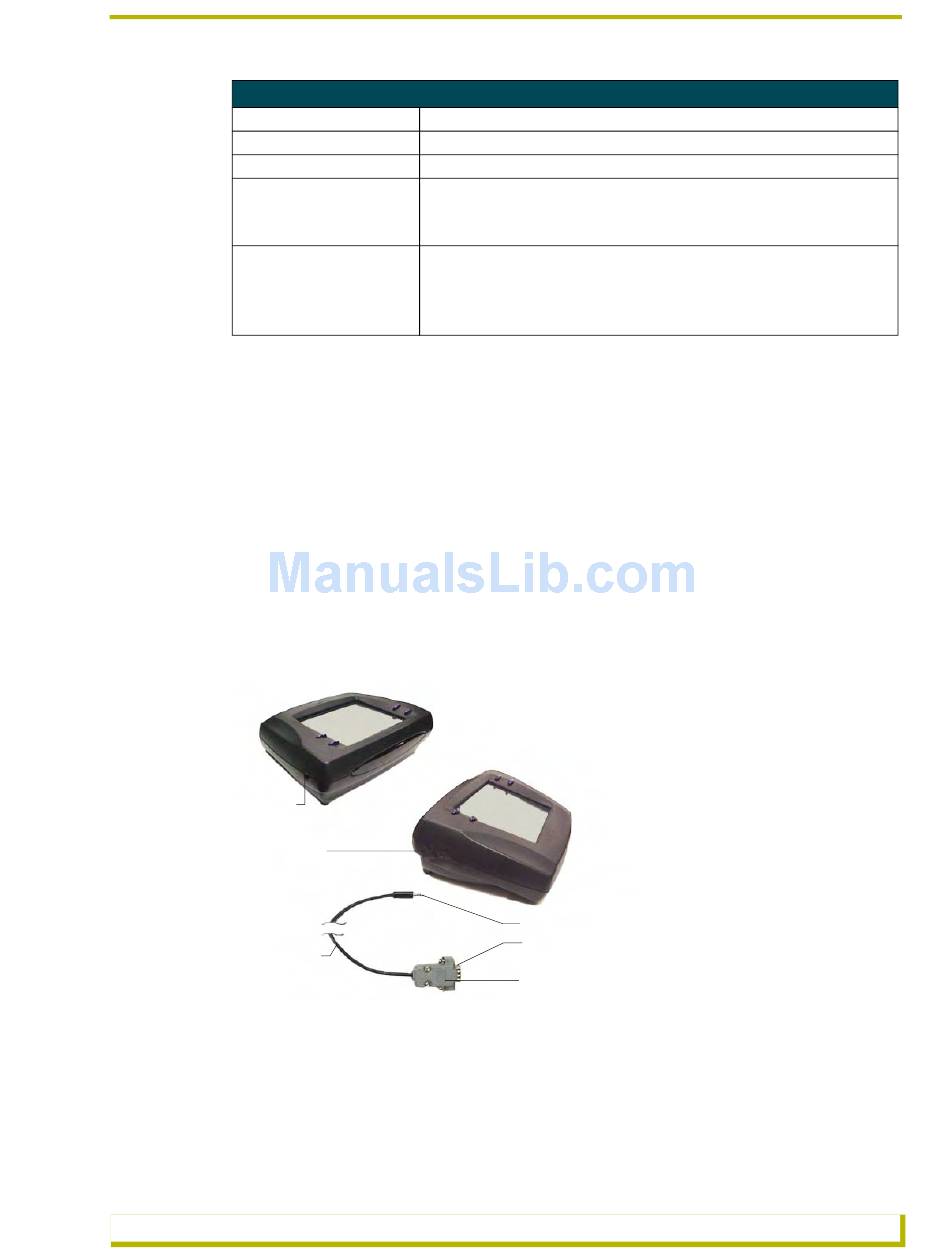

All ViewPoints have two connectors (FIG. 2). The power jack is for connecting an external 13.5
VDC power supply for ViewPoint operation and charging. The programming jack is used for
communication between the ViewPoint touch panel and TPDesign3. The programming jack uses a
three-wire, 2.5 mm stereo jack. The required cable and power supply comes furnished with the
ViewPoint.
Power
jack
Programming
ViewPoint
to PC
programming
cable
FIG. 2 ViewPoint connectors
To download and upload TPDesign3 touch panel pages:
1. Connect the stereo plug (male) end of the programming cable into the programming jack on
the side of the ViewPoint.
2. Connect the male DB-9 end of the cable into the DB-9 port on the back of your computer.
3. Configure the communication parameters in TPDesign3.
ViewPoint Wireless Touch Panels
+50°F to +95°F (+10.0°C to +35.0°C)
5% to 95% non-condensing
High impact molded plastic, matte black finish
ViewPoint Rechargeable Battery
13.5 VDC, PS 2.8 A power supply
Additional ViewPoint Rechargeable Battery
RF Receiver (VPT-CP only)
NetWave Server (VPN-CP only)
jack
Stereo plug male
Male DB-9
Cable FG10-817 to cable FG10-727
goes to your PC's RS-232 port
Product Information
3
