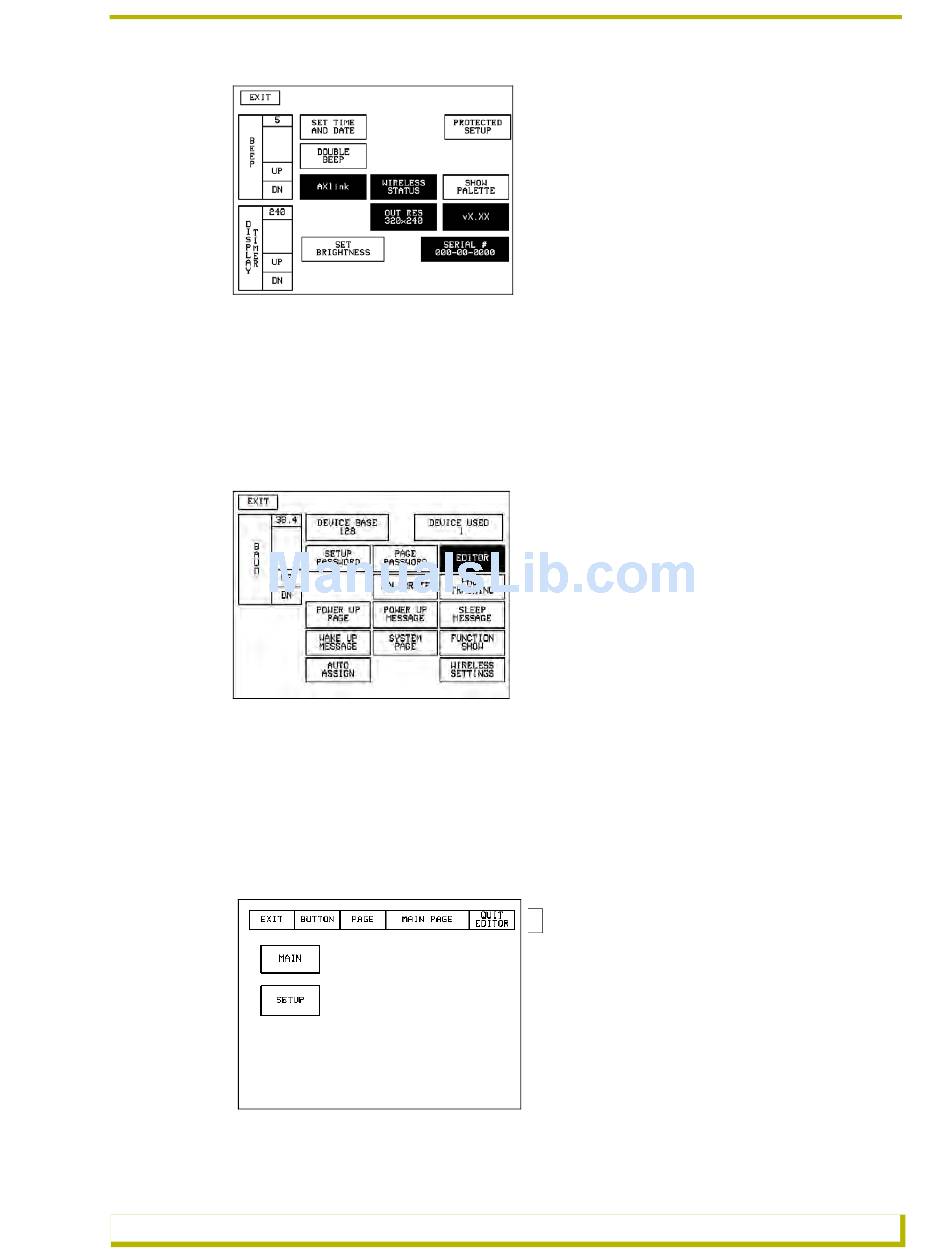

FIG. 4 Setup page
2. Press PROTECTED SETUP to open the keypad.
3. Enter 1988 in the keypad and press ENTER to open the Protected Setup page (1988 is the
default password).
4. Press EDITOR to enable Edit mode. The EDITOR button is highlighted in the Protected Setup
page when enabled, as shown in FIG. 5.
FIG. 5 Protected Setup page with the active EDITOR button
5. Press EXIT to close the Protected Setup page and return to the Setup page (now in Edit mode).
6. Press EXIT again to return to the Main page. The EDIT button appears at the top of the page
indicating that Edit mode is active.
7. Press EDIT to open the Edit bar. The BUTTON and PAGE options, in the Edit bar, (FIG. 6) are
used to design and modify button and page settings.
FIG. 6 Main page with Edit bar
ViewPoint Wireless Touch Panels
Designing Touch Panel Pages
Edit bar
7
