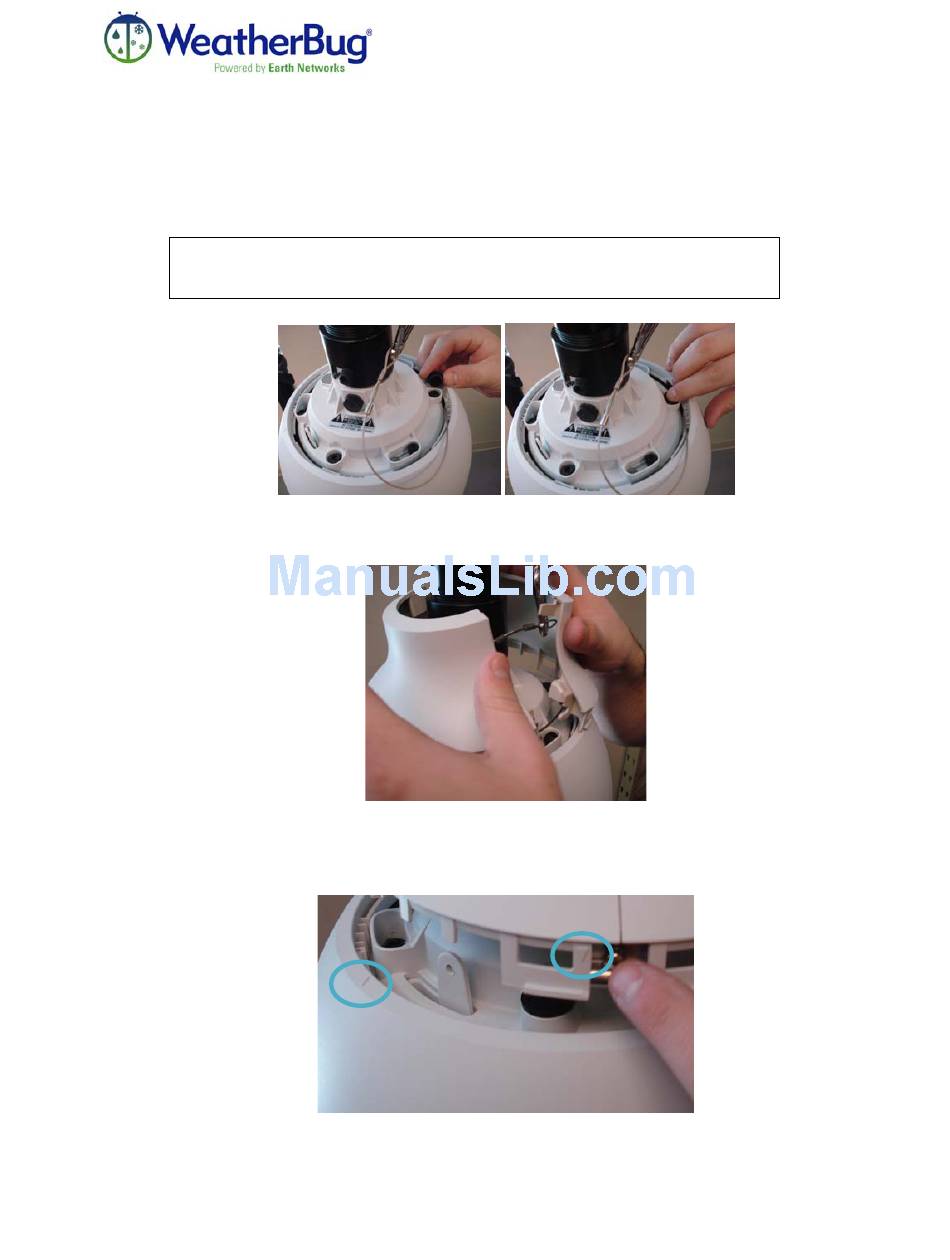

8. Using the 3 rubber plugs, insert one over each of the screws. This step is very
important.
THE RUBBER PLUGS ARE THE ONLY PROTECTION AGAINST
MOISTURE GETTING INTO THE CAMERA BASE.
9. To complete installation, the enclosure for the top of the housing needs to be
attached to the camera base. Open the enclosure and place around the top of the
housing and bottom of the Mounting Arm.
10. Snap the enclosure shut. Line up the arrow on the top of the enclosure with the
arrow on the camera housing bottom. Rotate the enclosure to the right to lock
into place. The arrows are pictured below.
11. Use the supplied cable ties to clean up any loose cables (if applicable). Cut off the
remaining ends of the cable ties.
12. The HD MotionCam needs to be grounded according to local electrical code.
Release 1, Version 1.0
