4.0 USING THE SOUND BOARD

The following sections cover the basics on how to access and adjust common settings on the sound board.

4.1 CONFIGURING CHANNELS (GAIN/EQ)

Now that the board is set up and configured, you can adjust parameters for each channel as you
would for any other sound board – this includes Gain and EQ – which are the two primary items you
may want to work on.
In order to adjust the parameters on a channel, you need to press the SELECT button on the
appropriate channel and then the controls on the upper left corner of the board become active and
will affect the selected channel. We are primarily worried about Gain and EQ.
If you wish to see the parameters on the LCD screen, you can simply select the VIEW button located
on the lower right in each section on the board, and this will immediately switch the display to view
the relevant parameters. For example, to view the CONFIG/PREAMP settings on the LCD you will
push the VIEW button located in the bottom right of the CONFIG/PREAMP section and now you can
see the settings on the LCD.
Setting gain is done just as you would a conventional sound board.
EQ can be configured by using the knobs in the EQUALIZER section, specifics around setting and using
EQ will not be covered in this manual. If you wish to see the EQ settings on the LCD screen, press the
VIEW button.

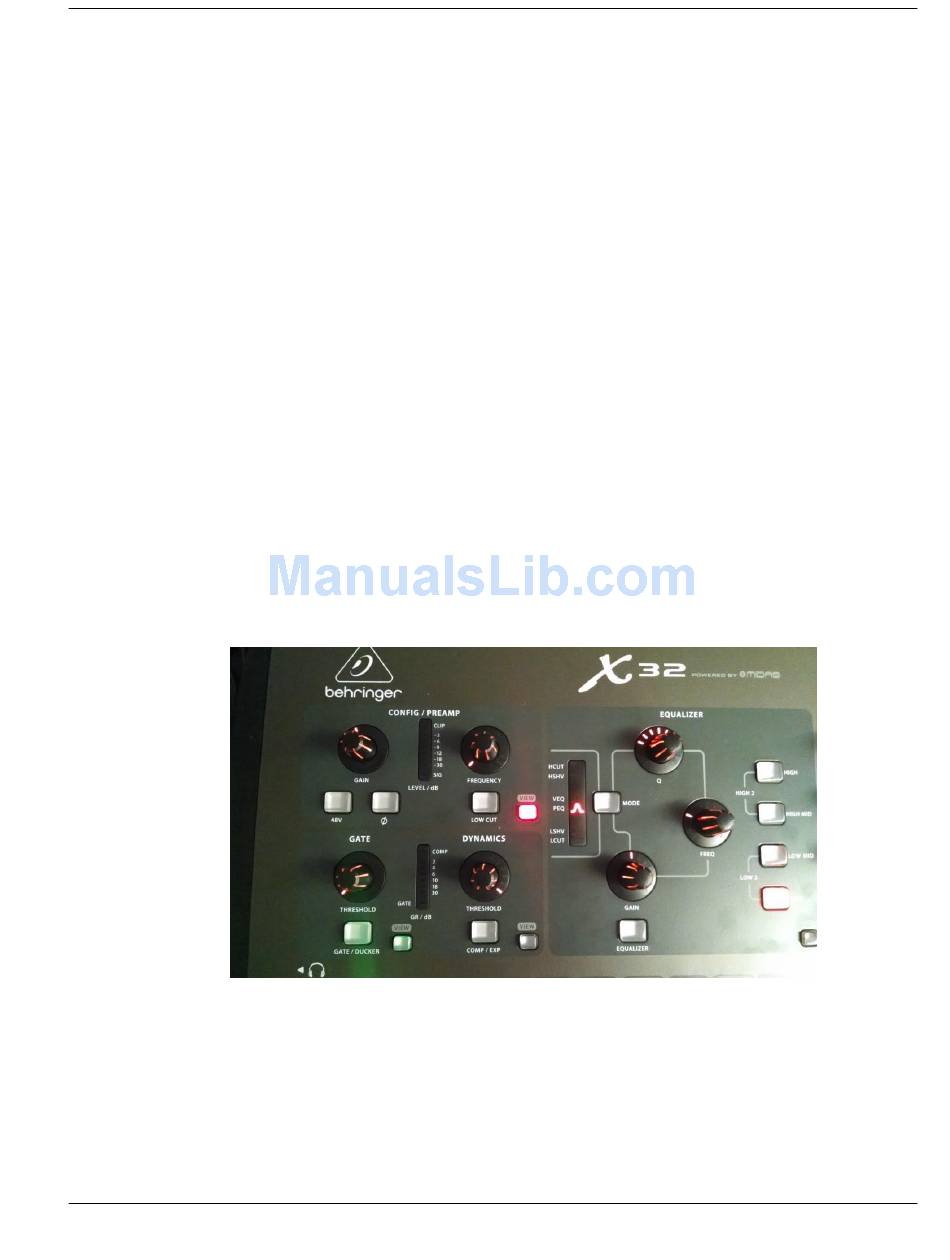

Figure 25 - Selecting the VIEW button for Config/Preamp
