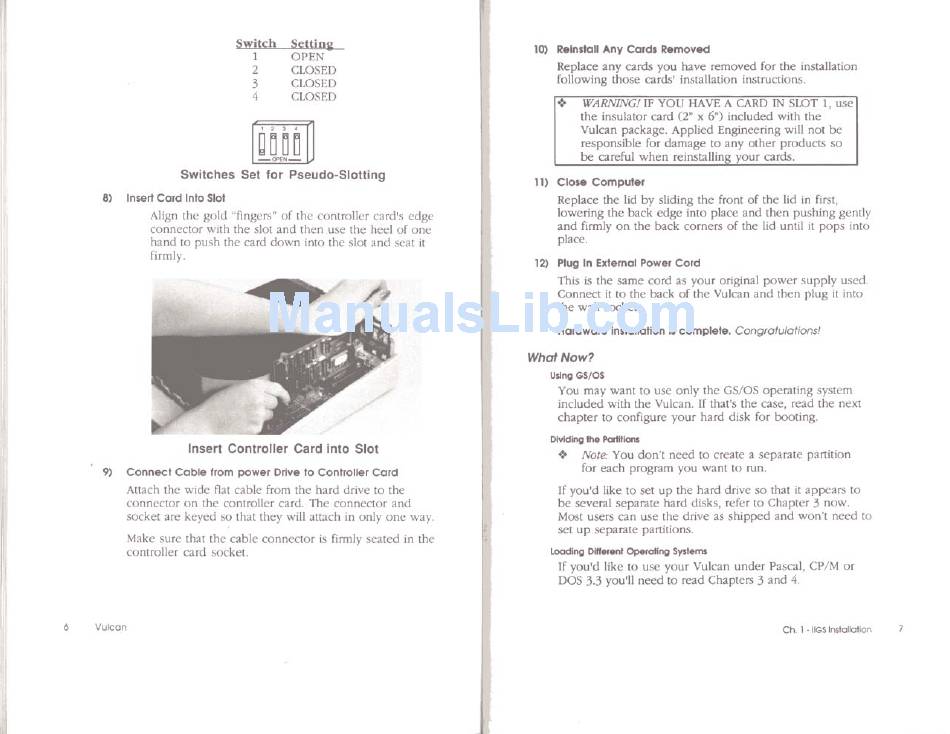

Applied Engineering Vulcan IIGS User Manual page 10

,
Switch
1
2
3
4
SctUPS
OPEN
CLOSED
CLOSED
CLOSED
Switches Set for Pseudo-Slonlng
8) Insert Card Inla Sial
Align the gold -fingers' of the controller end's L-dgC
connector with the slot and then use the heel of
on~·
hand to push the card down into the slOi and scat it
firm I)'.
Insert Controller Card into Slot
9) COl'Inecl Coble Irom power Orlve 10 Conlroller Cord
VulCan
Attach the wide flat cable from the hard drive to the
conneclOr on the controller card. The connector and
socket are keyed so that they will anKh in only one way.
Make sure that the cable connector is finnly seated in the
controller card socket.
10) hlrlltal Any Cards hmoved
Replace any cards you have removed for the installation
following
th~
cards' installation instructions.
+
WARNINGllF YOU
HAVE
A
CARD
IN SWT I,
usc
the insulator card (Z" x 6") included with the
Vulcan package. Applied Engineering will not be
responsible for damage to any other products
so
be careful when reinstalling your cards.
11) ClaM Compute'
Replace
the lid by sliding the front of the lid in first,
lowering the back edge into place and then pushing gently
and firmly on the back comers of the lid until
II POp5
into
place.
12) Plug In E.lemol Powel COld
This is the same cord as your original power supply used.
Connect It to the back of the Vulcan and then plug it into
the wall socket.
WhotNow1
Ustng
GSICS
You may want to usc only the GS/OS oper:ning system
included with the vulcan. If that'S the case, read the next
chapter to configure your hard disk for booting.
_h . . . . . . .
+
Note: You don 't nL"ed to create a separate panition
for each program you want to run.
If you'd like \0 set up the hard drive so that it appears to
be several separate hard disks, refer to
Chapter 3 now.
Most users can usc Ihe drive as shipped and won't
n~'t.--d
10
sct up separate panitions.
LoodIng DIll .. ..,. Operollng Sysl .....
If you'd like to usc your Vulcan under Pascal, CP/ M or
OOS 3.3 you'll need to read Chapters 3 and 4.
