- Page 1 COOKTOP PARTS 30" ELECTRIC For Models: KECD806RBL03, KECD806RWW03, KECD806RSS03 BUILT−IN DOWNDRDAFT COOKTOP (Black) (White on White) (Stainless) Part No. W10163509 Rev. A 9−07 Litho in U.S.A. (amd)

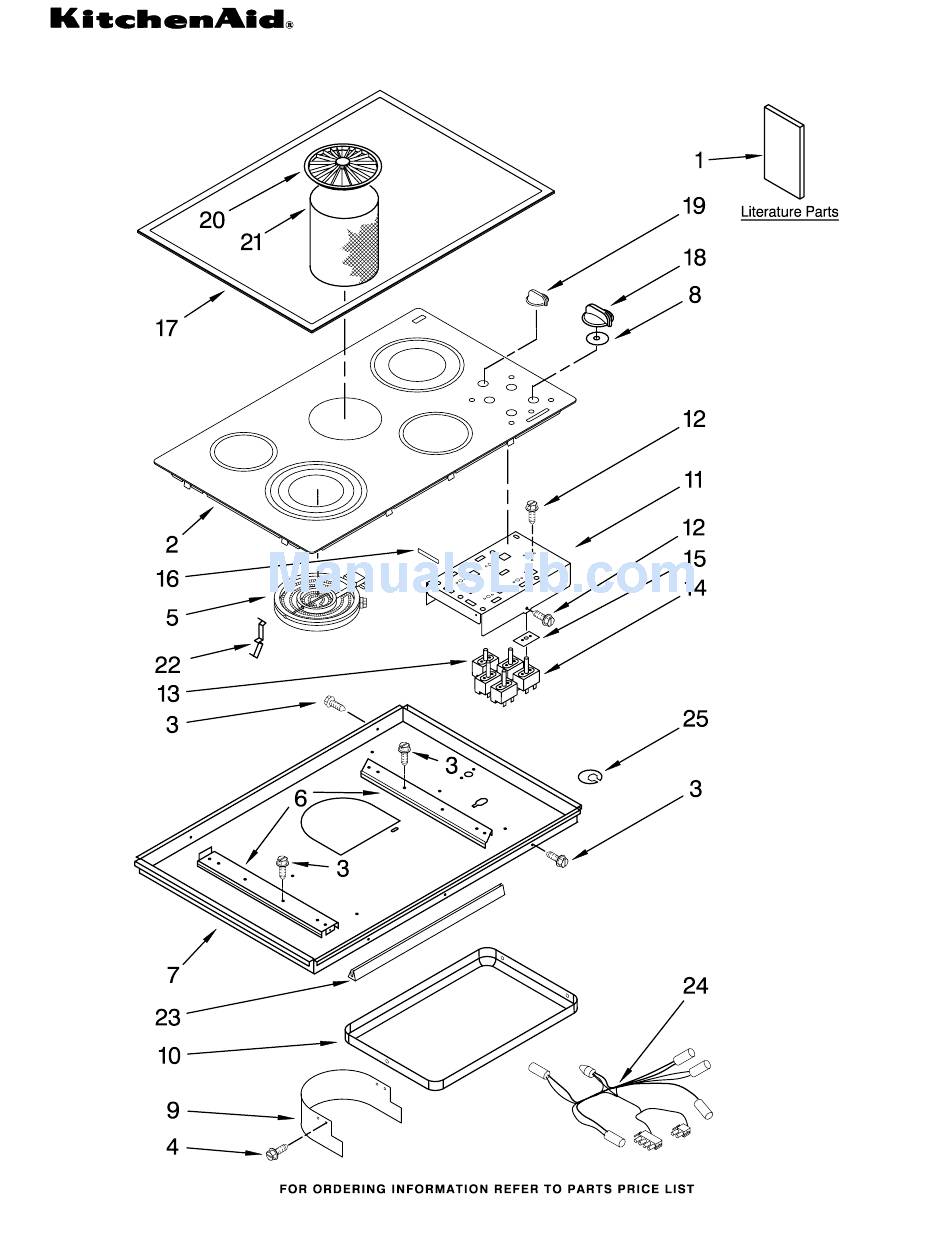

- Page 2 For Models: KECD806RBL03, KECD806RWW03, KECD806RSS03 Illus. Part DESCRIPTION Literature Parts 8286240 Installation Instructions 8286427 Wiring Diagram 8286609 Use & Care Guide Safe Cooking Tips 3191638 English 9759133 French Cooktop, Glass 8286948 Black 8286985 White 3196537 Screw 3177991 Screw Element, Surface...
- Page 3 For Models: KECD806RBL03, KECD806RWW03, KECD806RSS03 Illus. Part DESCRIPTION 1 W10140530 Bracket, Vent Shield 3196537 Screw 3192403 Bracket, Blower 3367670 Screw (4) 488130 Nut (4) 9760484 Ring, Inlet 9760485 Screen, Inlet 9760483 Adapter, Vent 9 W10109930 Blower Motor Assembly (Includes Fan...
- Page 4 OPTIONAL PARTS For Models: KECD806RBL03, KECD806RWW03, KECD806RSS03 (Black) (White on White) Illus. Part DESCRIPTION FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES−−25FT. LENGTH 242828 Wire, Black 12 Ga. 150 C 242820 Wire, Black 14 Ga. 150 C 242822 Wire, Blue 14 Ga. 150 C 242830 Wire, Brown 14 Ga.
