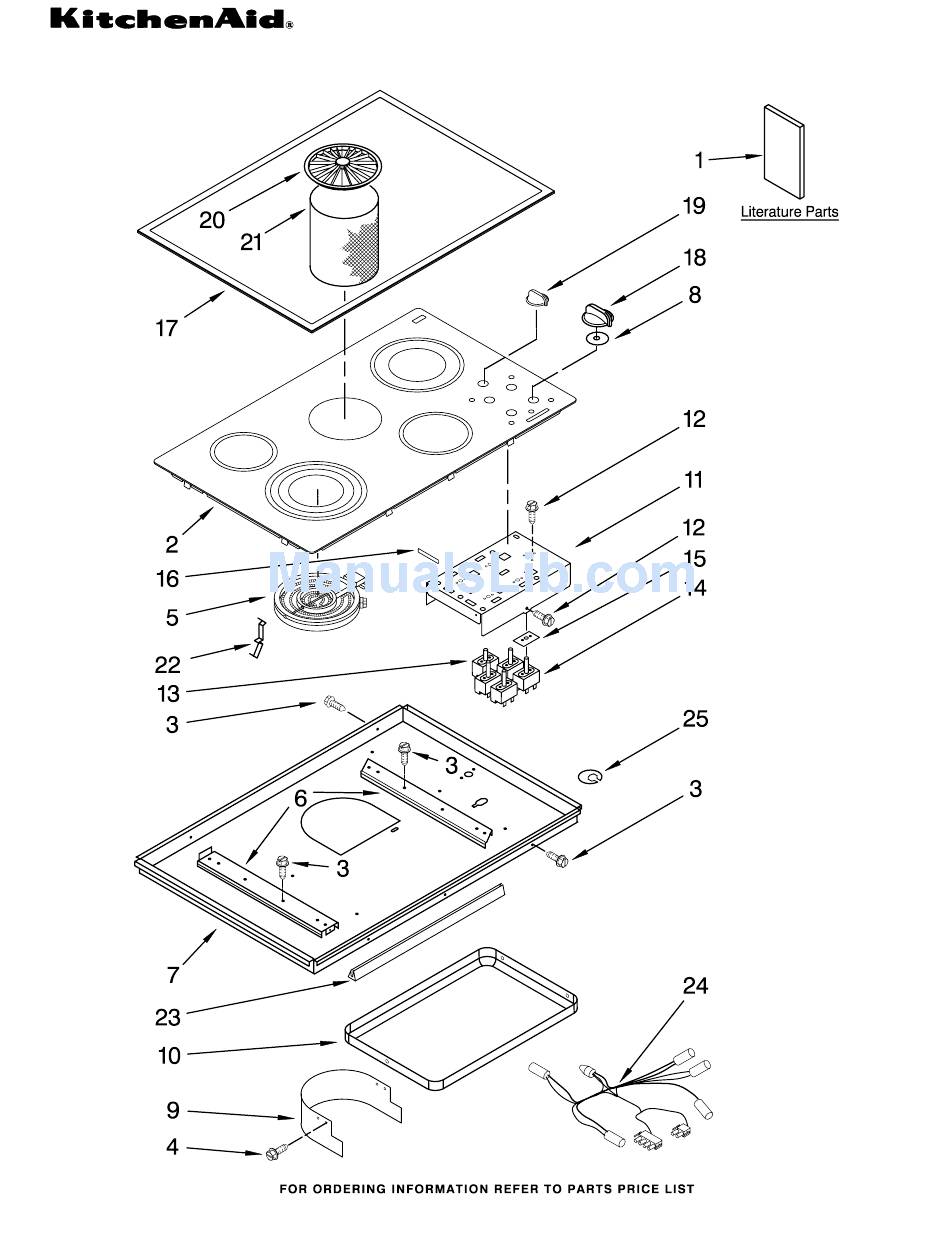

- Page 1 COOKTOP PARTS 30" ELECTRIC BUILT−IN For Models: KECD806RSS05 DOWNDRAFT COOKTOP (Stainless) 11−08 Litho in U.S.A. (amd)(bay) Part No. W10240581 Rev. A...
- Page 2 COOKTOP PARTS For Models: KECD806RSS05 (Stainless) Illus. Part DESCRIPTION Literature Parts 8286240 Installation Instructions 8286427 Wiring Diagram W10162163 Use & Care Guide Safe Cooking Tips 9762761 English W10065852 French 8286948 Cooktop, Glass 3196537 Screw 3177991 Screw Element, Surface 8523698 LR 1200W...
- Page 3 488130 Nut (4) 9760484 Ring, Inlet 9760485 Screen, Inlet 9760483 Adapter, Vent 9 W10109930 Blower Motor Assembly (Includes Fan Assembly) FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous 4455917 Bracket, Mounting 8286642 Tape, Foam 3400093 Screw W10240581 BLOWER UNIT PARTS For Models: KECD806RSS05 (Stainless)
- Page 4 OPTIONAL PARTS For Models: KECD806RSS05 (Stainless) Illus. Part DESCRIPTION FOLLOWING PARTS NOT ILLUSTRATED WIRING HARNESS PARTS 8286419 Harness, Wire (Ceran Downdraft) 4456859 Harness, Wire (Blower/Switch) 4456028 Harness, Jumper 98997 Clip 9760671 Strain Relief 8286423 Conduit, Downdraft 3400015 Screw W10240581...
