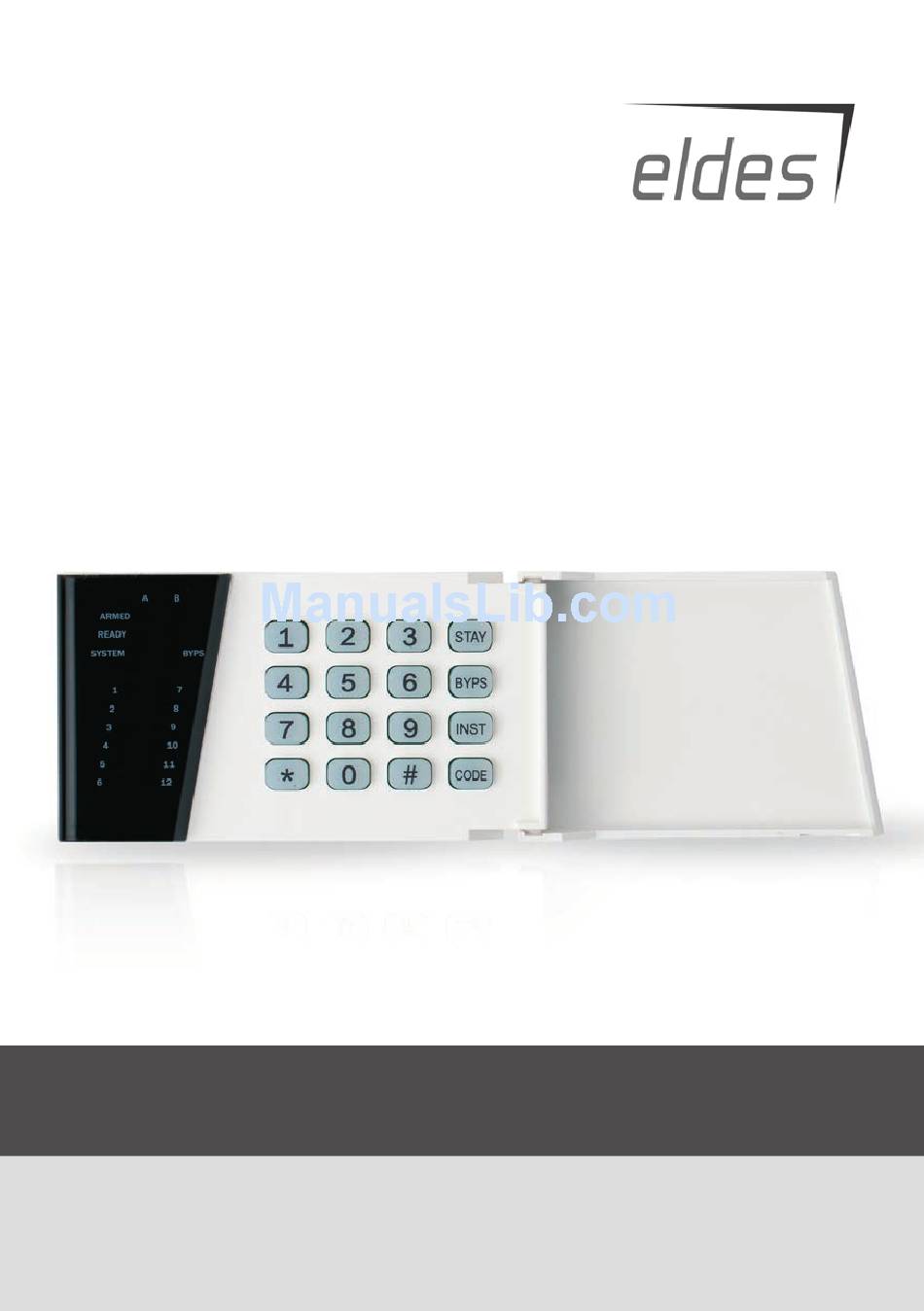

For more details, please refer to ELDES alarm system user & installation manuals. EKB3W is a wireless LED keyboard intended to use with ELDES alarm systems. The system configuration by EKB3W keyboard is per- formed by activating the Configuration Mode and entering the required parameters & values. ELDES alarm systems allow to connect up to 4 EKB3W keyboards.
Security Zone + / - Battery slots 3. Installation 1. Detach keyboard holder from EKB3W front side . Keyboard holder detach points are marked with arrows (see Fig. No. 3). DOWN SIDE BACK SIDE Fig. No. 3 User manUal eKB3W v1.0...
Page 4
5. Bind the device to the alarm system using ELDES Configuration Tool software. Open Wireless Device Management section and enter a 8-digit wireless device ID located on the EKB3W enclosure and press Add button (see Fig. No. 5). The device can also be bind by sending a corresponding command via SMS message.
By tamper button. EKB3W has a built-in tamper button intended for monitoring the enclosure status. Once the enclosure of EKB3W is illegally opened, the tamper button becomes unpressed. This action is followed by alarm which is sent by SMS message and phone call to the user (-s) by default. The SMS message contains the violated tamper number.
“ ELDES UAB” will not take any responsibility regarding personal or property or revenue loss while using the system. “ELDES UAB” liability according to local laws does not exceed value of the purchased system. “ELDES UAB” is not affiliated with any of the Internet providers therefore is not responsible for the quality of Internet service.
Page 7
“ELDES UAB”. “ELSDES UAB” reserves the right to update or modify this document and/or related products without a warning. Hereby, “ELDES UAB” declares that this wireless LED keyboard EKB3W is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at www.eldes.lt...
Išsamiau apie tai skaitykite ELDES apsaugos sistemos vartotojo ir instaliavimo vadovuose. EKB3W yra belaidė LED klaviatūra, skirta naudojimui su ELDES apsaugos sistemomis. Sistemos konfigūravimas ir valdymas EKB3W klaviatūra yra atliekamas aktyvavus konfigūravimo režimą, įvedus reikiamus parametrus ir reikšmes. ELDES apsaugos sistemos pa- laiko iki 4 EKB3W klaviatūrų.
Page 9
Tamperio mygtukas + / - Baterijų lizdai Apsaugos zona 3. Instaliavimas 1. Atskirkite klaviatūros laikiklį nuo priekinės dalies. Klaviatūros laikiklio atskyrimo taškai pažymėti rodyklėmis (3 pav.). APATINĖ DALIS DOWN SIDE BACK SIDE GALINĖ DALIS 3 pav. vARTOTOJO vADOvAS EKB3W v1.0...
Page 10
3. Z1 ir COM kontaktai privalo būti sujungti 5,6kΩ rezistoriumi (žr. 2 pav). Kadangi pagal gamyklinę konfigūraciją, klaviatūros Z1 zona yra išjungta, ji gali būti įjungta SMS žinute, EKB3W klaviatūra ir ELDES Configuration Tool programine įranga. Klaviatūros Z1 zona privalo būti įjungta ir rezistorius prijungtas, net jei yra naudojamas tik tamperio mygtukas.
Page 11
• Sutrikus belaidžiam ryšiui. Sutrikus belaidžiam ryšiui tarp apsaugos sistemos ir EKB3W, sistema šį įvykį traktuoja kaip tam- perio pažeidimą ir, pagal gamyklinę konfigūraciją, siunčia SMS žinutę bei skambina registruotam vartotojui. SMS žinutėje pateikiamas pažeisto tamperio numeris ir žvaigždutės * simbolis, reiškiantis belaidžio ryšio sutrikimą, sukėlusį tamperio pa- žeidimą.
UAB „ELDES" neprisiima jokios atsakomybės už tiesioginę ar netiesioginę žalą ar nuostolius, taip pat negautas pajamas, naudojantis sistema. UAB „ELDES" atsakomybė, kiek tai lei džia galiojantys įstatymai, neviršija produkto įsigijimo kainos. Korinio ryšio paslaugas teikiantys GSM operatoriai nėra susiję su UAB „ELDES"...
Page 13
Draudžiama kopijuoti, kaupti ar perduoti tretiesiems asmenims, šiame dokumente esančią informaciją, ar bet kokią dokumento dalį be išankstinio raštiško UAB „ELDES“ sutikimo. UAB „ELDES“ pasilieka teisę be išankstinio įspėjimo tobulinti ar keisti bet kuriuos dokumente paminėtus gaminius, taip pat patį dokumentą. Šiuo dokumentu UAB „ELDES“ deklaruoja, kad belaidė...
Page 14
Made in Lithuania. Pagaminta Lietuvoje. www.eldes.lt...
