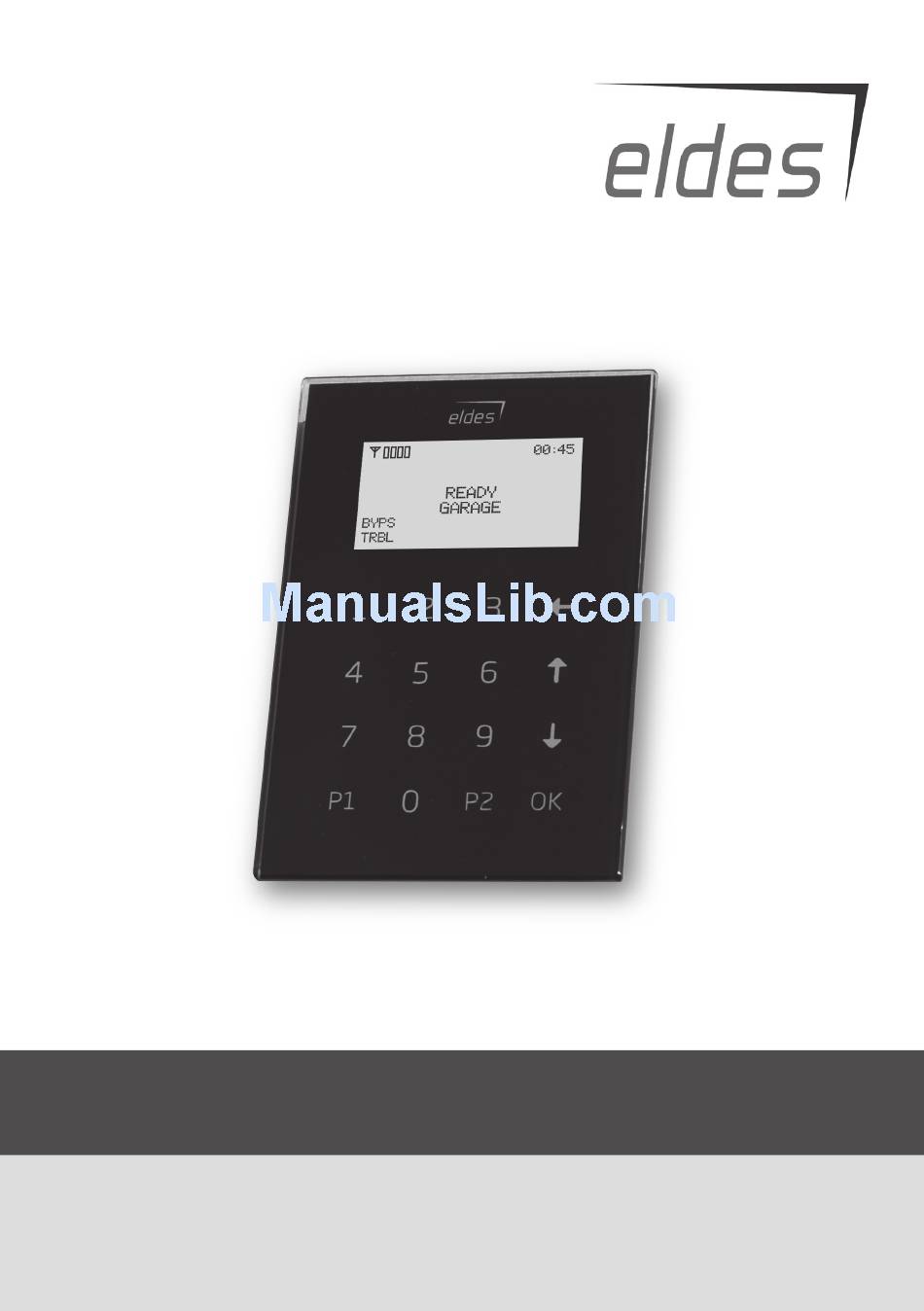

  • Page 1 LCD KEYBOARD LCD KLAVIATŪRA EKB2...
  • Page 2: Package Content

    The keyboard uses two password levels – keyboard password and administrator password. System configuration can be performed by accessing EKB2 menu and entering the required values. ELDES alarm system allows to connect up to 4 EKB2 keyboards. 1. Package Content 1.
  • Page 3 A0 and A1 pins located on the back side of the keyboard are intended to set keyboard address. The keyboard address is set by putting the jumper (-s) on the pins. ELDES alarm system allows to connect up to 4 EKB2 keyboards - each set under different ad- dress.
  • Page 4: Installation

    1. Remove the screw located on the bottom side of the enclosure (see Fig. No. 3). 2. Detach keyboard holder from EKB2 keyboard by gently pulling the holder towards yourself (see Fig. No. 4). 3. Fix the keyboard holder on the wall using the screws. (see Fig. No. 5) 4.
  • Page 5: Additional Information

    Copyright © “ELDES UAB”, 2011. All rights reserved It is not allowed to copy and distribute information in this document or pass to a third party without advanced written authorization by “ELDES UAB”. “ELSDES UAB” reserves the right to update or modify this document and/or related products without a warning. Hereby, “ELDES UAB” declares that this EKB3 keyboard is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
  • Page 6: Pakuotės Sudėtis

    EKB2 – tai klaviatūra su LCD (skystųjų kristalų) ekranu, skirta naudoti kartu su ELDES GSM apsaugos ir valdymo sistema. Šios klaviatūros pagrindinės funkcijos: • apsaugos įjungimas ir išjungimas • STAY režimo įjungimas ir išjungimas • sistemos parametrų konfigūravimas • informacijos atvaizdavimas LCD ekrane •...
  • Page 7 A0 ir A1 kontaktai, esantys klaviatūros nugarinėje pusėje, skirti nustatyti klaviatūros adresą. Klaviatūros adresas nustatomas ant kontaktų uždedant trumpiklį (-ius). Prie vienos ELDES apsaugos sistemos galima prijungti iki keturių EKB2 klaviatūrų, sukonfi- gūruotų skirtingais adresais. Galimos trumpiklių kombinacijos, skirtingo adreso nustatymui, pateiktos lentelėje.
  • Page 8 8. Įsukite varžtą į klaviatūros korpuso apatinę dalį. (žr. Pav. Nr. 3) 9. Įjunkite ELDES apsaugos sistemos maitinimą. Pav. Nr. 4 10. EKB2 klaviatūra paruošta darbui. PASTABA: EKB2 gali būti jungiama tik prie ELDES suderintų apsau- gos sistemų. Pav. Nr. 5 ELDES apsaugos...
  • Page 9: Papildoma Informacija

    • Sistema nėra atspari drėgmei, cheminei aplinkai, bei mechaniniams poveikiams. • Neremontuokite sistemos patys. Klaviatūra EKB2 yra ribotos prieigos zonos įrenginys. Sistemą montuoti ir remontuoti gali tik asmuo turintis žinių apie ben- druosius saugos reikalavimus ir pakankamą tam darbui kvalifikaciją...
  • Page 10 Made in Lithuania. Pagaminta Lietuvoje. www.eldes.lt...
