Installation Requirements; Tools And Parts; Location Requirements - KitchenAid Cooktop Installation Instructions Manual

30" (76.2 cm) and 36" (91.4 cm) classic commercial-style dual fuel convection range with steam-assist
Hide thumbs

Advertisement

Tools and Parts

Gather the required tools and parts before starting installation.
Read and follow the safety instructions provided with any tools
listed here.
Tools needed
Tape measure
Flat-blade screwdriver
Phillips screwdriver
Level
Hand or electric drill
Channel lock pliers
Pipe wrench
Parts needed
A UL listed or CSA approved conduit connector
UL listed wire nuts
Parts supplied
Check that all parts are included.

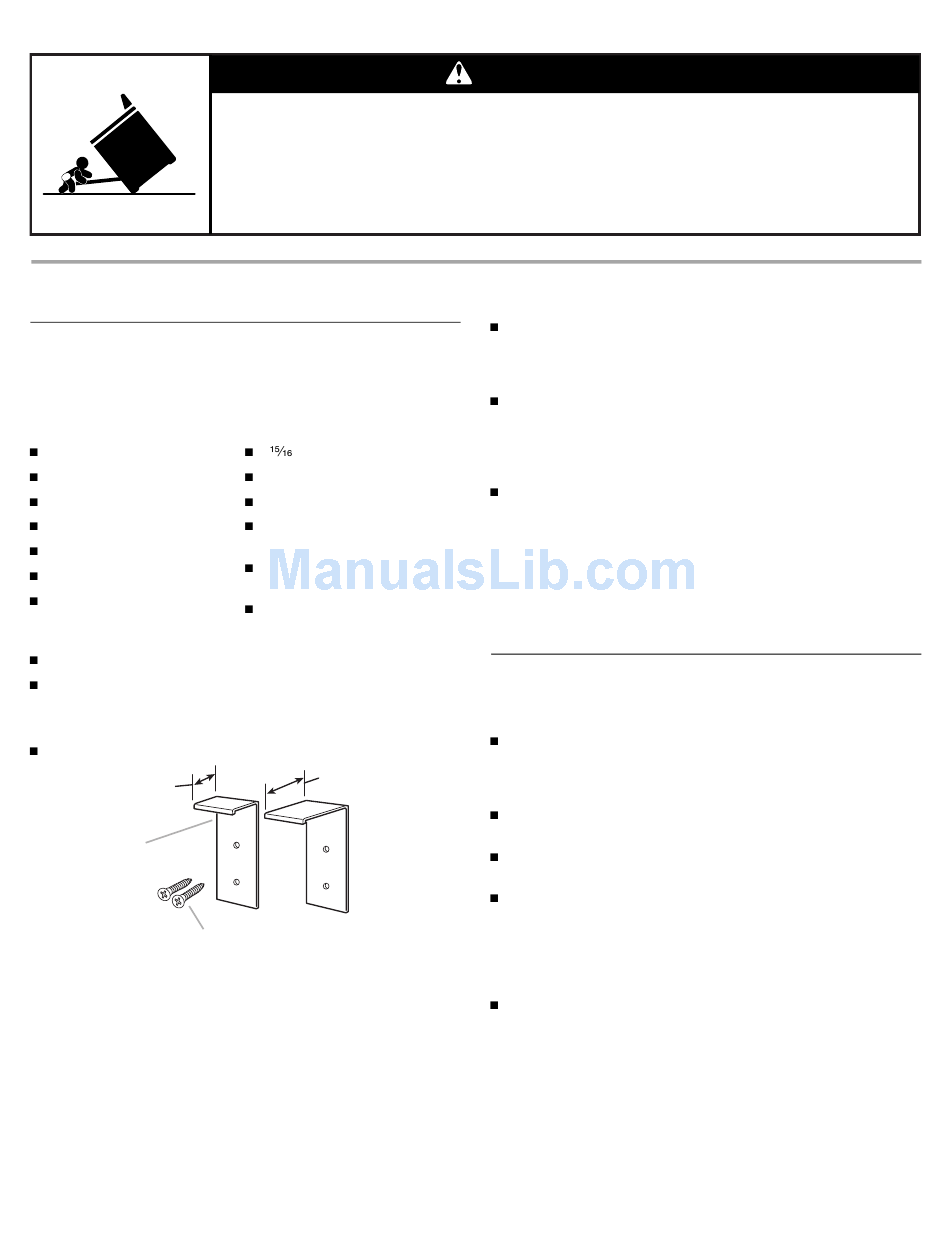

Anti-tip bracket kit
1"
(2.5 cm)
A
B
A. Anti-tip bracket
B. #10 x 2" Phillips head screws (2)
NOTE: Brackets must be securely attached to wall stud.
Thickness of finished wall may require longer screws to anchor
bracket to wall. Longer screws are available from your local
hardware store. See "Install Anti-Tip Bracket" section.
4
A child or adult can tip the range and be killed.
Connect anti-tip bracket to wall behind range.
Reconnect the anti-tip bracket, if the range is moved.
Failure to follow these instructions can result in death or serious burns to children and adults.

INSTALLATION REQUIREMENTS

" combination wrench
Marker or pencil
Masking tape
Pipe-joint compound
resistant to LP gas
Noncorrosive leak-detection
solution
Stud finder
1¾"
(4.4 cm)
WARNING
Tip Over Hazard
Backguard and attachment screws (7).
NOTE: The backguard included with the range is required if
installed with less than 1" (2.5 cm) clearance from a
combustible rear wall.
Island trim and attachment screws (3).
NOTE: The island trim included with the range may be used if
installed with 1" (2.5 cm) clearance from a combustible rear
wall or with 0" (0 cm) clearance from a noncombustible rear
wall.
LP conversion kit.
NOTE: The cooktop is manufactured for use with Natural gas.
To convert to LP gas, see the gas conversion instructions
provided in the literature package.
Check local codes and consult gas supplier. Check existing gas
supply and electrical supply. See "Electrical Requirements" and
"Gas Supply Requirements" sections.
All electrical connections should be made by a licensed, qualified
electrical installer.

Location Requirements

IMPORTANT: Observe all governing codes and ordinances. Do
not obstruct flow of combustion and ventilation air.
It is the installer's responsibility to comply with installation
clearances specified on the model/serial rating plate. The
model/serial rating plate is located on the vertical surface
below the control panel on the right.
It is recommended that a 600 CFM range hood be installed
above the range.
Recessed installations must provide complete enclosure of
the sides and rear of the range.
To eliminate the risk of burns or fire by reaching over heated
surface units, cabinet storage space located above the
surface units should be avoided. If cabinet storage is to be
provided, the risk can be reduced by installing a range hood
that projects horizontally a minimum of 5" (12.7 cm) beyond
the bottom of the cabinets.
All openings in the wall or floor where range is to be installed
must be sealed.
