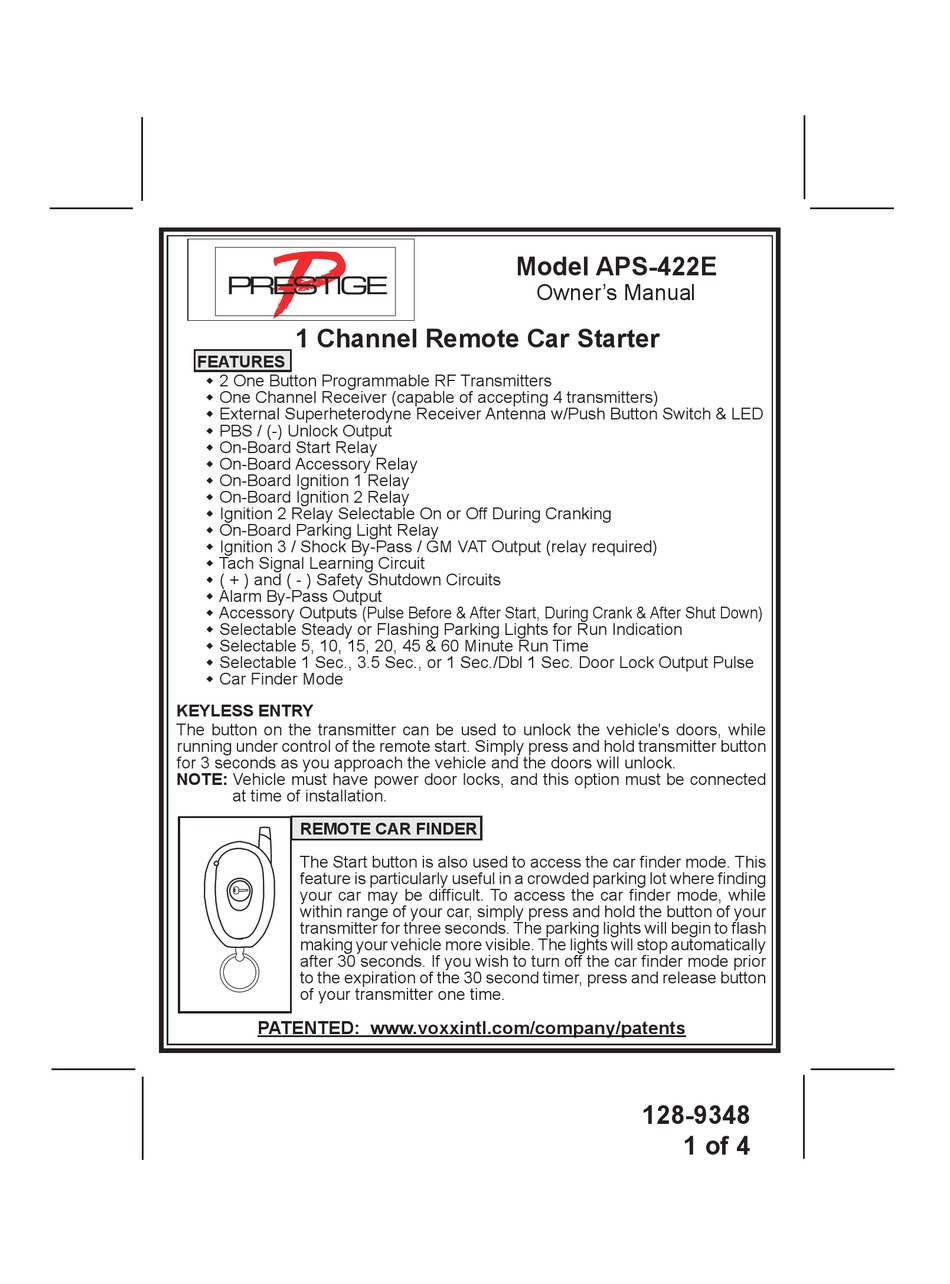

Prestige APS-422E Owner's Manual

1 Channel Remote Car Starter

FEATURES

 2 One Button Programmable RF Transmitters
 One Channel Receiver (capable of accepting 4 transmitters)
 External Superheterodyne Receiver Antenna w/Push Button Switch & LED
 PBS / (-) Unlock Output
 On-Board Start Relay
 On-Board Accessory Relay
 On-Board Ignition 1 Relay
 On-Board Ignition 2 Relay
 Ignition 2 Relay Selectable On or Off During Cranking
 On-Board Parking Light Relay
 Ignition 3 / Shock By-Pass / GM VAT Output (relay required)
 Tach Signal Learning Circuit
 ( + ) and ( - ) Safety Shutdown Circuits
 Alarm By-Pass Output
 Accessory Outputs (Pulse Before & After Start, During Crank & After Shut Down)
 Selectable Steady or Flashing Parking Lights for Run Indication
 Selectable 5, 10, 15, 20, 45 & 60 Minute Run Time
 Selectable 1 Sec., 3.5 Sec., or 1 Sec./Dbl 1 Sec. Door Lock Output Pulse
 Car Finder Mode

KEYLESS ENTRY

The button on the transmitter can be used to unlock the vehicle's doors, while
running under control of the remote start. Simply press and hold transmitter button
for 3 seconds as you approach the vehicle and the doors will unlock.
NOTE: Vehicle must have power door locks, and this option must be connected
at time of installation.

REMOTE CAR FINDER

The Start button is also used to access the car finder mode. This
feature is particularly useful in a crowded parking lot where finding
your car may be difficult. To access the car finder mode, while
within range of your car, simply press and hold the button of your
transmitter for three seconds. The parking lights will begin to flash
making your vehicle more visible. The lights will stop automatically
after 30 seconds. If you wish to turn off the car finder mode prior
to the expiration of the 30 second timer, press and release button
of your transmitter one time.
PATENTED: www.voxxintl.com/company/patents
Model APS-422E
Owner's Manual
128-9348
1 of 4
