- Page 1 AKCP HSUPA 3G Modem Setup Manual Includes SMS alert setup instructions for securityProbe and AKCess Pro Server Compatible with all securityProbes shipped after 25th March 2014 Copyright © 2014, AKCess Pro Co., Ltd..
-
Page 2: Table Of Contents
HSUPA 3G Modem Setup Manual Table of Contents Introduction ......................3 Modem setup guide for securityProbe units ............4 Connecting the 3G modem to your securityProbe ..........6 Basic notification setup for securityProbe (SMS) ..........7 3G data connection settings for securityProbe ..........12 Connection mode .................. -
Page 3: Introduction

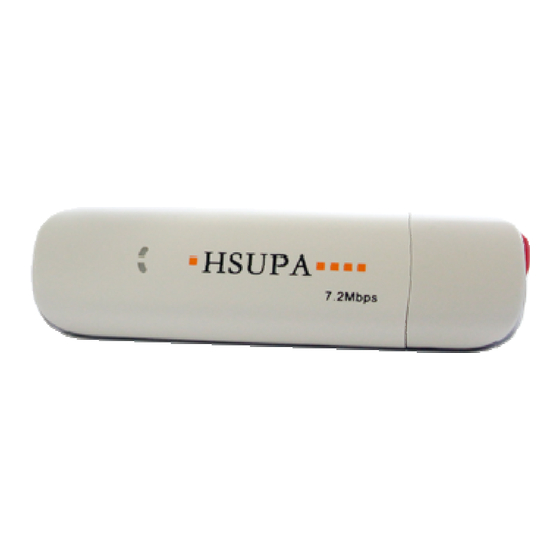

AC/DC adapter is required. The AKCP HSUPA 3G USB Modem is ready to use by simply connecting its USB interface to your securityProbe’s USB port. The HSUPA 3G USB Modem can also be connected to any PC or notebook having USB support. -
Page 4: Modem Setup Guide For Securityprobe Units
HSUPA 3G Modem Setup Manual Modem setup guide for securityProbe units What you’ll need: AKCP HSUPA 3G USB Modem Note: The modem has no External Antenna – it’s not recommended for use in areas with weak signal. To confirm compatibility in your country, and for a comprehensive listing of the GSM \ GPRS networks available and the frequencies that they use, visit http://www.mobileworldlive.com/maps/... - Page 5 Note: All securityProbe devices have a similar back view; just find the USB port located near the Eth 10/100 LAN interface. This is where you would connect the HSUPA 3G modem. Note 2: The modem only works with the securityProbe 5ES series with the iMX25 CPU.
-
Page 6: Connecting The 3G Modem To Your Securityprobe
HSUPA 3G Modem Setup Manual Connecting the 3G modem to your securityProbe Step 1: Connect the 3G modem to the securityProbe unit’s USB port, as shown in the picture above (it also works with a USB extender cable). It will be automatically detected by the securityProbe. -
Page 7: Basic Notification Setup For Securityprobe (Sms)
HSUPA 3G Modem Setup Manual Basic notification setup for securityProbe (SMS) Please note: the HSUPA 3G modem doesn’t support voice alert notifications. This tutorial provides you the information needed to setup the SMS notification feature. To get to the starting point of this tutorial: •... - Page 8 HSUPA 3G Modem Setup Manual In the next screen you will select the SMS action from the Select an Action Type drop down list as shown above, and then click the Next button. In the next screen you will name your action and add your mobile phone number, or your list of mobile phone numbers that your SMS alert will be sent to.
- Page 9 HSUPA 3G Modem Setup Manual After you have finished adding the mobile numbers to the call list click the “Next” button as shown above. In the next screen of the SMS action wizard will show the SMS message that will be sent. Or you can click on the “Customized”...
- Page 10 HSUPA 3G Modem Setup Manual In the screen above you will select the modem port from the drop down list. For the HSUPA 3G USB modem you will choose “USB Modem”. You should also note the wording “(Not Connected)” is hidden after the USB Modem. This means that the unit does detect the modem is connected to the USB port.
- Page 11 HSUPA 3G Modem Setup Manual On the next screen you can setup the Maximum Times to Resend which is 5. You can also set the Resend Intervals and the Resend on Server Timeout in case there was a problem connecting to the GSM service.
-
Page 12: Data Connection Settings For Securityprobe
HSUPA 3G Modem Setup Manual 3G data connection settings for securityProbe You can find the data connection settings under the Settings page, select Connectivity, and find Dial-Out Modem. Select Modem On Port as the USB Modem from the drop-down list, and enter the connection details, as given by your service provider. -
Page 13: Connection Mode
HSUPA 3G Modem Setup Manual You may select a different Connection Mode (PAP/GPRS/RAS). The most commonly used mode is GPRS Unsecured. Updated until firmware 404z & AKCess Pro Server 11.1.0 13 -... -
Page 14: Connection Method
HSUPA 3G Modem Setup Manual You may change the Connection Method as follows: • Never Dial Out (Use Ethernet only): the unit will never try to use the modem for sending out notifications. If you don’t have Ethernet connection, you should change this setting;... -
Page 15: Connection Type
HSUPA 3G Modem Setup Manual You may change the Connection Type: • On-Demand: the unit will initiate a connection only when it’s necessary for sending out the notifications. • Always On: the unit will keep the connection up, even when there is nothing to send. -
Page 16: Modem Setup Guide For Akcess Pro Server
HSUPA 3G Modem Setup Manual Modem setup guide for AKCess Pro Server What you’ll need: AKCP HSUPA 3G USB Modem Note: The modem has no External Antenna – it’s not recommended for use in areas with weak signal. To confirm compatibility in your country, and for a comprehensive listing of the GSM \ GPRS networks available and the frequencies that they use, visit http://www.mobileworldlive.com/maps/... - Page 17 HSUPA 3G Modem Setup Manual Free USB port Note: Front panel USB ports usually provide less power than the ones in the back. We advise you to connect the USB modem to one of the back ports of your machine, especially if you’re using a USB extender cable.
-
Page 18: Connecting The 3G Modem To Your Pc/Server
HSUPA 3G Modem Setup Manual Connecting the 3G modem to your PC/Server Step 1: Connect the 3G modem to the PC/Server’s free USB port, as shown in the picture above (it also works with a USB extender cable). It will be automatically detected by Windows, and show the setup program for the driver installation. -
Page 19: Modem Installation For Pc/Server
HSUPA 3G Modem Setup Manual 3G Modem installation for PC/Server Windows will detect the device connected to the USB port, and install it. There is a virtual CD drive on the modem, which contains the driver files. Let the autorun.exe start to begin the installation: Wait for the setup wizard to finish: Updated until firmware 404z &... - Page 20 HSUPA 3G Modem Setup Manual Updated until firmware 404z & AKCess Pro Server 11.1.0 20 -...
- Page 21 HSUPA 3G Modem Setup Manual The modem setup will install the necessary drivers for the connection: Updated until firmware 404z & AKCess Pro Server 11.1.0 21 -...
- Page 22 HSUPA 3G Modem Setup Manual After the setup completes, it will start the configuration program for the modem: You can also configure the modem’s 3G network settings with this utility. Updated until firmware 404z & AKCess Pro Server 11.1.0 22 -...
-
Page 23: Sim Card Pin Disabling Using The Modem's Configuration Program
In the Options menu, you’ll have the option to disable the SIM card’s PIN number, if you haven’t done so already. You must disable the PIN number to be able to use the modem with AKCP devices and the AKCessPro Server. -
Page 24: Basic Notification Setup For Akcess Pro Server (Sms)
HSUPA 3G Modem Setup Manual Basic notification setup for AKCess Pro Server (SMS) Please note: the HSUPA 3G modem doesn’t support voice alert notifications. This tutorial provides you the information needed to setup the SMS notification feature. To get to the starting point of this tutorial: •... - Page 25 HSUPA 3G Modem Setup Manual We create notifications on the Notifications page. To open the Notifications page, on the main navigation bar click the Notifications button. The Notifications tab will appear in the main window. There are 4 tabs under it, named “Notification Rules”, “Actions”, “Notification Logs”, and “Notification Analyzer”.
- Page 26 HSUPA 3G Modem Setup Manual First, we need to create a notification action and then create a notification rule to link the action to a sensor and status conditions. To create a notification Action, Click on the Actions tab under Notifications and click the ‘Create’...
- Page 27 HSUPA 3G Modem Setup Manual Enter an action name and enter at least one phone number in the Phone Number List. To add a number, enter the number in the ‘Phone Number’ field and click the ‘Add’ button. The number will then be added in the Phone Number List box.
- Page 28 HSUPA 3G Modem Setup Manual You can customize the SMS message to be sent. The From $[IP] is an example of a macro description named $[IP]. In the actual sms message, the value of it will depend on the IP address of the host sending the notification.
-
Page 29: Finding The Used Com Port Of Your Modem
HSUPA 3G Modem Setup Manual For this example, the 3G modem is attached to port COM6. We select COM6 as the Mobile Phone Port. If you are unsure what Port your modem is connected, browse your Device Manager under Modems. Right click on your device and click on Properties. You can see the Port and maximum port speed on the Modem tab. - Page 30 HSUPA 3G Modem Setup Manual We will the leave the default Port Speed ‘Auto’. “Timeout” is the time lapsed in seconds that the system has no response from the modem device. Click ‘Next’ to continue. Updated until firmware 404z & AKCess Pro Server 11.1.0...
- Page 31 HSUPA 3G Modem Setup Manual “Number of Times to Repeat” is the number of times the SMS message will be sent. “Repeat Intervals” is the time interval in seconds between the resent SMS messages. In this example, we only want to receive one SMS message so we will set the “Number of Times to Repeat”...
- Page 32 HSUPA 3G Modem Setup Manual Your SMS action named ‘SMS’ is created and displayed in the Action list. You can test your newly created notification action by selecting the action and clicking ‘Test Action’ to make sure it does what you need it to do. You can click the ‘Edit’ button if you need to reconfigure the action.
- Page 33 HSUPA 3G Modem Setup Manual Select a sensor, the status requirements and the notification actions. If the desired action does not exist yet, you can create an action from here by clicking the ‘Create Action’ button. In the example here, we set up a notification rule where an SMS notification to the administrator will be sent out when the ‘Temperature Port 1’...
- Page 34 HSUPA 3G Modem Setup Manual You can set up the notification rule wherein it will only execute when a certain status will persist in the specified continuous time (in seconds). This feature allows us to filter the real threats from false alarms because of possible fluctuations that can occur in the sensor values but poses no real threat.
- Page 35 HSUPA 3G Modem Setup Manual You have the option to enable the calendar option; else the notification will always be active. Updated until firmware 404z & AKCess Pro Server 11.1.0 35 -...
- Page 36 HSUPA 3G Modem Setup Manual After setting the calendar, you have the option to include an escalation that will trigger after a given time after the initial notification. If you wish, you may add it later from the Notification Rules list page.
- Page 37 HSUPA 3G Modem Setup Manual This concludes the AKCP HSUPA 3G Modem Setup Manual. Please contact support@akcp.com if you have any further technical questions or problems setting up your modem or your alerts. Thanks for Choosing AKCess Pro! Updated until firmware 404z & AKCess Pro Server 11.1.0...
