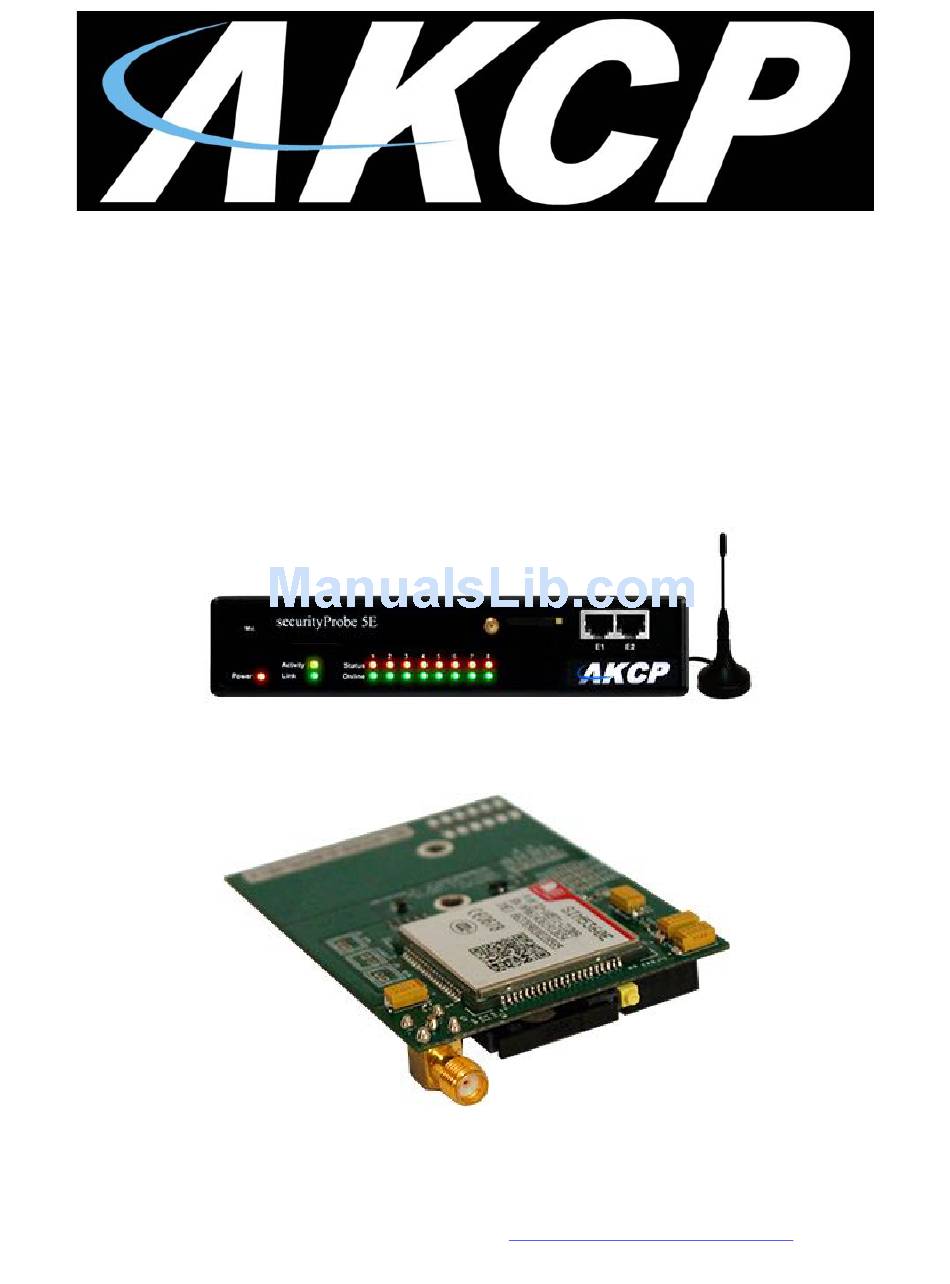

- Page 1 SEC Internal Modem Manual Copyright © 2015, AKCess Pro Provided by official AKCP-Distributor Didactum https://www.didactum-security.com/en/...
-
Page 2: Table Of Contents
Table of Contents Introduction ........................3 Dial-Out Modem configuration on the Web UI ..............4 SEC Web UI changes for each action ................5 A) Telephone Call action configuration ..............5 a) Text-to-speech action ................5 b) WAV file playback action (unsupported) ..........6 B) SMS action configuration .................. -
Page 3: Introduction
However we will point out the differences for each action, where it’s required. The front panel of the SEC with the Internal Modem includes a slot for the SIM card with its yellow eject button, and an antenna jack for the attacheable external antenna: Note: There is no auto-detection for the modem module;... -
Page 4: Dial-Out Modem Configuration On The Web Ui
SEC Internal Modem Manual Dial-Out Modem configuration on the Web UI You can find the Internal Modem listed in the Dial-Out Modem configuration’s Modem On Port list. As we noted in the introduction part, all instructions for setting up the voice call, SMS text notifications and the VPN client are the same as for the other modem types;... -
Page 5: Sec Web Ui Changes For Each Action
In the following section, we’ll show you the changes for each action type where it’s necessary, and provide additional information. Note: No SEC modem can be configured from AKCess Pro Server (APS); only modems that can be connected directly to the computer running APS are configurable within APS, for example the 3G USB modem. -
Page 6: B) Wav File Playback Action (Unsupported)
When this happens, the telephone call notification will have a status of successfully completed, regardless of when the message actually reach its destination from the voice mail. However this could only happen if the mobile network’s no-answer timeout is less than the SEC predefined timeout, which is 60 seconds. -
Page 7: B) Sms Action Configuration
SEC Internal Modem Manual B) SMS action configuration The changes for this type of action is just for choosing the Mobile Phone Port and Initialization String. Choose Internal Modem from the drop-down list for both: Note: After you select the Internal Modem for the Initialization String, you don’t need to enter it manually, it’s fixed in the firmware (as with the other modems in the drop-down list). -
Page 8: Sim Card Information
It is always a good idea to test the SIM card in a mobile phone to ensure the SIM is working properly before installing it in the modem. The SEC Internal Modem’s SIM socket only accepts standard mini-size SIM cards. Smaller sizes are supported with an adapter (available separately) that converts the Micro and Nano SIM sizes to Mini. -
Page 9: Placing The Sim Card In The Internal Modem
First you’ll have to eject the holder tray from the SIM card holder by pressing in the yellow button on the front panel of the SEC unit: Then you need to place the SIM card in the holder tray in the correct way (note the slanted edge on the SIM card). -
Page 10: External Antenna And Specifications
The supplied external antenna can be easily attached to the modem’s antenna jack (SMA type) on the SEC front panel, as shown here: It will give the modem increased signal strength in areas with low reception. The cable length allows the best placement of the antenna itself, for the highest signal level. -
Page 11: Internal Modem Specifications
SEC Internal Modem Manual Internal Modem Specifications General Modem chipset type: SIMCom SIM5360E • Dual-Band UMTS/HSPA+ 900/2100MHz • Quad-Band GSM/GPRS/EDGE 900/1800MHz Specifications for SMS • Point to point MO and MT • Text and PDU mode Specifications for Data transfer •... - Page 12 SEC Internal Modem Manual Please contact support@akcp.com if you have any further technical questions or problems Thanks for Choosing AKCess Pro! Provided by official AKCP-Distributor Didactum https://www.didactum-security.com/en/ - 12 -...
