Page 1: User Guide
DVI Ranger 500 User Guide Featuring ExtremeDVI™ Technology... - Page 2 ©2004 Icron Technologies Corporation. All rights reserved. Icron Technologies Corporation, the Icron Technologies Corporation logo, and the Icron Technologies Corporation products referred to herein are either the trademarks or the registered trademarks of Icron Technologies Corporation. All other trademarks are property of their respective owners. Icron Technologies Corporation assumes no responsibility for errors that may appear in this manual.
-
Page 3: Table Of Contents
User Guide Contents Introduction....................1 DVI Ranger Product Contents ..............1 About the DVI Ranger ................2 Before You Begin ..................6 Installing the TX unit ................. 6 Installing the RX unit................. 6 Connecting the TX unit to the RX unit ............7 Completing the Installation ................ - Page 4 DVI Ranger 500 Notes...
-
Page 5: Introduction
User Guide Introduction This manual will help you install the DVI Ranger model 500. The instructions in this guide assume a general knowledge of computer installation procedures, familiarity with cabling requirements, and some understanding of DVI devices. : Notes give additional information that could make installation NOTE easier. -
Page 6: About The Dvi Ranger

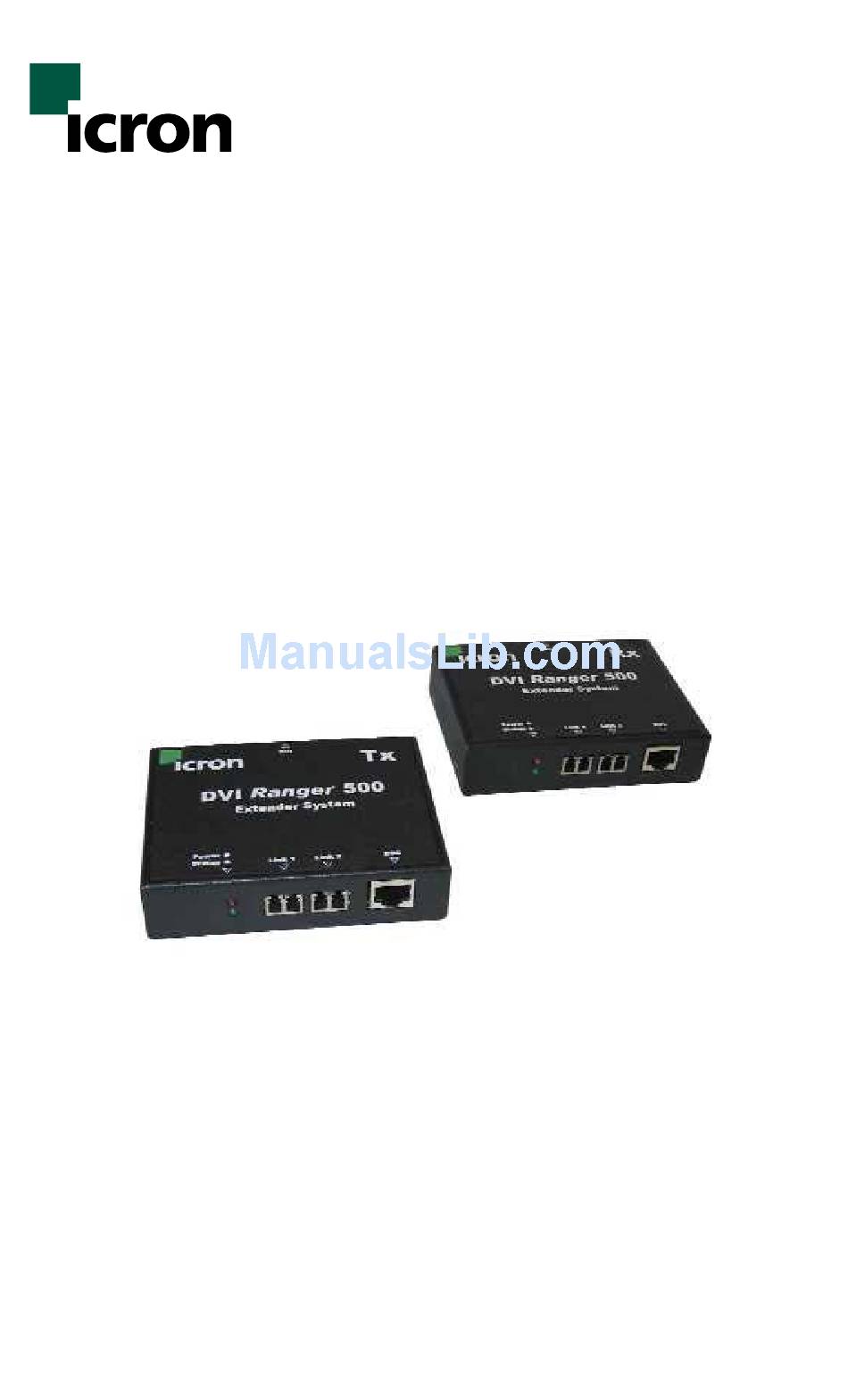

DVI Ranger 500 About the DVI Ranger The DVI Ranger brings the benefits of digital transmission to extended range video applications. With the DVI Ranger, any DVI-capable source of video information can be connected to a DVI display up to 100 metres away. (In special circumstances, this can even be extended to 500 metres.) - Page 7 DVI-D receptacle for connection to computer or other video source Power connector Receptacle for connection of 12V DC power adapter : The power adapter for the DVI Ranger 500 can be connected to NOTE either the TX unit or to the RX unit, as convenient.
- Page 8 DVI Ranger 500 The RX unit The RX unit connects to the video display using a conventional DVI cable. Depending on your needs, it also connects to a power outlet through an AC power adapter. The physical structure of the RX unit is identical to that of the TX unit shown previously.
- Page 9 User Guide DDC. This EDID/DDC information is obtained from the display by the RX unit and transmitted to the TX unit over a Category 5 UTP cable. The information is then relayed to the computer over the DVI cable. • In certain applications, the EDID/DDC function is not required.
-
Page 10: Before You Begin
DVI Ranger 500 Before You Begin Before you can install the DVI Ranger, you need to prepare your site. 1. Determine where the computer is to be located and set up the computer. 2. Determine where you want to locate the display 3. -
Page 11: Connecting The Tx Unit To The Rx Unit
User Guide Connecting the TX unit to the RX unit : To ensure proper operation, we recommend that only Category 5 or NOTE better, Unshielded Twisted Pair (UTP) cabling be used to connect the TX unit to the RX unit. The UTP cabling must have a straight- through conductor configuration with no crossovers, and must be terminated with 8-conductor RJ45 connectors at both ends. -
Page 12: Completing The Installation
DVI Ranger 500 6. Plug one end of the fourth duplex multimode patch cord (not included) into the Link 2 port on the RX unit. Plug the other end of this cable into the second LC receptacle on the adjacent information outlet. -
Page 13: Troubleshooting
User Guide Troubleshooting The following table provides troubleshooting help. The topics are arranged in the order in which they should be executed in most situations. If you are unable to resolve the problem after following these instructions, please contact technical support for further assistance (see page 13). Symptoms/Cause Remedy All LEDs on TX unit and... - Page 14 DVI Ranger 500 Symptoms/Cause Remedy Display screen is black 1. Check that power is applied to the display. 2. Check that the display is connected to the RX Cause: unit with a DVI cable. The display is not 3. Ensure that each port on the TX unit is...
-
Page 15: Specifications
User Guide Specifications Range (over Category 100 meters (330 ft) 5 UTP cable) Range (over multimode 500 meters (1650 ft) fiber) Fiber cable 62.5/125 µm or 50/125 µm multimode compatibility DVI cable 2 meters (6.6 ft) Maximum resolution UXGA 1600 x 1200 at 60 Hz refresh rate DVI bandwidth 1.65 Gb/s per channel Power adapter... -
Page 16: Limited Hardware Warranty
Hardware Remedies Icron Technologies Corporation’s entire liability and the Licensee’s exclusive remedy for any breach of warranty, shall be, at Icron Technologies Corporation’s option, either (a) return of the price paid or (b) repair or replacement of hardware, which will be warranted for the remainder of the original warranty period or 30 days, whichever is longer. -
Page 17: Obtaining Warranty Service
Icron Technologies Corporation. We recommend that you insure it or send it by a method that provides for tracking of the package. The repaired or replaced item will be shipped to you, at Icron Technologies Corporation’s expense, not later than thirty days after Icron Technologies Corporation receives the defective product. - Page 18 DVI Ranger 500 Notes...
- Page 19 User Guide Notes...
- Page 20 Icron Technologies Corporation 4664 Lougheed Highway, Suite 275 Burnaby, BC, V5C 5T5 Canada Tel: 604-638-3920 Fax: 604-638-3930 www.icron.com 90-00134-A01...
