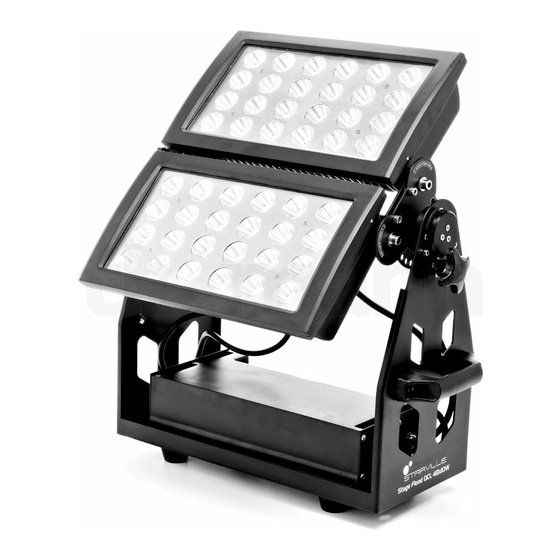

Stairville Stage Flood QCL 48x10W User Manual

Led floodlight
Hide thumbs Also See for Stage Flood QCL 48x10W:
Table of Contents

Advertisement

Quick Links

Stage Flood QCL
48x10W
LED floodlight
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stage Flood QCL 48x10W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stairville Stage Flood QCL 48x10W

Summary of Contents for Stairville Stage Flood QCL 48x10W

  • Page 1 Stage Flood QCL 48x10W LED floodlight user manual...
  • Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 06.05.2013...

  • Page 3: Table Of Contents

    7.4 Functions in 3-channel DMX mode (HSV)................35 7.5 Functions in 6-channel DMX mode (Arc.1)................35 7.6 Functions in 7-channel DMX mode (Ar1.d)................36 7.7 Functions in 8-channel DMX mode (Arc.2)................38 7.8 Functions in 9-channel DMX mode (Ac2.d)................39 Stage Flood QCL 48x10W...
  • Page 4 Table of contents 7.9 Functions in 10-channel DMX mode (Ac2.s)................40 7.10 Functions in 15-channel DMX mode (STAGE)..............41 Technical specifications........................48 Troubleshooting............................49 Protecting the environment......................51 LED floodlight...

  • Page 5: General Notes

    Our products are subject to a process of continuous development. We therefore reserve the right to make changes without notice. Symbols and signal words This section provides an overview of the symbols and signal words used in this user manual. Stage Flood QCL 48x10W...
  • Page 6 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a possible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 7 General notes Warning signs Type of danger Warning – hot surface. Warning – suspended load. Warning – danger zone. Stage Flood QCL 48x10W...

  • Page 8: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used as an electronic illumination effect using LED technics. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 9 Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. WARNING! Eye damage caused by high light intensity Never look directly into the light source. Stage Flood QCL 48x10W...
  • Page 10 Safety instructions WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. WARNING! Risk of burns at the surface and inside of the device The surface and the inner parts of the device can become very hot during opera‐ tion.
  • Page 11 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. Stage Flood QCL 48x10W...

  • Page 12: Features

    Features Features Special features of the device: 48 × QCL LEDs (RGBW) Stand-alone and DMX mode operation (7 different modes) Easy operation via display and buttons on the unit 10 preprogrammed automatic shows 10 preprogrammed automatic programmes, editable Master / Slave mode Rugged aluminium housing Protection class IP65 allows outdoor operation LED floodlight...

  • Page 13: Installation

    Risk of injury caused by falling objects Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. Stage Flood QCL 48x10W...
  • Page 14 Installation NOTICE! Risk of overheating Always ensure sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐...
  • Page 15 The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) Stage Flood QCL 48x10W...

  • Page 16: Starting Up

    Starting up Starting up Establish all connections as long as the unit is switched off. Use the shortest possible high- quality cables for all connections. LED floodlight...
  • Page 17 Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). Stage Flood QCL 48x10W...
  • Page 18 Starting up According to EIA-485, a maximum of 32 devices may be connected in series. The length of the data connection should not exceed 500 m. A further limitation arises from the supply voltage (see below). Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show.

  • Page 19: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Stage Flood QCL 48x10W...
  • Page 20 Connections and operating elements DMX IN DMX input. POWER IN Incoming mains power cable. [ENTER] button Selects an option of the respective operating mode, confirms the set value. [MENU] button Activates the main menu and toggles between menu items. Closes an open submenu. Display.
  • Page 21 Connections and operating elements DMX OUT DMX output. POWER OUT Outgoing mains power cable. Carrying handles. Locking screws. Bracket for hanging. Remove this bracket if you want to place the device on the floor. Stage Flood QCL 48x10W...

  • Page 22: Operating

    Operating Operating 7.1 Starting the device Connect the unit to the power grid to start the operation. 7.2 Main menu Press [MENU] to activate the main menu and select an operating mode. Use [ENTER] to select further options. Use [UP] and [DOWN] to change the respectively displayed value. When the display shows the desired value, press [ENTER].
  • Page 23 ‘000’ and ‘255’ W: intensity white, value range is between ‘000’ and ‘255’ S: strobe effect, value range is between ‘00’ and ‘20’ (0 … 20 Hz) Confirm each entry with [ENTER]. Stage Flood QCL 48x10W...
  • Page 24 Operating Operating mode ‘Preprog‐ This operating mode can only be activated when the unit is working alone or as Master in a rammed automatic shows’ Master / Slave combination. This setting is only relevant when the unit is not DMX-controlled. Press [MENU] to enter the main menu and then [UP] or [DOWN] until the display shows ‘AUTO’...
  • Page 25 S: strobe effect, value range is between ‘00’ and ‘20’ (0 … 20 Hz) t: speed, value range is between ‘000’ and ‘255’ F: fade speed, value range is between ‘000’ and ‘255’ Confirm each entry with [ENTER]. Stage Flood QCL 48x10W...
  • Page 26 Operating DMX mode This setting is only relevant when the unit is DMX-controlled. Press [MENU] to enter the main menu and then [UP] or [DOWN] until the display shows ‘RUN’ . Press [ENTER]. If applicable, use [UP] and [DOWN] to select ‘dMX’ and press [ENTER]. LED floodlight...
  • Page 27 Make sure that this number matches the configuration of your DMX controller. The following table shows the highest possible first DMX address for the various DMX modes. Mode Highest possible first DMX address 3-channel 6-channel 7-channel 8-channel 9-channel Stage Flood QCL 48x10W...
  • Page 28 Operating Mode Highest possible first DMX address 10-channel 15-channel DMX operation mode selection Press [MENU] to enter the main menu and then [UP] or [DOWN] until the display shows ‘Personality’ . Press [ENTER]. With [UP] and [DOWN] you can now select one of the following DMX operation modes: ‘STAGE’...
  • Page 29 This setting is only relevant if the unit operates as Slave in a Master / Slave configuration, and is not DMX-controlled. Press [MENU] to enter the main menu and then [UP] or [DOWN] until the display shows ‘RUN’ . Press [ENTER]. If applicable, use [UP] and [DOWN] to select ‘SLA’ and press [ENTER]. Stage Flood QCL 48x10W...
  • Page 30 Operating Settings These submenus are used to adjust the system settings. Press [MENU] to enter the main menu and then [UP] or [DOWN] until the display shows ‘SET’ . Press [ENTER]. Select one of the following submenus: ‘UPLD’ : This one starts the upload (copying from the Master unit into the Slave units) of the pre‐ programmed automatic programmes.
  • Page 31 R: intensity red, value range is between ‘000’ and ‘255’ G: intensity green, value range is between ‘000’ and ‘255’ b: intensity blue, value range is between ‘000’ and ‘255’ W: intensity white, value range is between ‘000’ and ‘255’ Stage Flood QCL 48x10W...
  • Page 32 Operating Defining different values for Press [MENU] to enter the main menu and then [UP] or [DOWN] until the display shows ‘CAL2’ . ‘White’ Press [ENTER]. Die display shows ‘REGW ’ . Press [ENTER]. You can change the following values: R: intensity red, value range is between ‘000’...

  • Page 33: Menu Overview

    Operating 7.3 Menu overview Stage Flood QCL 48x10W...
  • Page 34 Operating LED floodlight...

  • Page 35: Functions In 3-Channel Dmx Mode (Hsv)

    7.5 Functions in 6-channel DMX mode (Arc.1) Channel Value Function 0…255 Intensity red (0 % to 100 %), panel 1 0…255 Intensity green (0 % to 100 %), panel 1 0…255 Intensity blue (0 % to 100 %), panel 1 Stage Flood QCL 48x10W...

  • Page 36: Functions In 7-Channel Dmx Mode (Ar1.D)

    Operating Channel Value Function 0…255 Intensity red (0 % to 100 %), panel 2 0…255 Intensity green (0 % to 100 %), panel 2 0…255 Intensity blue (0 % to 100 %), panel 2 7.6 Functions in 7-channel DMX mode (Ar1.d) Channel Value Function...
  • Page 37 Operating Channel Value Function 0…255 Intensity green (0 % to 100 %), panel 2 0…255 Intensity blue (0 % to 100 %), panel 2 Stage Flood QCL 48x10W...

  • Page 38: Functions In 8-Channel Dmx Mode (Arc.2)

    Operating 7.7 Functions in 8-channel DMX mode (Arc.2) Channel Value Function 0…255 Intensity red (0 % to 100 %), panel 1 0…255 Intensity green (0 % to 100 %), panel 1 0…255 Intensity blue (0 % to 100 %), panel 1 0…255 Intensity white (0 % to 100 %), panel 1 0…255...

  • Page 39: Functions In 9-Channel Dmx Mode (Ac2.D)

    Intensity red (0 % to 100 %), panel 2 0…255 Intensity green (0 % to 100 %), panel 2 0…255 Intensity blue (0 % to 100 %), panel 2 0…255 Intensity white (0 % to 100 %), panel 2 Stage Flood QCL 48x10W...

  • Page 40: Functions In 10-Channel Dmx Mode (Ac2.S)

    Operating 7.9 Functions in 10-channel DMX mode (Ac2.s) Channel Value Function 0…255 Dimmer (0 % to 100 %) 0…255 Intensity red (0 % to 100 %), panel 1 0…255 Intensity green (0 % to 100 %), panel 1 0…255 Intensity blue (0 % to 100 %), panel 1 0…255 Intensity white (0 % to 100 %), panel 1 0…255...

  • Page 41: Functions In 15-Channel Dmx Mode (Stage)

    Intensity white (0 % to 100 %), panel 1 0…255 Intensity red (0 % to 100 %), panel 2 0…255 Intensity green (0 % to 100 %), panel 2 0…255 Intensity blue (0 % to 100 %), panel 2 Stage Flood QCL 48x10W...
  • Page 42 Operating Channel Value Function 0…255 Intensity white (0 % to 100 %), panel 2 0…10 No function 11…20 Red 100 %, intensity green (0 % to 100 % fade-in; if channel 11 = 0, no change), blue 0 %, white 0 % 21…30 Intensity red (0 % to 100 % fade-in;...
  • Page 43 Colour transitions, speed is controlled via channel 11 161…170 Colour transitions, speed is controlled via channel 11 171…180 Colour transitions, speed is controlled via channel 11 181…190 Colour transitions, speed is controlled via channel 11 191…200 RGBW Stage Flood QCL 48x10W...
  • Page 44 Operating Channel Value Function 201…205 White 1 206…210 White 2 211…215 White 3 216…220 White 4 221…225 White 5 226…230 White 6 231…235 White 7 236…240 White 8 241…245 White 9 246…250 White 10 251…255 White 11 0…255 If channel 10 (11…90) fade-in speed of fixed colour; if channel 10 (91…190) speed of colour transitions LED floodlight...
  • Page 45 Preprogrammed automatic show 3 40…49 Preprogrammed automatic show 4 50…59 Preprogrammed automatic show 5 60…69 Preprogrammed automatic show 6 70…79 Preprogrammed automatic show 7 80…89 Preprogrammed automatic show 8 90…99 Preprogrammed automatic show 9 100…109 Preprogrammed automatic show 10 Stage Flood QCL 48x10W...
  • Page 46 Operating Channel Value Function 110…255 No function 0…255 Speed, if preprogrammed automatic shows are enabled (channel 12, values 10…109) 0…49 Dimmer is off, changes of dimmer and RGBW are done linearly 50…99 Dimmer speed 1 100…149 Dimmer speed 2 150…199 Dimmer speed 3 200…255 Dimmer speed 4...
  • Page 47 Operating Channel Value Function ID21 ID22 ID66 Stage Flood QCL 48x10W...

  • Page 48: Technical Specifications

    Technical specifications Technical specifications Number of DMX channels 3, 6, 7, 8, 9, 10, 15 Illuminant 48 × 10 W LEDs Operating supply voltage AC 230 V , 50 Hz / AC 110 V , 60 Hz Power consumption 492 W Protection class IP65 Dimensions (L ×...

  • Page 49: Troubleshooting

    1. Check the DMX ports and cables for proper connec‐ troller. tion. 2. Try using another DMX controller. 3. Check to see if the DMX cables run near or alongside to high voltage cables that may cause damage or inter‐ ference to DMX interface circuits. Stage Flood QCL 48x10W...
  • Page 50 Troubleshooting If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. LED floodlight...

  • Page 51: Protecting The Environment

    Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Stage Flood QCL 48x10W...
  • Page 52 Notes LED floodlight...
  • Page 53 Notes Stage Flood QCL 48x10W...
  • Page 54 Notes LED floodlight...
  • Page 56 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
