MANUAL
CONGRATULATIONS
To the purchase of your new professional switch mode battery charger. This charger is
included in a series of professional chargers from CTEK SWEDEN AB and represents the
latest technology in battery charging. The LITHIUM XS charger model is designed for
Lithium-ion batteries using LiFePO
technology only. Please check with the battery manufac-
4
turer for details. Do not use the LITHIUM XS charger for any other battery technology.

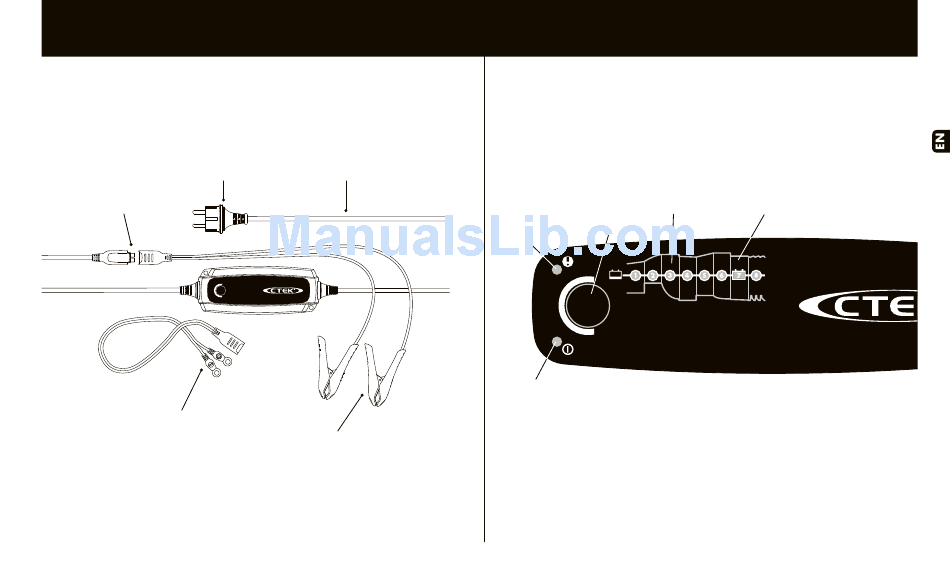

SUPPLY PLUG*
CTEK COMFORT CONNECT
CHARGE CABLE
CTEK COMFORT CONNECT – eyelet M6
* Supply plugs may differ to suit your wall socket.
MAINS CABLE
CTEK COMFORT CONNECT – clamp
HOW TO CHARGE
1. Connect the charger to the battery.
2. Connect the charger to the wall socket.
3. Follow the 8-step display through the charging process.
The battery is ready to start the engine when STEP 3 is lit.
The battery is fully charged when STEP 7 is lit.
4. Stop charging at any time by disconnecting the mains cable from the wall socket.
READY TO USE
RESET-BUTTON
ERROR LAMP
RESET
POWER LAMP
BATTERIES WITH "UNDER VOLTAGE PROTECTION"
Some Lithium-ion batteries have an on-board UVP (under voltage protection) that
disconnects the battery to avoid it becoming too deeply discharged. This prohibits the
CTEK charger from detecting that there's a battery connected. To bypass this, the bat-
tery charger needs to open the UVP. By pressing the RESET-button for 10 seconds, the
charger opens the UVP. During this process, the charging STEP 7 is lit. Once the UVP has
been opened and the battery is ready to be charged, the charger automatically starts the
charging cycle.
FULLY CHARGED
EN • 3
LiF
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1081 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CTEK 1081

Summary of Contents for CTEK 1081

  • Page 1 To the purchase of your new professional switch mode battery charger. This charger is 1. Connect the charger to the battery. included in a series of professional chargers from CTEK SWEDEN AB and represents the 2. Connect the charger to the wall socket.

  • Page 2: Error Lamp

    ERROR LAMP CONNECT AND DISCONNECT THE CHARGER TO A BATTERY If the error lamp is lit, check the following: INFO If the battery clamps are incorrectly 1. Is the chargers positive lead connected to the battery´s connected, the reverse polarity pro- positive pole? tection will ensure that the battery 2.

  • Page 3: Charging Program

    CHARGING PROGRAM ACCEPT BULK ABSORPTION ANALYSE COMPLETION MAXIMIZATION FLOAT PULSE 5A until 11.0V Increasing voltage to Declining current Checks if voltage 13.6V 13.4V–13.8V 13.8V 13.8V drops to 12V 1.5A 14.4V 5.0–1.0A 10 days Charge cycle restarts Limit: Max 30s Max 10h Max 30h 3minutes Max 2h...

  • Page 4: Technical Specifications

    High charger. voltage ripple could harm other equipment that is connected to the battery. CTEK battery • Connection to the mains supply must be in accordance with the national regulations chargers produce very clean voltage and current with low ripple.

  • Page 5: Limited Warranty

    Removing or damaging the seal will void the war- EP1483817 pending RCD 321216 CTM 1025831 ranty. CTEK SWEDEN AB makes no warranty other than this limited warranty and is not SE524203 RCD 000911839 CTM 405811 liable for any other costs other than those mentioned above, i.e.
  • Page 6 8 • EN...
